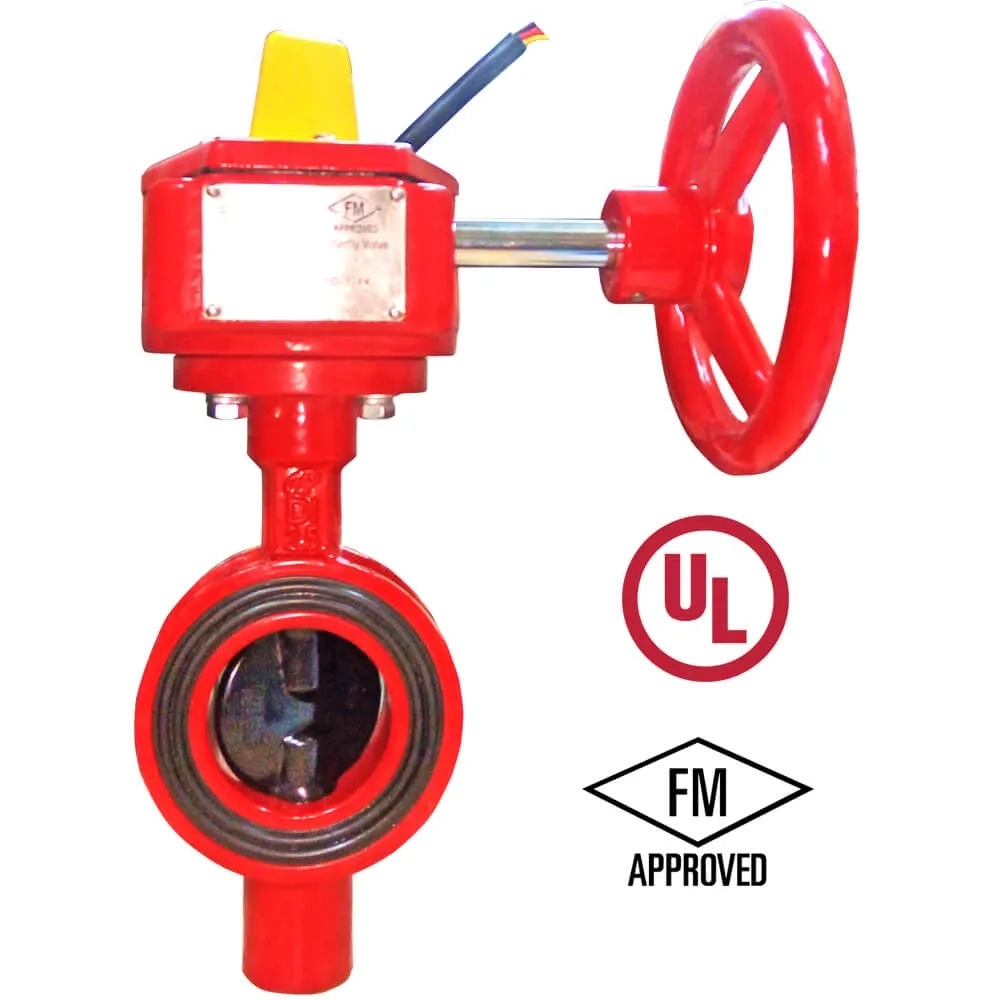

Lehry Butterfly Valve With Tamper Switch Wafer Type 300Psig

LEHRY FM Approved Wafer Type Butterfly Valves are made to the highest quality standards in the industrial applications. These Valves can be integrated with a consistent range to create complet flow control packages. Versatile ranges of resilent seated quarter turn butterfly valves are available in various configuration and materials to match critical applications.

Approved : Lehry Make FM

Operated : Gear Operated

Body : Ductile Iron

Disc : Ductile Iron + EPDM

Shaft Seal : EPDM

Stem Bushing : PTFE

Gear Box : DI

Epoxy Coated Colour : RAL3000

Ends. : Wafer Type

Max. Working Pressure Rating : 20 , With UL/FM Tamper Switch

Pressure : PN 20

Temperature : -20 Deg C to 80 Deg C

Media : Water

Type : Isolation Valve

Size : 50mm – 300mm

End Connection : Wafer Type to suit ANSI B 16.1 (150#)

Seat : EPDM

UL/FM LIV-BFV-DI-DFM-001

Application :

Water Supply of Fire Fighting

General Circuit Water Industries

Refer Catalogue for more information
