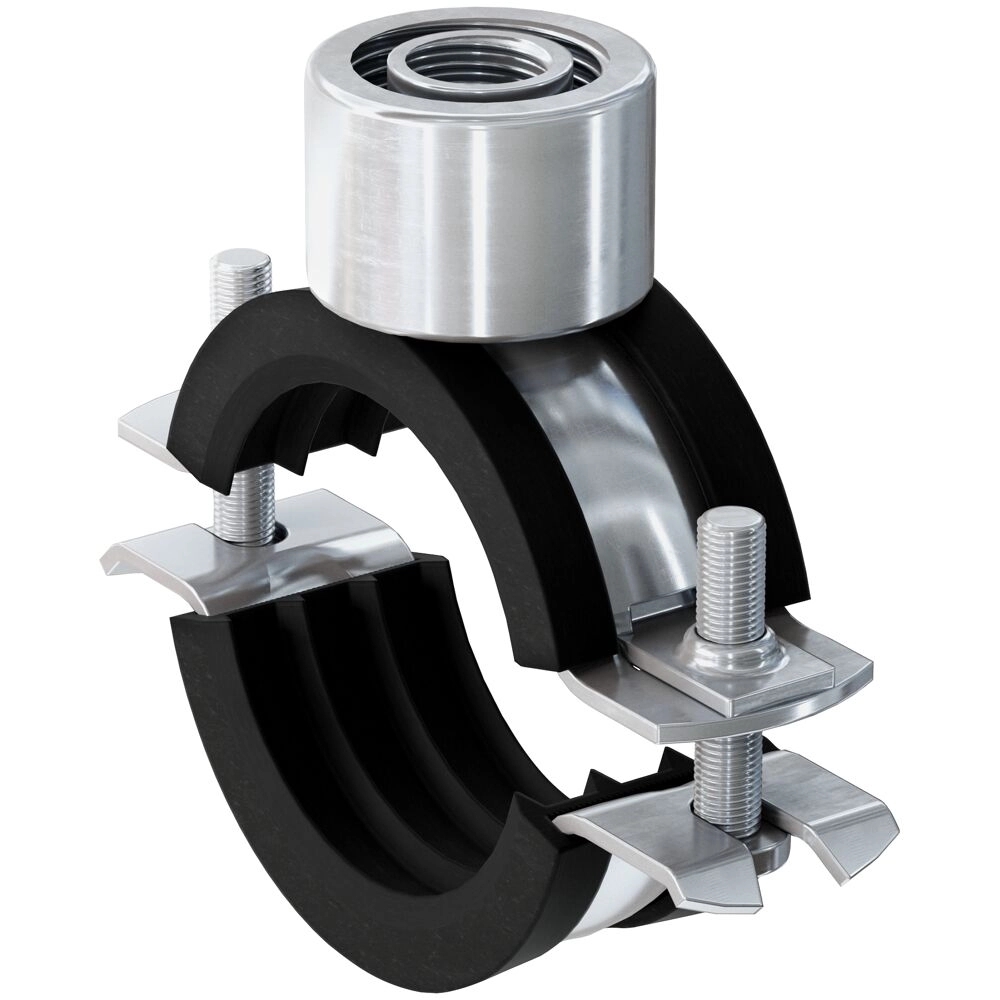

Pipe Clamp FRS Triple

The fischer pipe clamp FRS Triple is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a triple M8/M10 and ½" thread. The rapid-locking mechanism allows for a quick and easy installation. The two-screw version guarantees optimised adjustment in line with the outer diameter of the pipe. Together with the triple connecting thread, this increases flexibility.The fischer FRS is suitable for applications in the temperature range from -50 °C to +100°C.

Advantages

The connecting nut with combination thread M8/M10/½” allows for optimised mounting positioning.

The rapid-locking mechanism allows for fast and time-saving installation.

The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe.

The two screws allow for ideal adaptation to suit the outer pipe diameter.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111

Zinc plating: electro zinc-plated

Connecting nut: resistance welded, M8/M10/½"

Locking screw: flat head screw with combination recessed head

Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free

Sound insulation: for DIN 4109

Temperature range: -50 °C to +110 °C

Hardness: 45 ± 5° Shore A

Fire behaviour: DIN 4102: Class B2

Applications

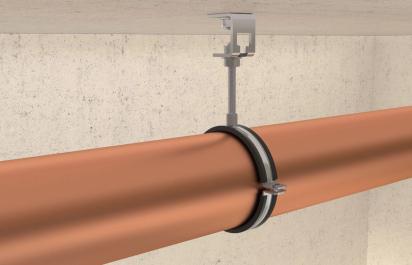

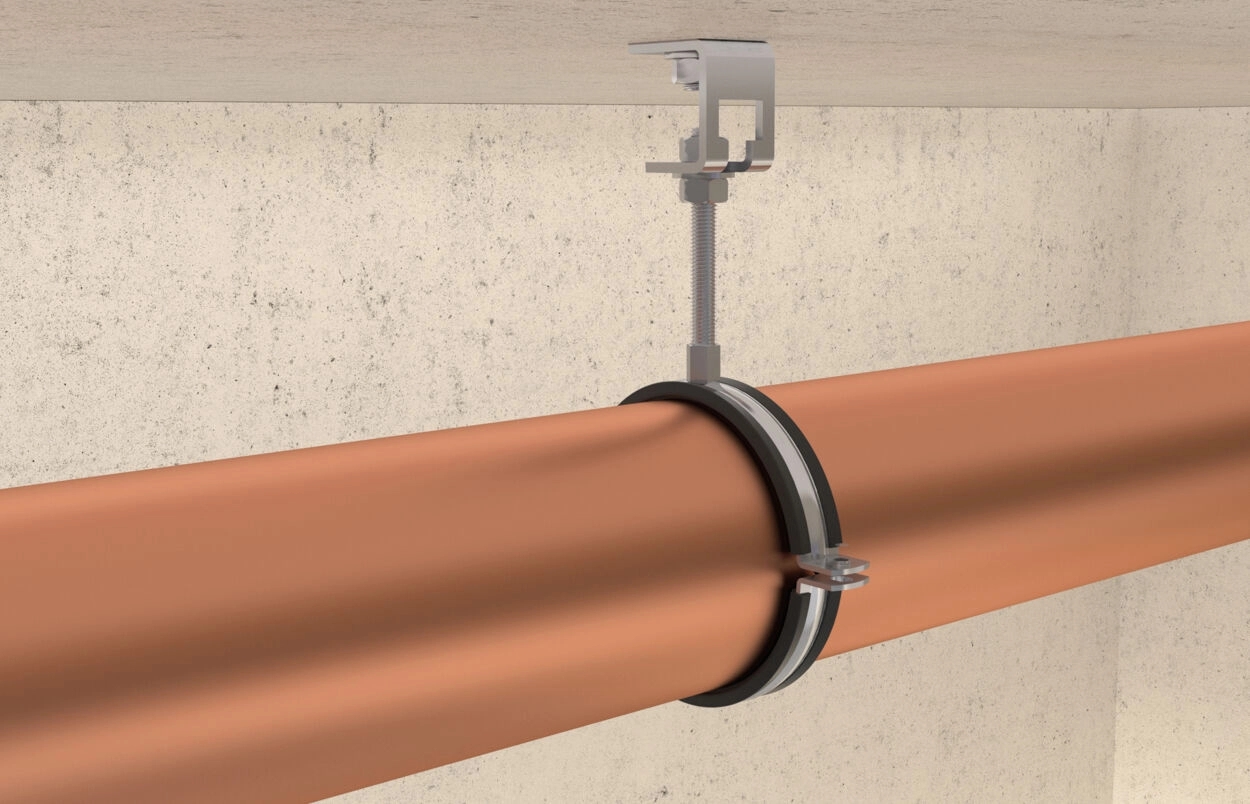

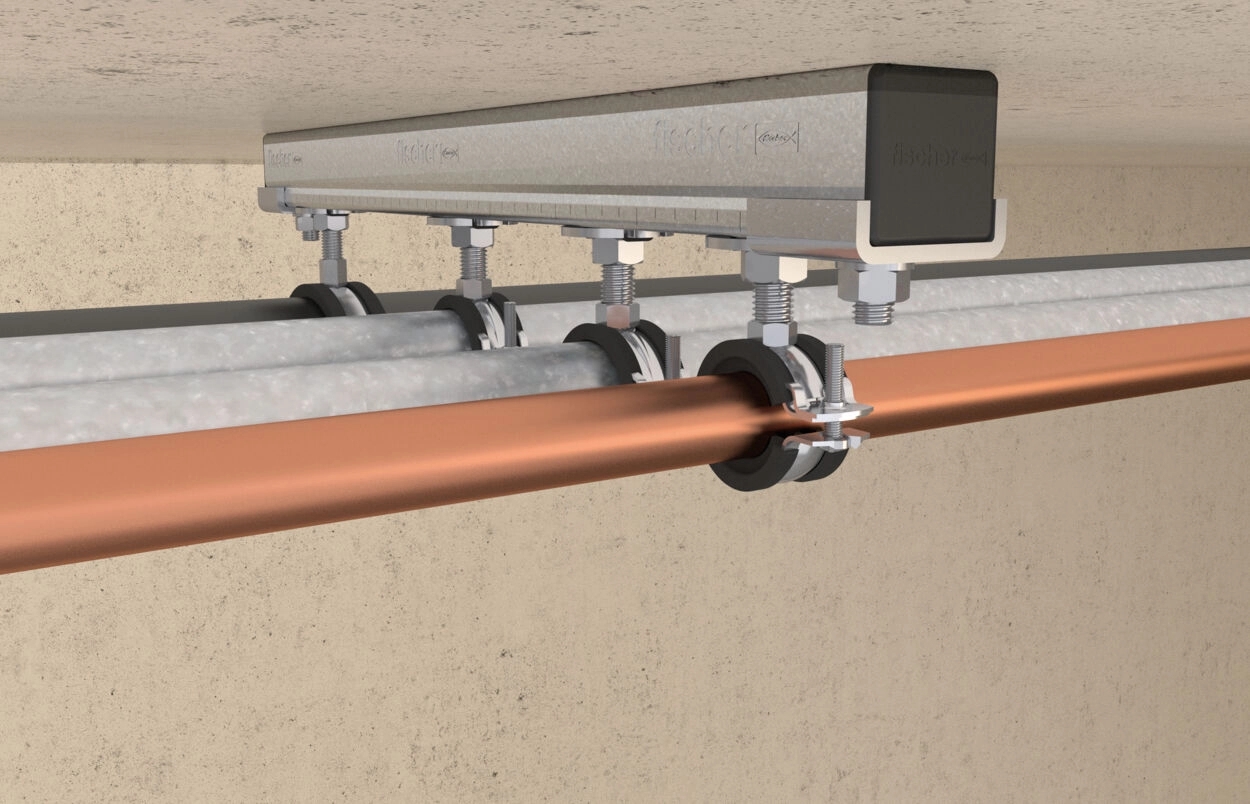

For simple and easy fixing of pipelines with threaded rods or hanger bolts.

For use in dry interior areas.
