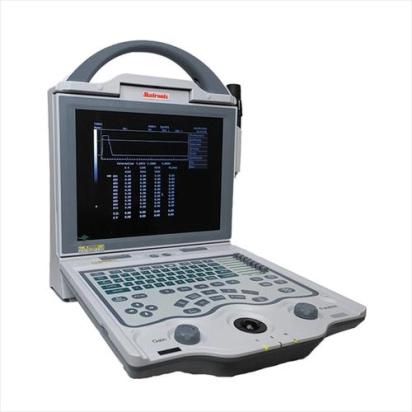

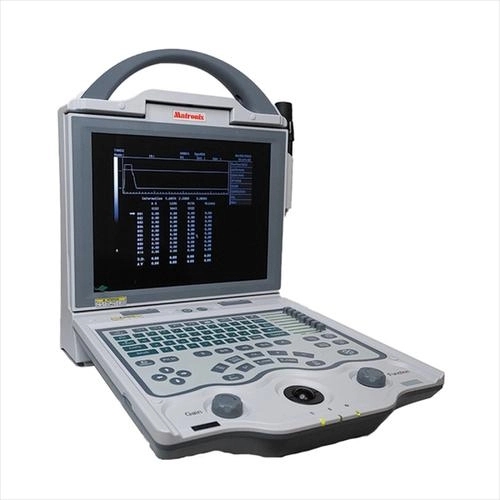

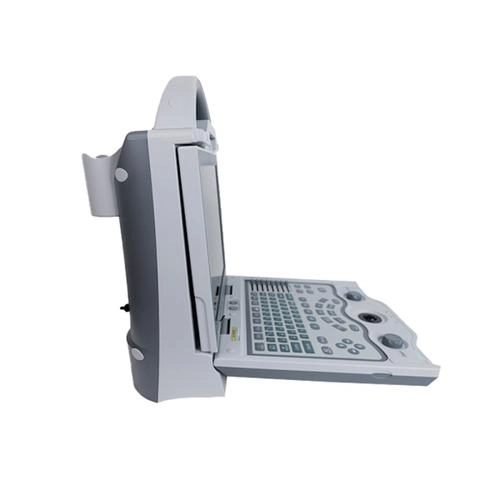

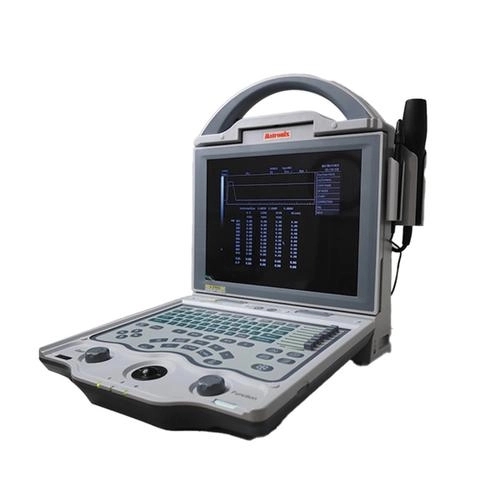

Matronix B Scan

Matronix B-Scan is an advanced ophthalmic ultrasound system designed to provide high-resolution imaging for accurate and comprehensive eye diagnostics. Combining precision, portability, and practical features.

This device enhances the diagnostic process by delivering clear and reliable ultrasound images that assist in evaluating a wide range of ocular conditions. It features a 10 MHz probe and supports both single and multiple image selection, allowing clinicians to examine and measure ocular structures with precision. A screen marking function enables accurate measurement in millimeters, while the freeze option ensures quick and efficient capture of diagnostic images.

The Matronix B-Scan is built with convenience in mind. It comes equipped with a large 10.4-inch LED monitor that offers high visibility, ensuring ease of use during examinations. The unit includes a LAN port for system connectivity, as well as a foot switch to enable hands-free operation, enhancing examination efficiency

Features:

Primary Purpose : Posterior segment imaging

Scan Type : B-Scan only

Probe Frequency : 20mhz

Measurement Accuracy : ±0.1 mm

Resolution : 0.01 mm

Measurement Parameters : chamber depth, viterous body length

Measurement Range : —

IOL Formula Support : SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis

Examination Modes : Normal, Aphakic, Pseudophakic, Dense Cataract

Measurement Technique : Immersion & Contact (Auto/Manual)

Imaging Output : lan connectivity with system

Gray Scale Imaging : 256 Gray Scale

Monitor Size : 10 inch display

Battery Operation : no battery option

Portability Focus : Non portable unit

Main Unit Weight : 4.5 kg

Clinical Use Case : Retina / vitreous diagnosis

Dual mode TV ouput : PAL/NTSC, Connecting with Video recorder and transonic Working station

Power supply : AC100-240V, 1.2-0.6A, 50-60Hz

Adapter output : DC1.8V 3.0A

Main unit weight : 4
