Anutone Soft Subtex Wave Nubby Grafix - Baffle Ceiling

Acoustical baffles in with direct digital image transfers

Custom digital images possible

From corporate theming to modern art – immense possibilities

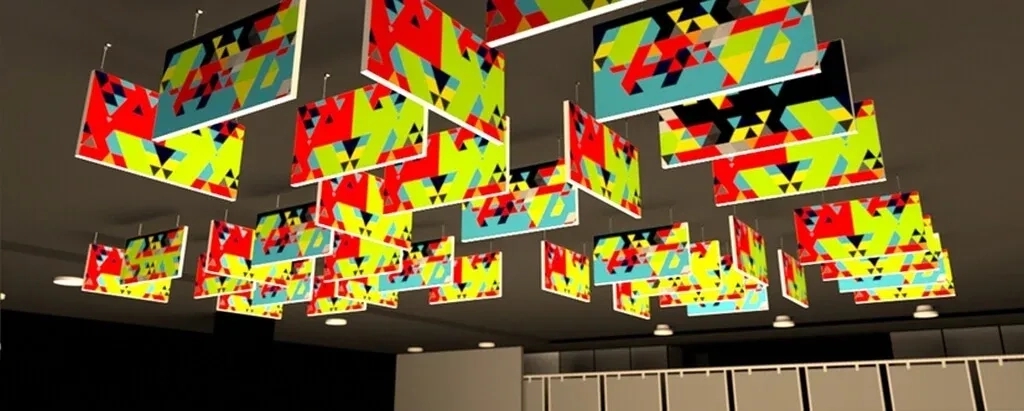

Subtex Wave Nubby Grafix for this double height lobby at an upmarket hotel Note the criss cross (or zigzag) cluster pattern that adds to the graphic art

Type: Discrete

Finish: Textures

Core: Glassfibre

Thickness (mm): 40

Size (mm) nominal:

200

400

600x1200

Density (Kg/m3): 120~140

Weight (Kg/m2): 4.8~5.6

Fire (Class): 1 & P

NRC: 0.9

Thermal (W/mk): 0.07

Climate (0C, RH): 40, 95

Light (%): Print dependant

Green (VOC, RC%): Low, 35

Warranty (Years): 5

Maintenance: Vacuum, Dry-Wipe

Install Accessories - Ceiling: A-Chain hardware or Suspension Kit consists of Corkscrew, Levelling hook and Hangar wire by Anutone. 2 kits @ 500

1000mm centres recommended for baffle height 600

1200mm respectively.
