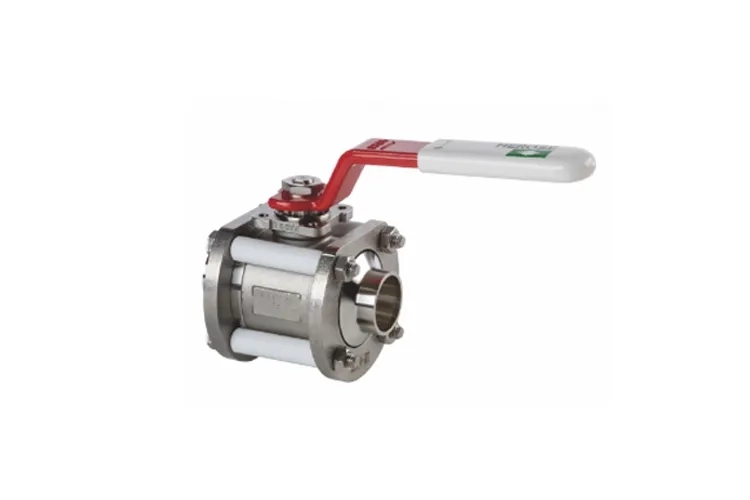

Cryogas Equipment Ball Valves

Cryogas cryogenic Ball valves have a larger flow diameter than comparable shut-off valves, which provides faster opening and closing times and are suitable for cryogenic and LNG tank applications, as well as for cryogenic pumps, pipelines and pressure regulation trailers. Cryogenic ball valves are manufactured in stainless steel which are available in sizes from DN8 to DN100 and secure pressure range up to 50 bar, at operating temperatures of - 200°C (-328°F) to + 200°C (+392°F).

MAKE: HEROSE GMBH

VALVE: Cryogenic Ball Valves (Full/Reduce Bore)

Media: Liquefied Gas such as Oxygen, Nitrogen, Argon, Carbon Dioxide, LNG etc.

Size: DN8 to DN100

Temperature Range: - 200°C (-328°F) to + 200°C (+392°F)

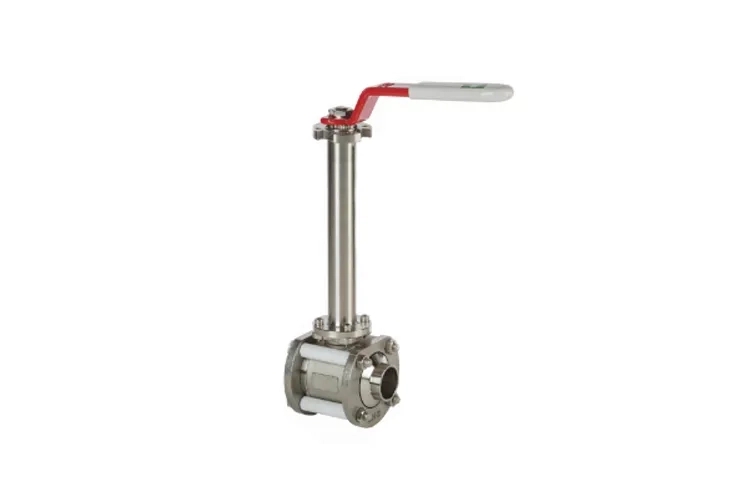

Stem: Long and Short

Pressure Range: DN8 to DN20 PN100, DN25 to DN32 PN70, DN40 to DN50 PN50, DN65 to DN80 PN40, DN100 PN25

End connection: Butt Weld, Socket Weld, Threaded

MOC: Stainless Steel

Cleaning: Cleaned and degreased for Oxygen Service
