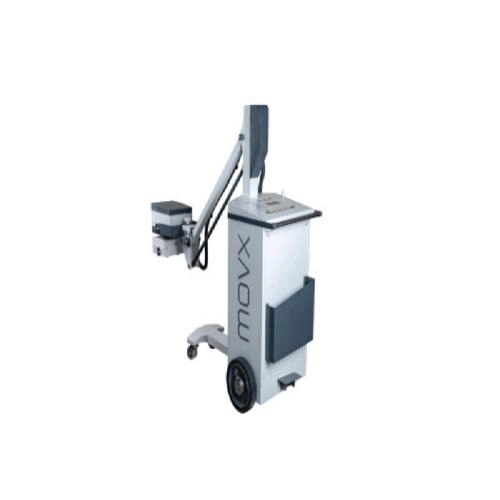

SI Surgical X-ray & Digital Radiography - Movx

100ma X Ray Machine

Digital Control Panel :

Microprocessor Based Digital feather touch Control Panel with LCD display.

Digital selection & display of mA, kV, mAs.

Anatomical Preset Programme with selection of body parts and patient type.

Programmable Anatomical Technique at any time by the operator by one push.

Available with either fixed or rotating anode X-ray tube.

Mobile Stand :

Compact, lightweight design with spring balance Arm.

Long reach, fully balanced, tube arm enables various quick and precise position.

Effortless Rotation of tube around the axis.

Well positioned and easy locking system for easy movements on slopes, inclines and ramps.

Folding arm allows Safe and easy parking of tube head, requires less floor area.

System Specifications :

Model No : Mi 100HF

Type : High Frequency

Generator Output : 4.2 kW

X-ray Ripple Frequency : 100Khz

rnA Range : 40 to 100 mA

X-ray Tube type : Stationary Anode

Focal Spot (Large) : 1.5 mm

Small Focus :

Input Power : Single Phase, 220V 50Hz + 10%, 15A
