Rielta Pyrone-SH version 3 - Passive Infrared Sensor

Combined Detector Pyrone-SH version 3.

Features:

The detector is designed for protection of paintings and other museum exhibits

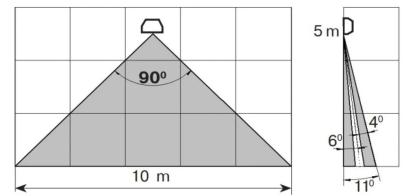

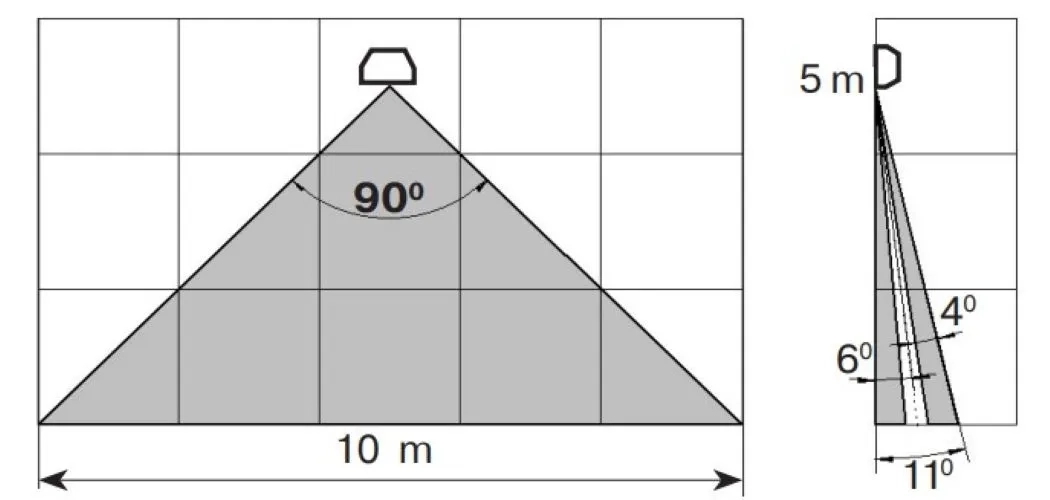

Vertical curtain detection zone

Case tamper protection

Sensitivity adjustment

Alarm message generation by the relay contacts opening

Sound alarm for drawing attention of personnel

Contents of the kit:

Combined Detector Pyrone-SH version 3 - 1 pc.

Operational documentation

Code: sby00000226

Pet immunity: No

Voltage: from 8 to 30 V

Current consumption: 10 mА

Temperature range: from -30 °C to +50 °C

Protection class: IP41

Dimensions: 80×47×40 mm

Installation height: to 5 meters

Maximum detection distance: 8 meters

Case opening control: Yes

Detection zone: Superficial

Angle of view of the detection zone in the horizontal plane: 90°

Sound indication: Yes

Refer Catalogue For More Infromation
