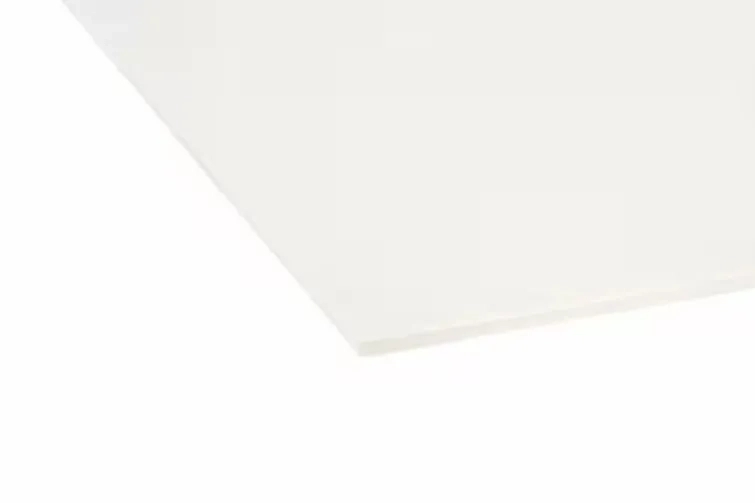

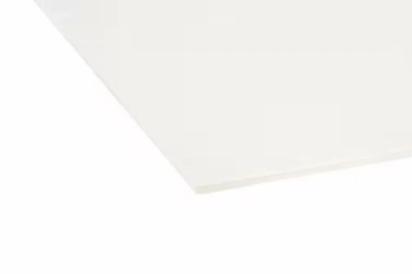

3M™ CeQUINBORD CGA Inorganic Insulating Board 1/32" X24"X48"

3M™ CeQUINBORD CGA Insulating Board is an inorganic-based board that is specially designed for electrical insulation applications rated up to Class 220®.

3M™ CeQUINBORD CGA Insulating Board is composed primarily of glass fibers and microfibers, inorganic fillers and less than 10% organic binders. The dielectric and thermally stabilized board helps to dissipate heat build up in electrical equipment. It is used in spiral and convolute wound tubing, traction motors, generators and switchgears. This insulating board comes with less moisture absorption capacity, thereby requiring less drying time prior to saturation. It is suitable for Class 220® electrical insulation systems and 3M UL Recognised Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant .

Highlights

Designed for electrical insulation applications

Offers thermal and dielectric stability

Used in spiral- and convolute-wound tubing, traction motors, generators, switchgears and flame-barrier applications for home appliances

1/32-in thick board

Measures 24-in L x 48-in W

Dissipates heat build-up in electrical equipment

Composed primarily of glass fibers and microfibers, inorganic fillers and less than 10% organic binders

Withstands temperatures over 482 degrees F (250 degrees C)

Applications : Dry-Type Transformer, Other

Brands : 3M™

Construction : Pure Paper

Laminate Construction : None

Performance Level : Better

Product Type : Electrical Insulation Board

Thermal Class : 220 °C

Dimensions and Classifications

Overall Thickness (Metric) : 2.29 mm

Refer Catalogue for more Information
