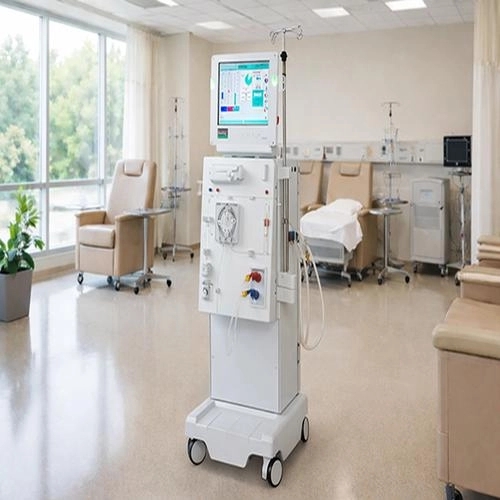

SI Surgical Dialysis Unit - Evo Lite

Description :

Dialog+ SW 9.xx (Evo Light)

Technical Specifications :

Special Features : Colour monitor, TFT Display, 15", Touch screen for easy handling, Optical Status light clearly indicates the treatment status.

Water Supply :

Water inlet pressure : 0.5 to 6.0 bar

Water inlet temperature : 10°C - 30°C

Max. drain height : 80cm

Electrical Data :

Power supply : 230 V, 50 Hz

Current consumption : Max. 11 A

Rating : 2500 VA

Extracorporeal circuit :

Arterial pressure monitoring

Display range : -400 to +400 mm Hg'

Accuracy : ± 10mm Hg

Venous pressure monitoring

Working range : 20 to + 390 mm Hg

Accuracy : ± 10mm Hg

Transmembrane pressure monitoring

Display range : 0 to +700 mm Hg'

Arterial blood pump

Blood flow range : 50 to 600 ml/min

Accuracy : ± 10%

Safety Air Detector : Ultrasound measurement in the tube

Heparin pump

Profile : To be Available

Delivery range : 0.1 to 10 ml/hr, Heparin delivered volume to be displayed on the screen

Bolus rate : 600 ml/h

Syringe size : 10,20 & 30 ml

Dialysis fluid circuit : Dialysate flow profile: To be Available

Dialysis fluid flow range :

Dialysate flow range : 300 - 800 ml/min, with 1 ml/min increment

Tolerance : ± 5%

Dialysis fluid temperature :

Temperature profile : To be Available

Selectable : +33°C to +40°C

Bicarbonate Conductivity :

Profile available : To be Available

Range : 4.0 to 7.0 mS/cm

Accuracy : ± 0.2 mS/cm

Dialysis fluid conductivity :

Profile available : To be Available

Range : 12.5 to 16.0 mS/cm

Accuracy : ± 0.2 mS/cm

Refer Catalogue for more Information
