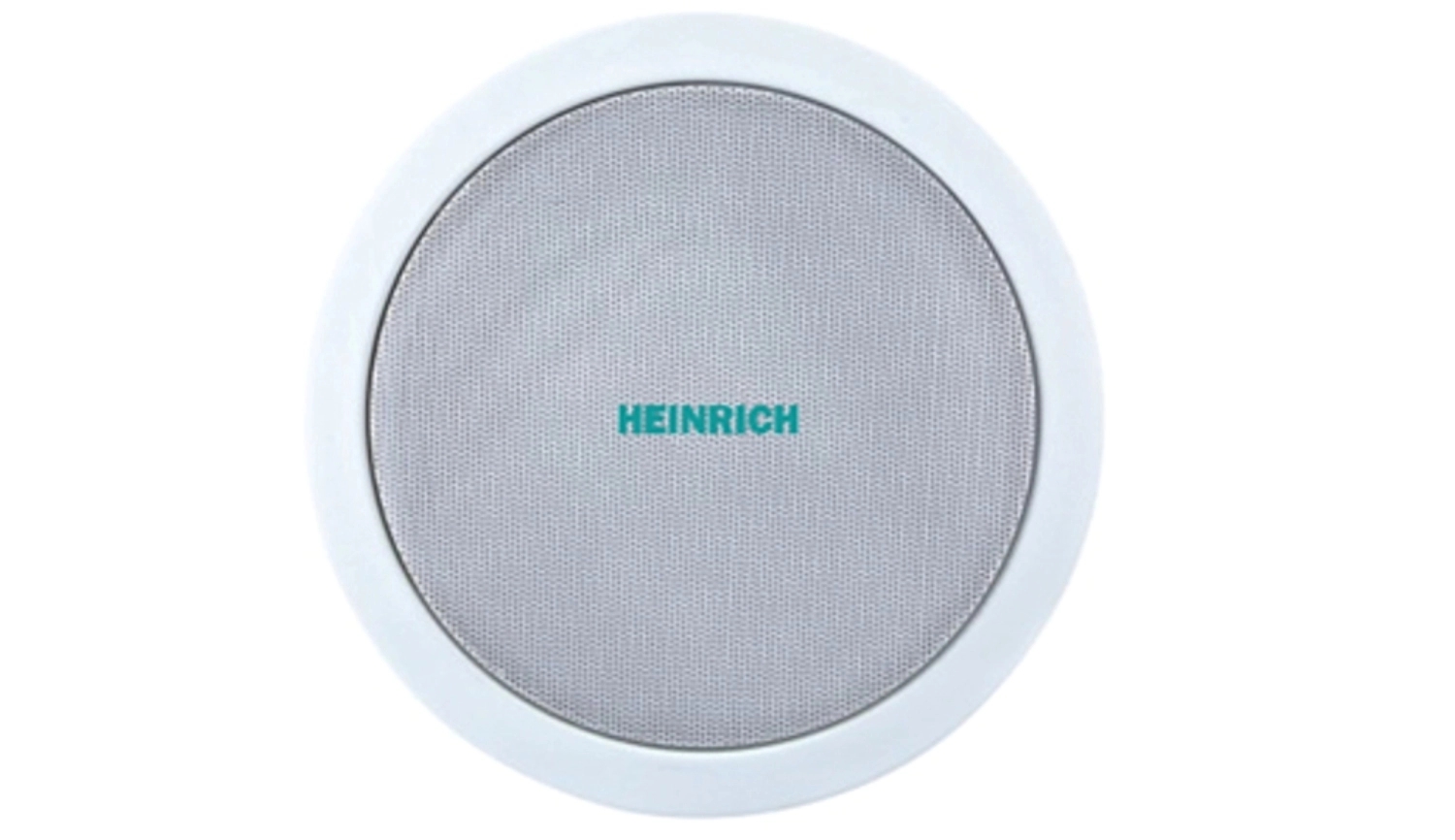

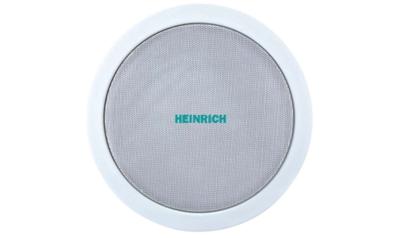

Heinrich CMS5/TDC Ceiling Speaker (with Tweeter) Speaker

The CMS5/TDC is a coaxial ceiling speaker with an integrated 70V/100V transformer. The 70V/100V transformer technology reduces line losses over longer distances and allows multiple speakers to be easily connected in parallel. The integrated 5" + 1.5" coaxial speaker is equipped with a wide frequency response of 110-18 kHz and multiple power taps of 1.5W/3W and 6W.

Power Taps @100V : 1.5W/3W/6W

Power Taps @70V : 0.75W/1.5W/3W

Impedance : Black: Com, Red: 6.7 KΩ, Green: 3.3KΩ, White: 1.7KΩ

SPL(1W/1M) : 94dB

Max. SPL (Rated W/1M) : 102dB

Frequency Response (-10dB) : 110-18KHz

Speaker Driver : 5" x 1, 1.5" x 1

Cutout Size : 170mm

Dimensions : 200 x 65mm

Weight : 0.8Kg

Mounting : Spring-Clip

Built-in 100v/70v transformer

In-ceiling type loudspeaker

5” +1.5" coaxial speaker unit

Power taps 1.5W/3W & 6W @100V

Aluminum grille & metal bae

Metal back box could be added
