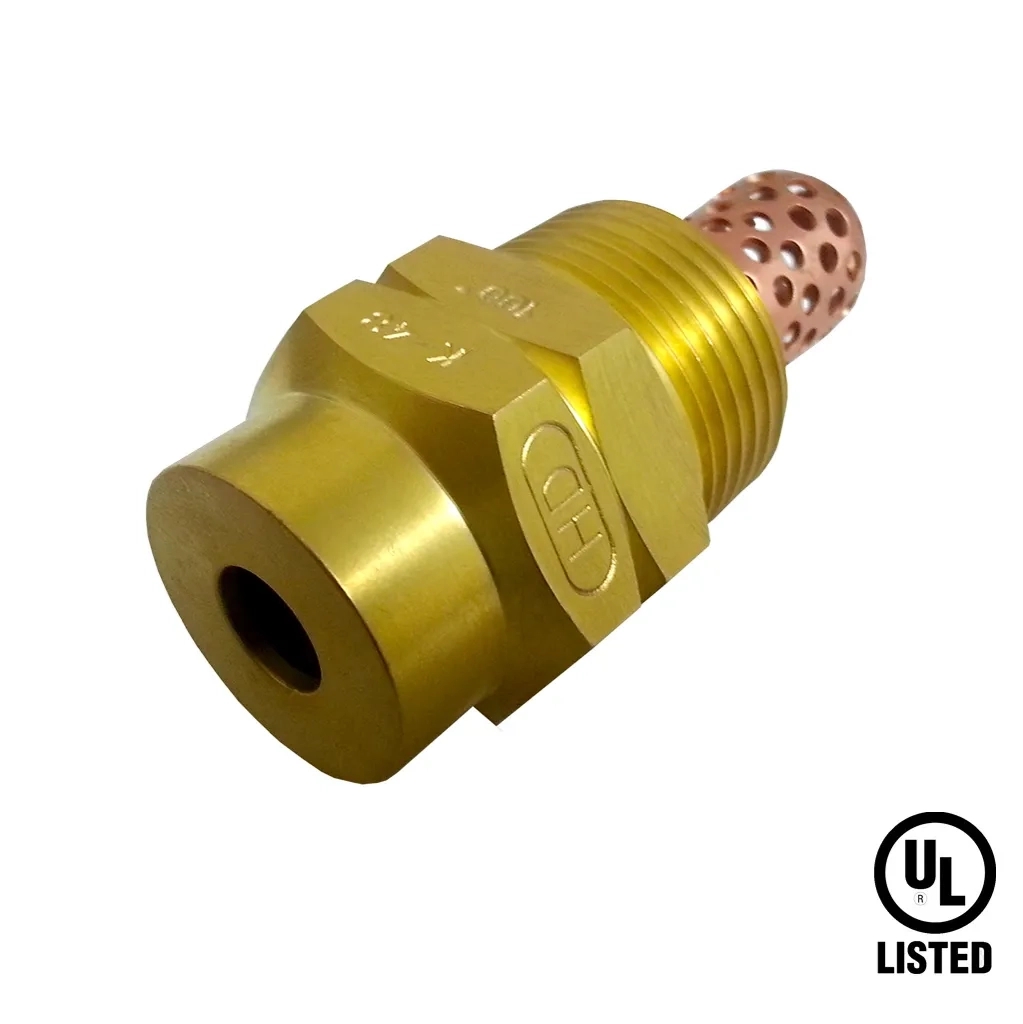

High Velocity Spray Nozzle Brass - 1 inch

HD High Velocity Water Spray Nozzle (1 Inch) is an open orifice and non-automatic directional spray nozzle..HV nozzle is designed for use in fixed water spray fire protection systems where a high velocity water application is needed. This includes applications such as protection of electrical transformers, circuit breakers, oil-fired boilers and lube oil systems. HV nozzle comes in various materials of construction and is UL Listed.

Features :

Non-automatic, open orifice, directional spray nozzle

Model – HV-HB in Brass material with Copper strainer & HV-H in Stainless Steel 316 material with Stainless Steel Strainer

For high velocity water application for protection of flammable liquid and electric transformers

K-factor: K-48 x 100°, K-58 x 100°, K-61 x 75°, K-78 x 90°,1” BSPT/NPT connection

Nozzle also available with blow-off cap

UL Listed

Refer catalogue for more information
