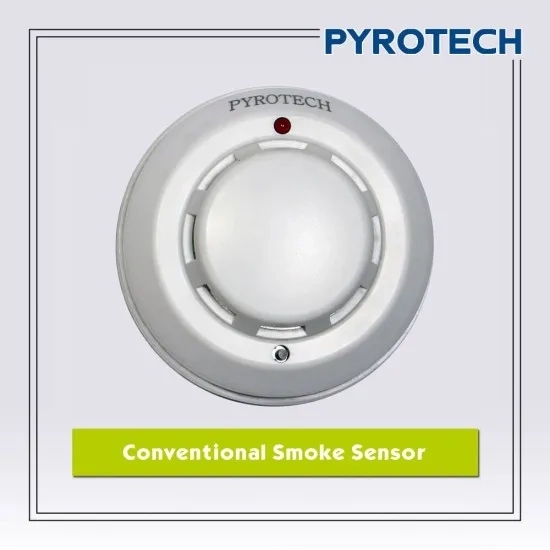

Pyrotech Conventional Smoke Sensor

Operating Voltage (Conventional) : +12VDC / +24VDC/ +48VDC

Standby current:<200 μA

Operating Current (Conventional) :(2 wire) Alarm Current 10 mA @ 48 VDC :(4 wire) Alarm Current 70 mA @ 48 VDC

Detecting Range : 20Sq.M

Working Temperature : -10°C ~ 60°C

Working Humidity : 95% RH

Alarm Mode : Network Alarm Signal (for Conventional)

Mounting : Ceiling

Output : NC/NO(Optional), Buzzer(Optional), Pulse Output

Size:51(H)X104(D)mm

Weight:177gm
