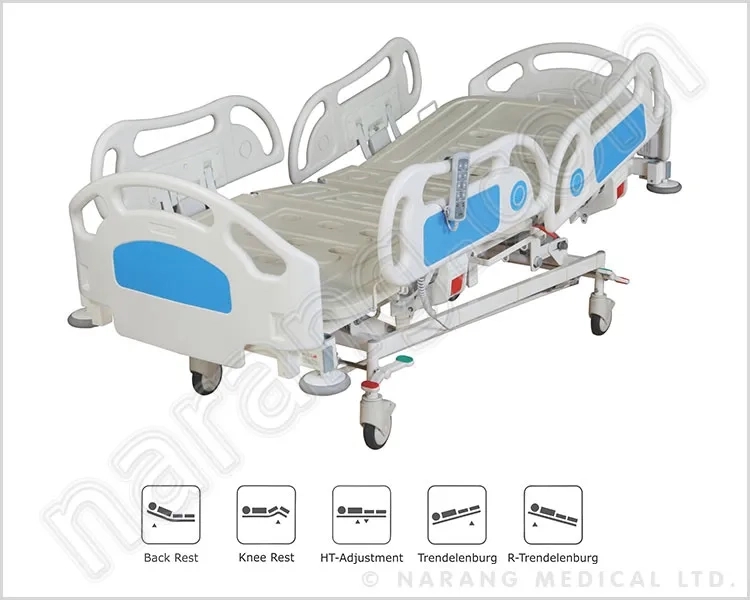

Narang Medical HF818 : ICU Bed 5 Function

Technical Specifications:

Major Features Include: Backrest, Knee rest, Height Adjustment, Trendelenburg/Reverse Trendelenburg positions maneuverable by four separate liner actuators which are operated by Remote.

Back rest: 0-75°

Knee rest: 0-35°

Minimum Height: 450mm

Maximum Height: 750mm

Trendelenburg/Reverse Trendelenburg: 0-12°

Dual Side Liver for Manual CPR

Frame size: L 2060mm x W 900mm

Overall Dimensions: L 2160mm x W 1020mm

Epoxy coated mild steel structure with 4 section mattress platform made up of CRCA sheet

Detachable Polymer molded Head and foot bows giving a soothing look.

4 sectional polymer molded safety side rails with separate angle indicators.

Corner PU buffers to absorb impact and reduce damage during handling

Single wheel heavy duty Diagonal Locking Castors of 125mm Dia for smooth mobility with control.

Heavy duty IV Pole with provision for fixing it at all four locations.

Optional Accessories:

Mattress

X-ray permeable backrest
