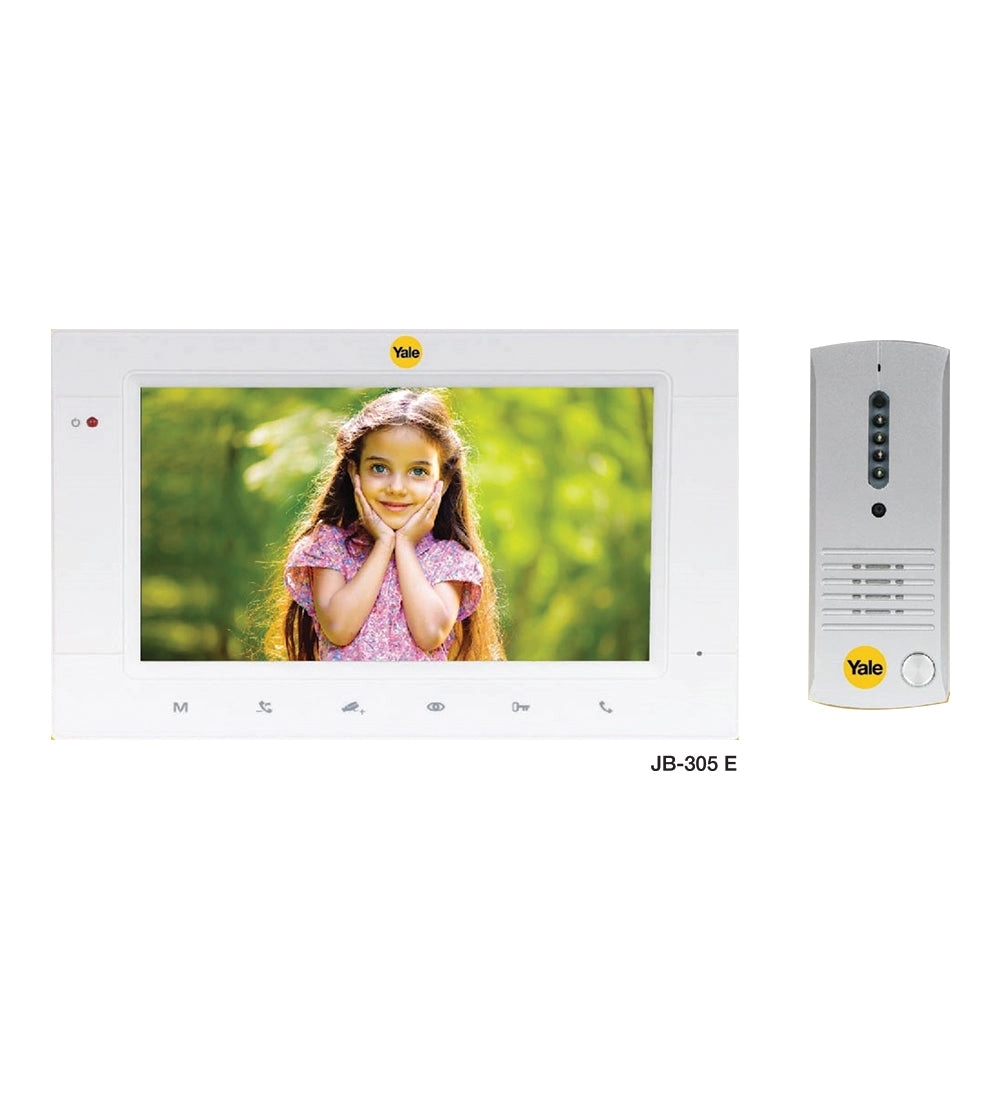

Yale JB 305 - E Video Door Phone with Two way communication, 7inch TFT LCD and Camera with Night Vision LEDs

Intercom system for home, for easy monitoring of visitors. Use with Home automation system and Smart Locks.

SKU : JB-305 E Video Door Phone YALE

Product Type : Video Door Phone

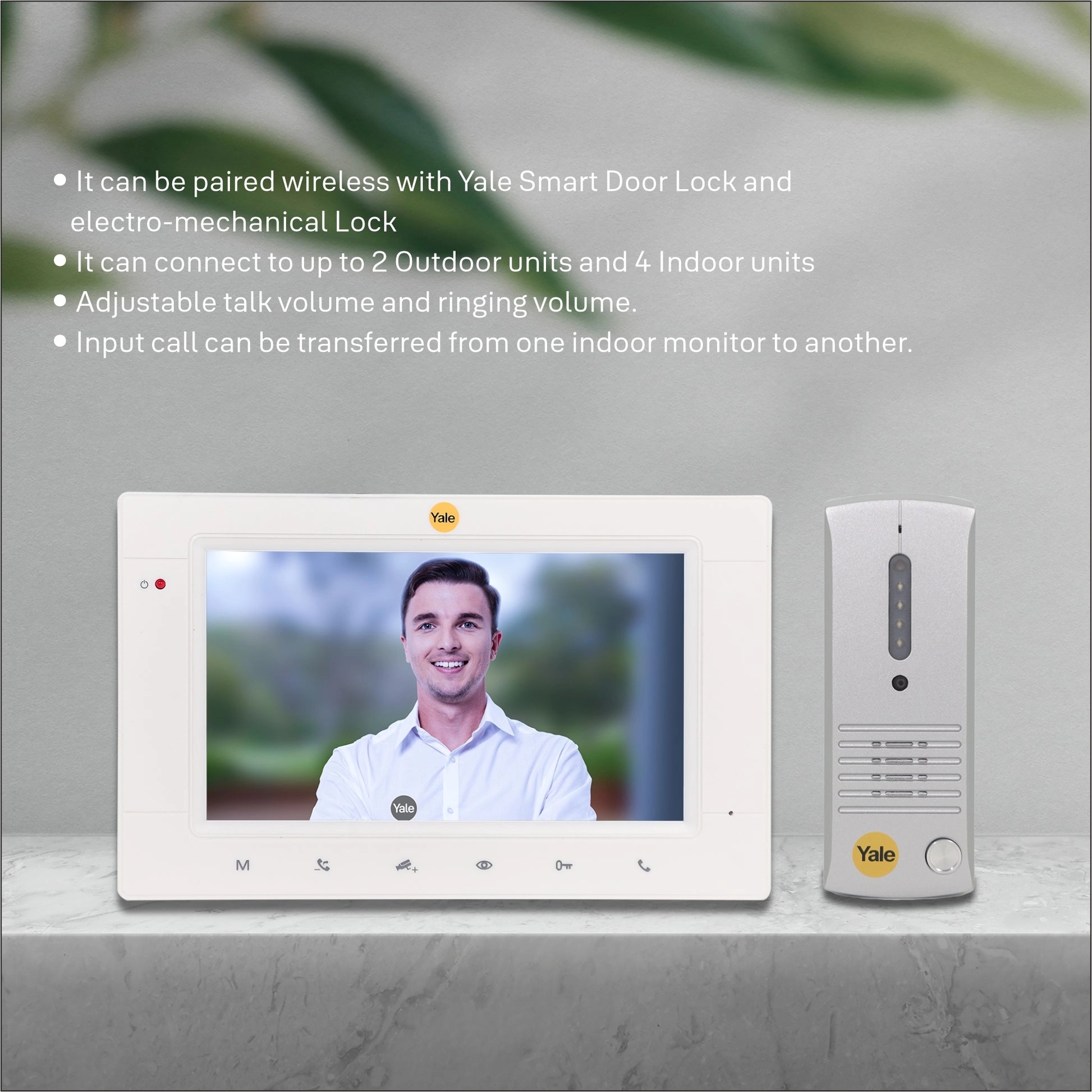

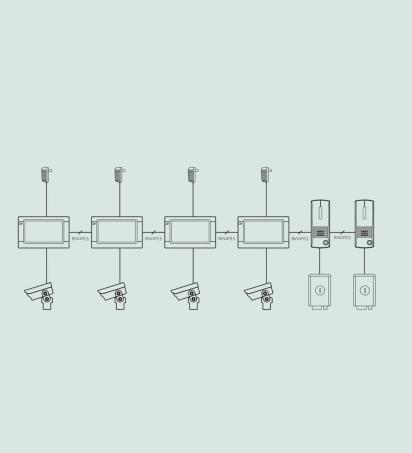

The Video Door Phone facilitates two way communication. It can connect to up to 2 Outdoor units and 4 Indoor units for single family.

It can be paired wireless with Yale Smart Door Lock and electro-mechanical Lock- through which lock can be opened from the indoor unit itself.

Facilitates simultaneous Monitoring and talking with a visitor. Supports Point-to-point intercom and broadcast function

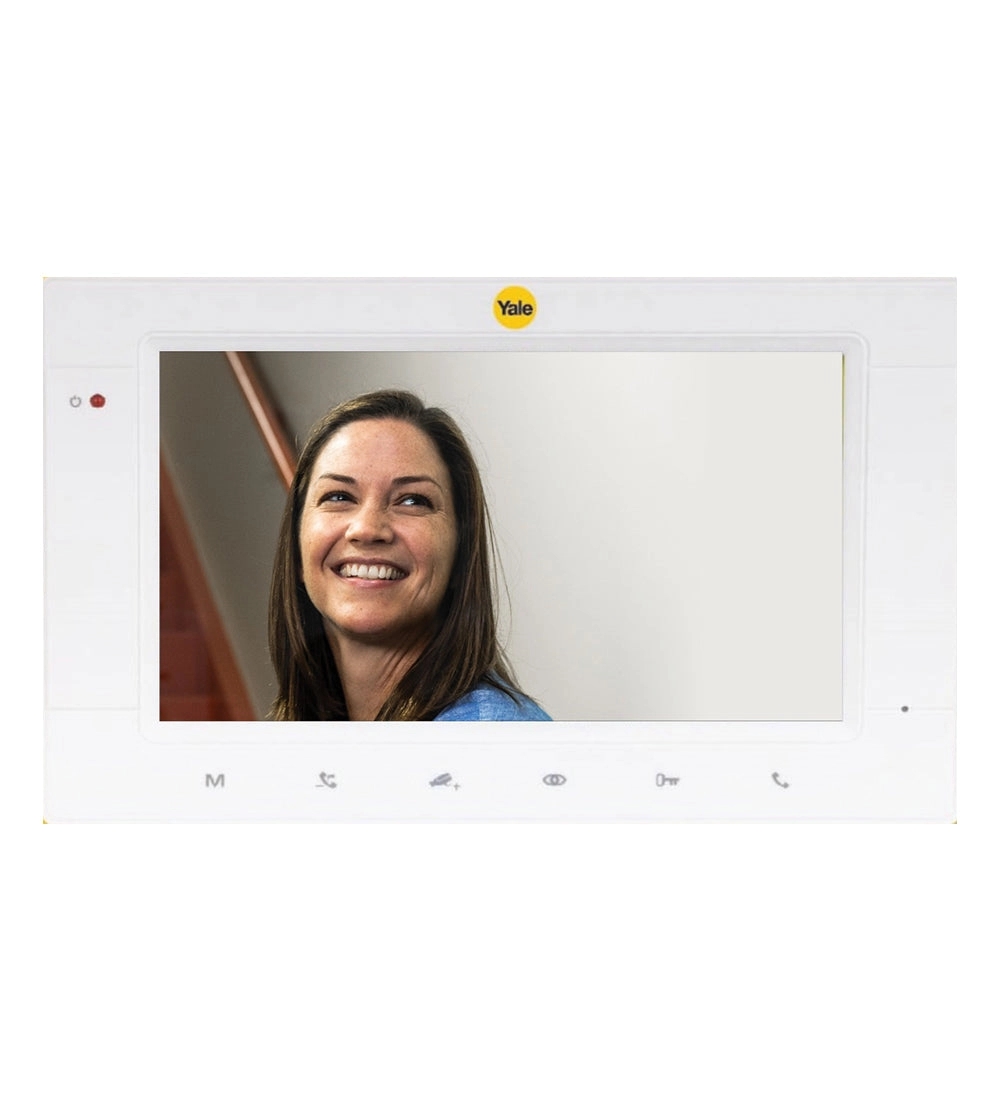

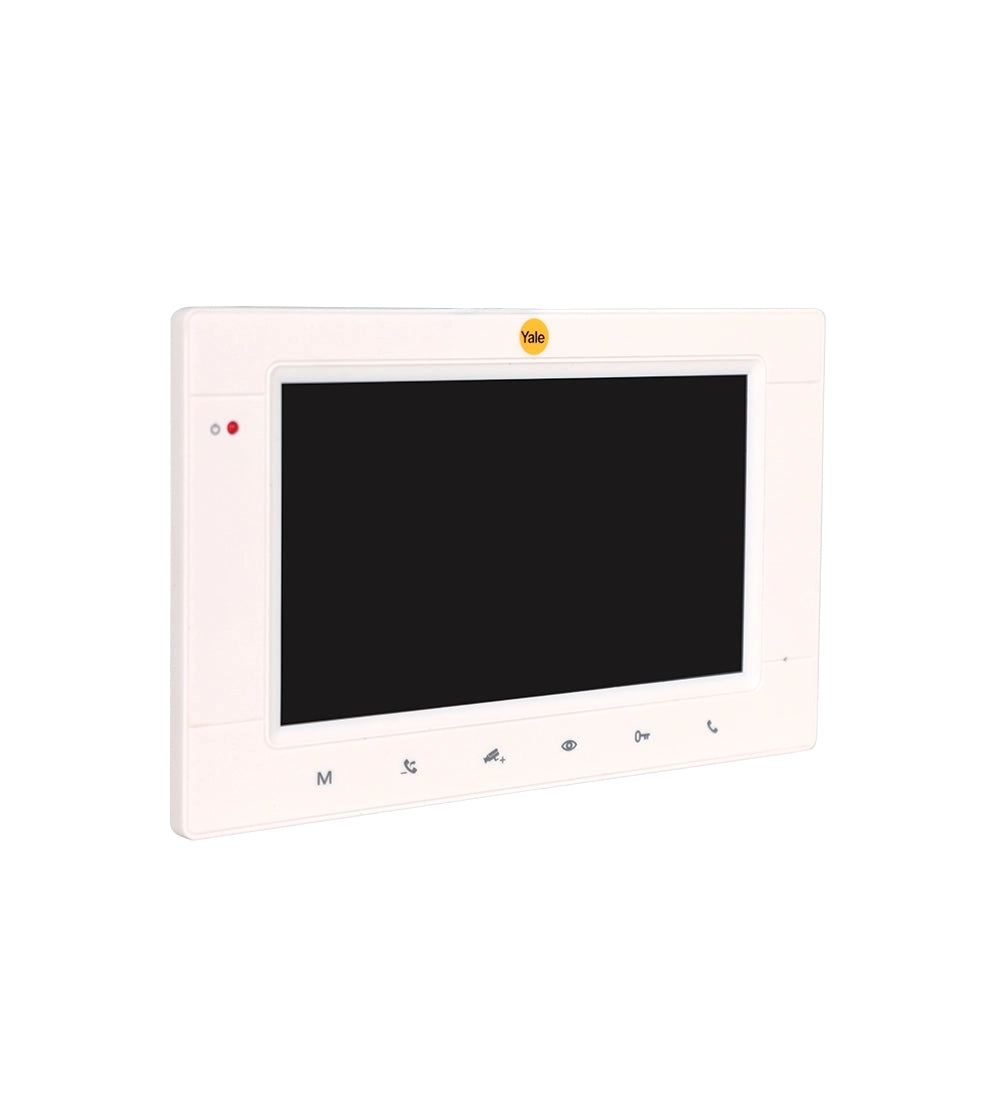

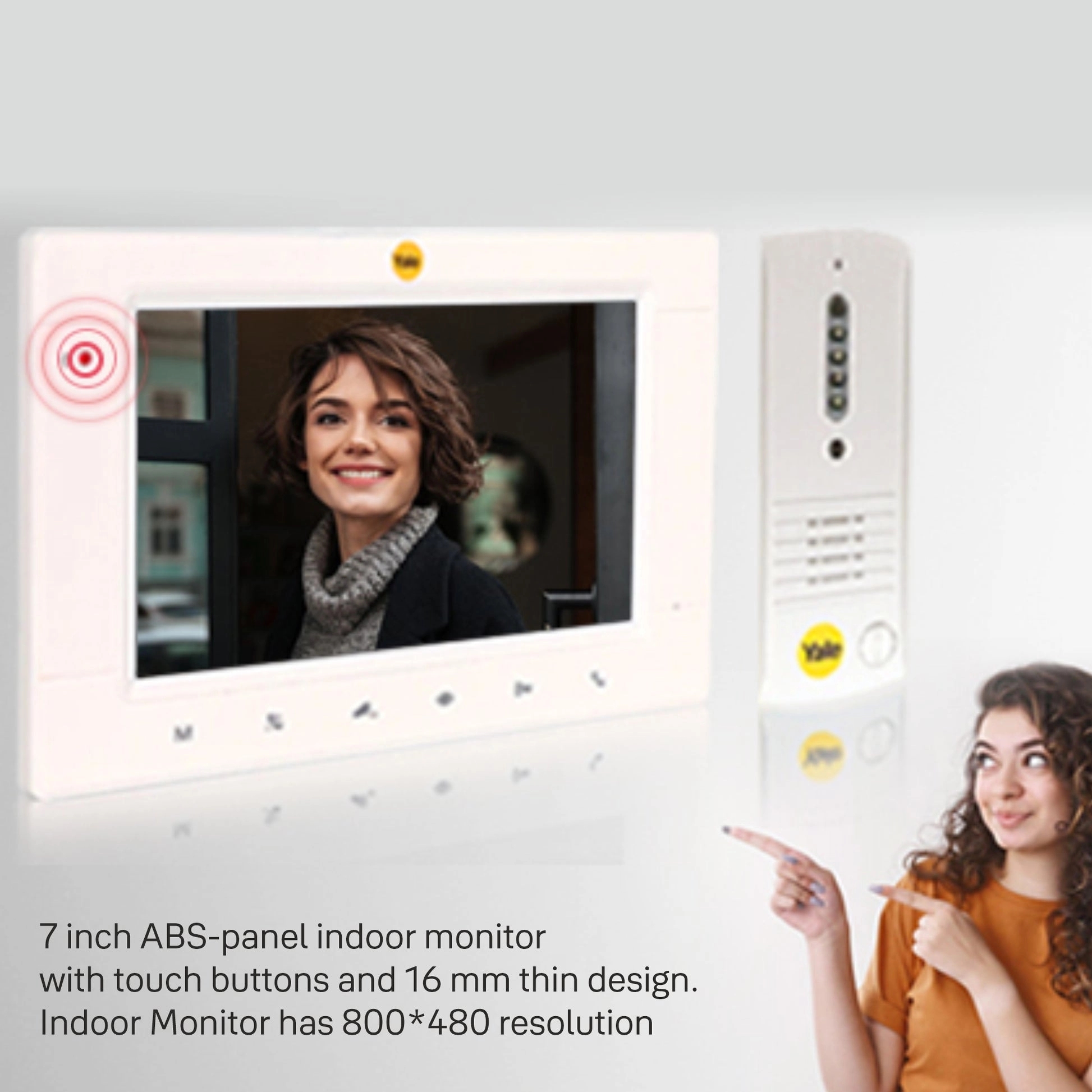

JB 305 E comes with 7 inch ABS-panel indoor monitor with touch buttons and 16 mm thin design. Indoor Monitor has 800*480 resolution.

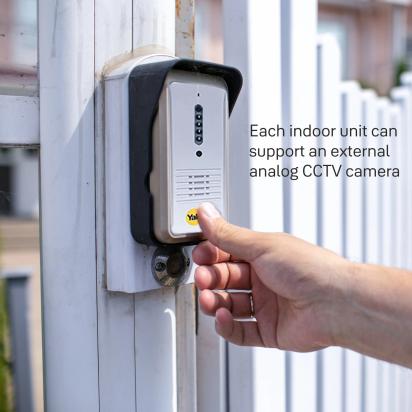

JB 305 - E comes with slim design outdoor station & cast-aluminum outer panel. Each indoor unit can support an external analog CCTV camera.

JB 305- E supports intercom, remote unlock and monitor the door.

Input call be transferred from one indoor monitor to another.

Adjustable talk volume and ringing volume.

Outdoor Unit :

Panel : Aluminum, anti-vandal

Camera : 1/4" color CMOS camera, Pin-hole

Night vision : White LEDs

Installation Type : Surface Mount

IP Rating : IP 54

Operating Temperature : -25～70℃

Weight ( Kg) : 0.4

Dimensions( mm) : 54.5*140.5*40

Indoor Unit :

Panel : PMMA, white color

Display : 7" TFT-LCD, 800*480 Pixels

Night vision : White LEDs

Installation Type : Surface Mount

Operating Temperature : -25～55℃

Weight ( Kg) : 0.5

Dimensions( mm) : 210*130*16
