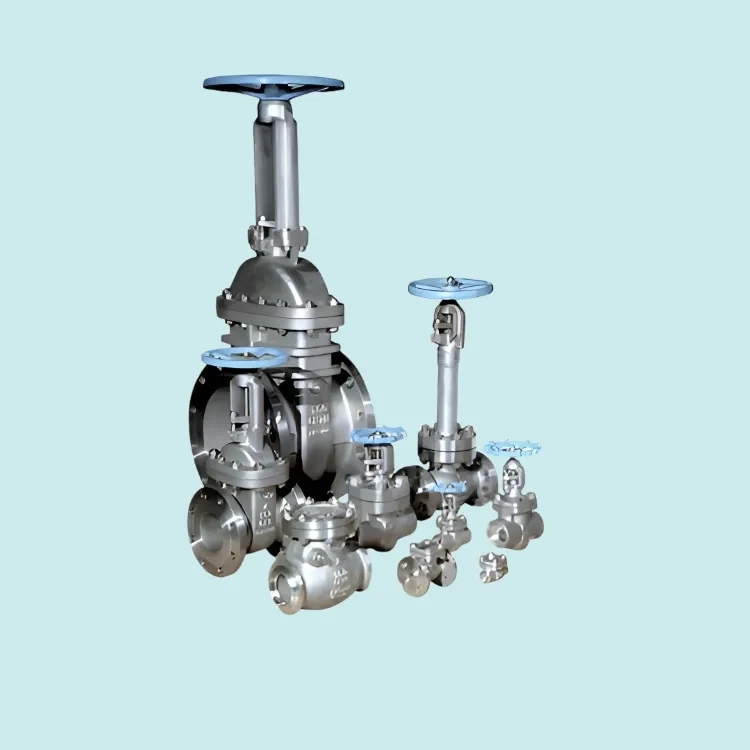

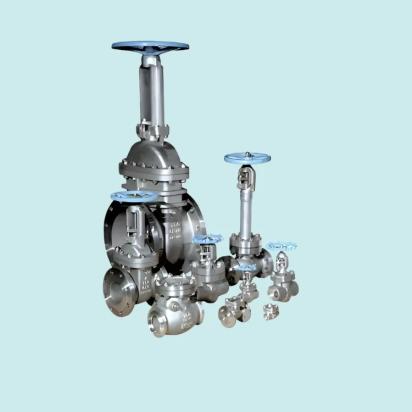

Strong Gate Valve 300 Class

The circular ring joint bonnet seal has proven to be the best bolted high pressure bonnet joint available. The ring joint is self-aligning; the gasket may be reused unless it is physically damaged. Valves in these classes are also available with spiral wound gasket bonnet joints when specified.

The circular male and female bonnet joint are self- aligning and well suited for intermediate pressure classes. Our standard gasket is spiral wound. Valves in these classes are also available with double jacketed or ring joint gaskets when specified.

Features:

Full range of body/bonnet materials

Full range of trim materials

Choice of plug or ball disc

Pressure temperature rating: ANSI B16.34

Flanged or butt weld ends

0S&Y construction

Full port design – API wall thickness

Renewable seat rings – also available seal welded

Male and Female bonnet joint

Double jacketed graphite bonnet gasket

Anti-friction ball bearing yoke sleeve 10″ and larger

Meet design requirements of ANSI B16.5, B16.34, B16.25, B16.10 and API-600

Optional elastomer seals for High Integrity Shutoff
