Aura Synergy Linear System

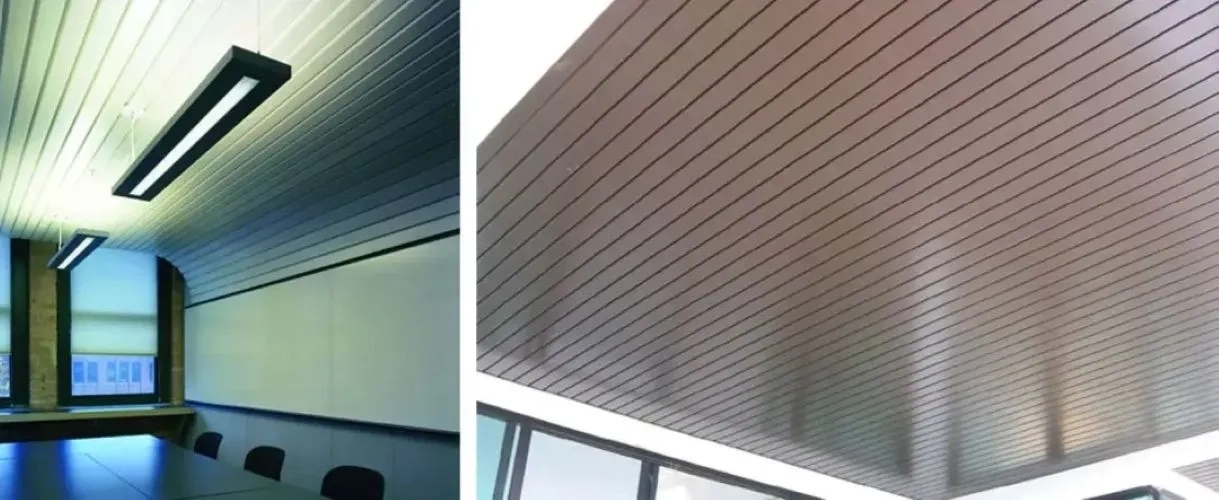

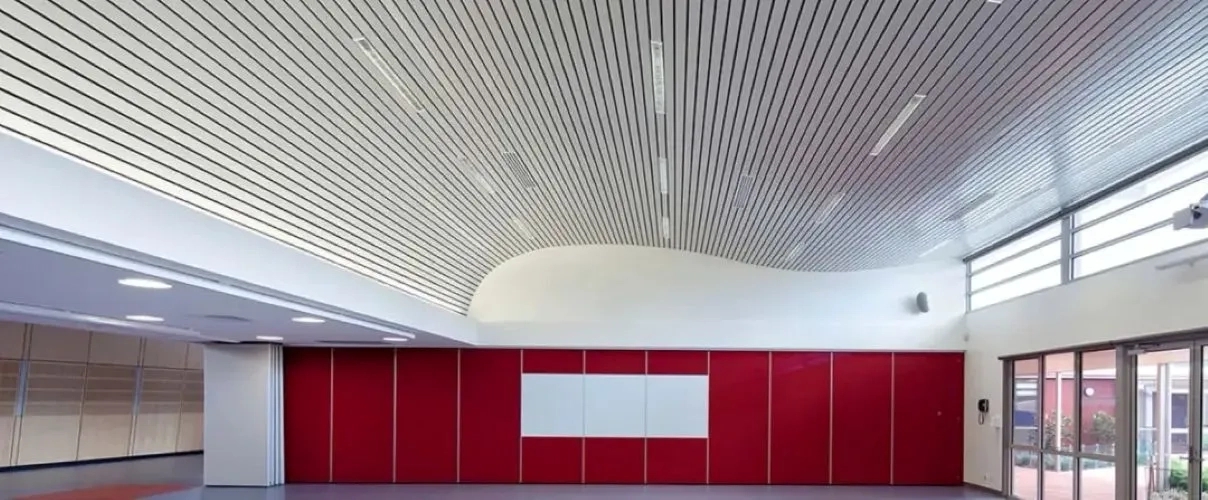

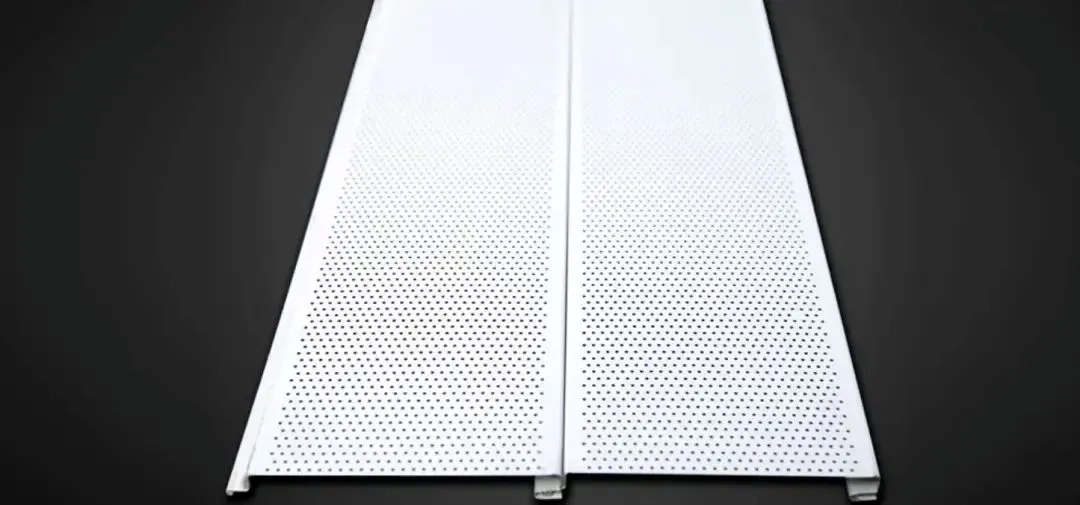

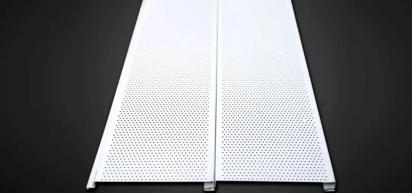

GridSquare® Linear Metal Ceiling System combines elegant linear pans and a specially engineered suspension system to create dynamic ceilings with clean, contemporary planes or gently rolling waves. Elegant and understated, Linear Metal Ceilings provide great flexibility in design, with closed-gap and open-gap options that allow for a variety of visual effects. This ceiling system also comes in 3 modular widths and is compatible with perforated or solid panels. This Metal Ceiling System comprises of long linear aluminium pans offered in specified widths with roll-finished edges for an open reveal between pans. A variant with integral flanges is also offered that overlaps to form a closed reveal appropriate for exterior soffit applications. Use the system to enhance visual impact in retail, hospitality, entertainment and office environments.

(As per DSR)

GI with 60 micron Powder Coating:

Standard Size*: 600 x 600 mm

Bevel Edge: Yes

Square Edge: Yes

Thickness: 0.5 mm

Standard Size*: 600 x 1200 mm

Bevel Edge: Yes

Square Edge: Yes

Thickness: 0.6/0.7 mm

Aluminium with 60 micron Powder Coating:

Standard Size*: 600 x 600 mm

Bevel Edge: Yes

Square Edge: Yes

Thickness: 0.6/0.7 mm

Standard Size*: 600 x 1200 mm

Bevel Edge: Yes

Square Edge: Yes

Thickness: 0.6/0.7 mm

Features:

2-3 hours fire rating assemblies

Excellent Sound Control / Noise Reduction Performance

Withstands dynamic wind loads/span>

Advantages:

Design Flexibility

Simple downward access

Extensive Range

Easy Above-Ceiling Accessibility/li>

Service Integration

Applications:

Retail

Hospitality

Entertainment

Office

Refer Catalogue for more information
