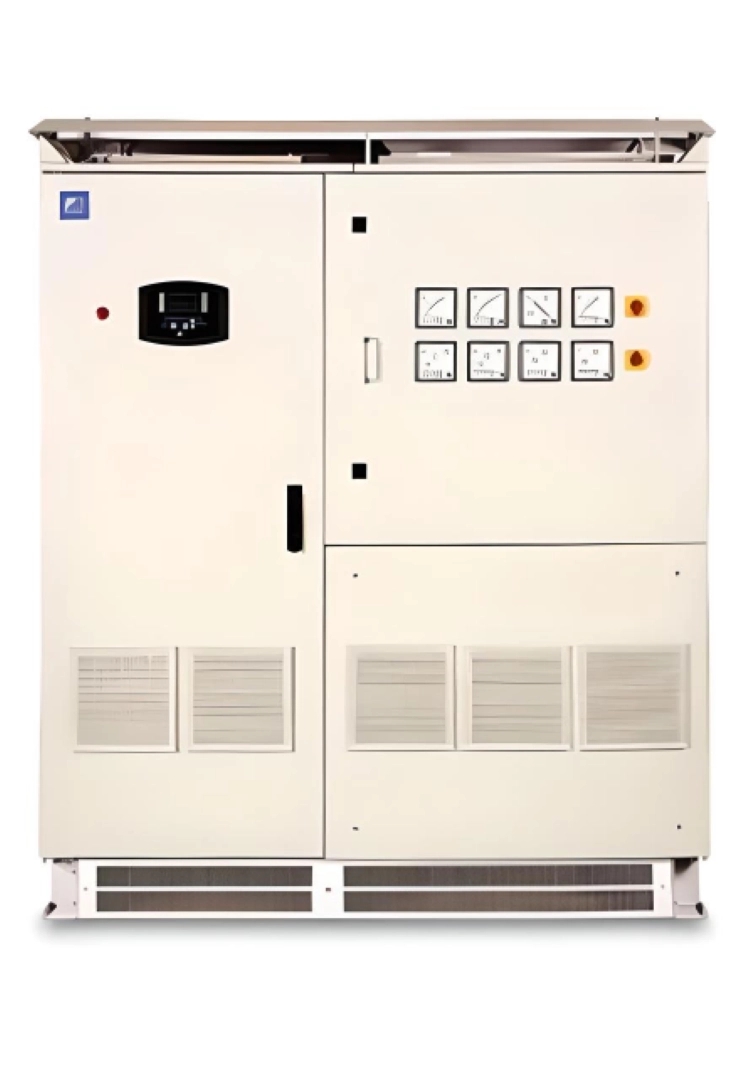

Fuji Electric Three Phase UPS Falcon 1000 UPS - 5 KVA - 200 KVA

The Falcon 1000 range of UPS systems is designed for industrial applications, featuring high reliability in harsh environments and high operating temperatures. It boasts IP31 and above ratings, and has built-in earth shielding in the input and output transformers for maximum noise attenuation. The design also provides high electrical immunity against mains-born disturbances, utilizing leakage choke and capacitors to increase filter capabilities.

The transformer and power component design calculations for the industrial products assume maximum temperature (>40C) with N+1 fan and natural cooling (On demand)

Selection criteria for consumables such as capacitors - Industrial UPS calculated at 40C full load with life > 10 years

Falcon 1000 UPS has IP41 ingress protection as specified.

Latest designs adapt IGBT rectifier, CAN Bus communication and protocol to suit industrial ecosystem

Features & Benefits:

32 bit floating point DSP controlled UPS

Advanced rectifier

Unique modular construction offering lower MTTR

Internal CAN bus communication

True RMS reading of over 25 parameters

N+1 and N+N redundant fans

Applications:

• Oil and Gas Industry (onshore and offshore)

• Power Industry

• Steel Industry

• Cement Industry

• Water and waste water Industry

• Automotive Industry

• Processing plants

• Pulp and paper Industry

• Railway & Signalling

• Foundries

• Textile Industry
