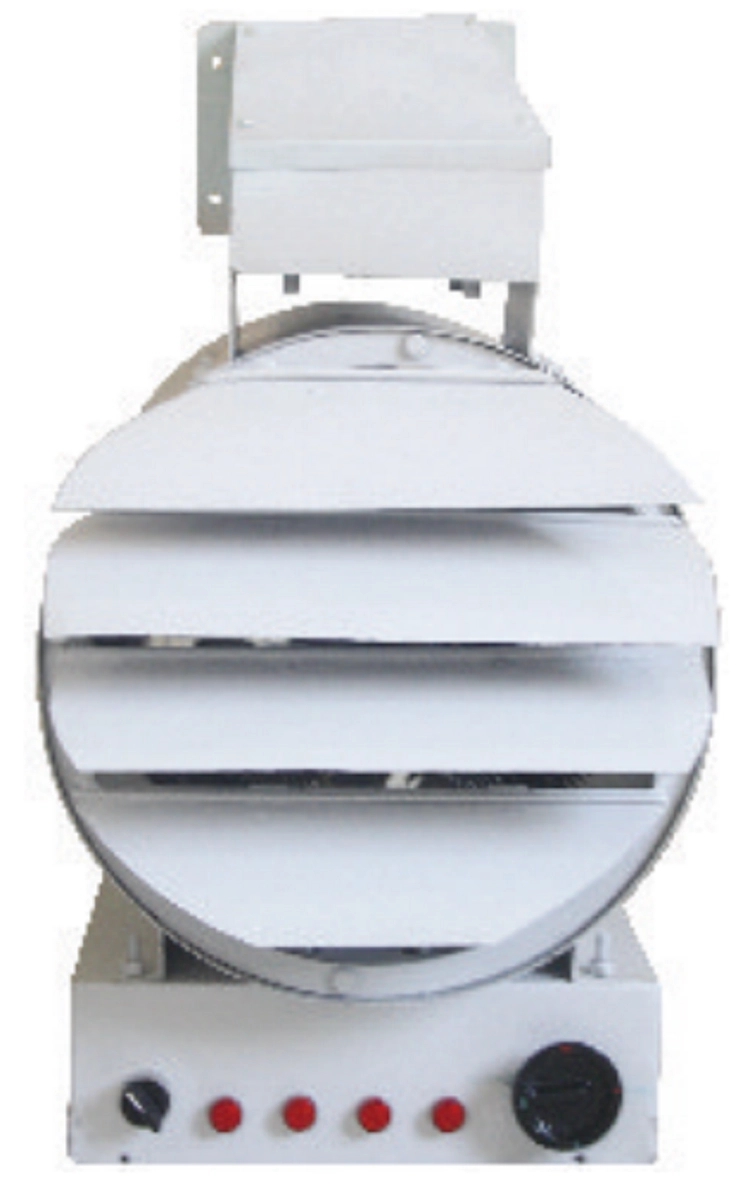

Daspass Wall Heaters

Finish : Cabinet is coated with a hybrid polyester epoxy power coat print

Construction : 16 swg corrosion resistance housing with adjustable louvers to direct airflow up, down left or right

Controls & Wiring : Automatic reset over temperature cutout, fan delay relay, controlling contactor, transformer for 24V control circuit, terminal block for field wiring and separate motor contactor

Mounting : Comes with swivel mounting bracket for wall or ceiling installation

Voltage : 240, 440, 415, 600V – 1/3 Phase

Wattage : 2 Kw to 45 Kw

Color : White and Almond (As per customer requirement)

Discharge : Horizontal

Airflow / CFM : 700 to 2400

Features :

All the necessary safety and temperature controls are built-in to a single package

Components and motor are factory-wired to a single terminal Specially formed concentric Finned Elements yield maximum heat transfer

Heater, fan motor and controls are all connected at the same branch circuit

Epoxy-coated construction & Fanblade

Applications :

Food Processing Plants

Marine and offshore

Wastewater treatment plants Dairies

Cement plants

Car washes

Power generating stations

Coal handling areas

Swimming Pools
