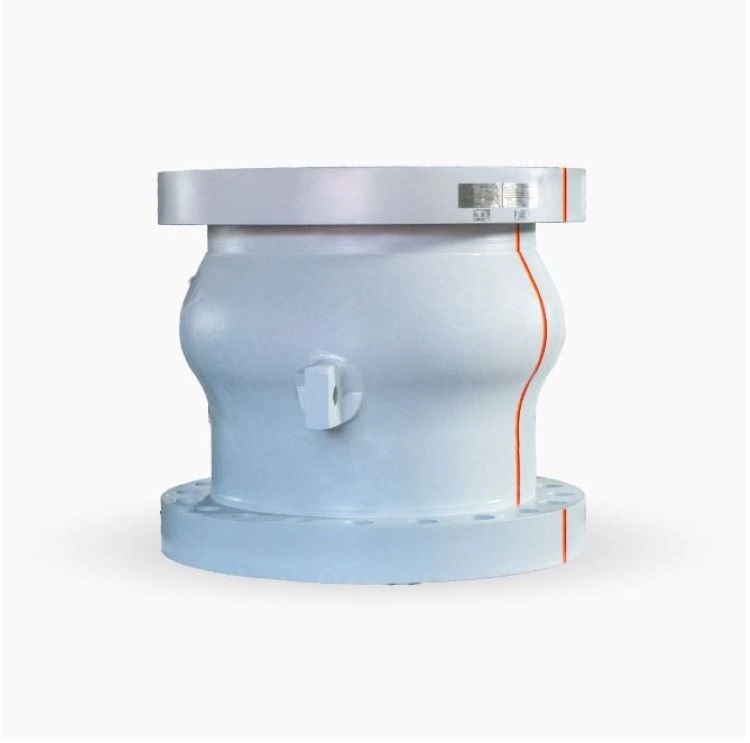

Flovel Nozzle Check Valve

Flovel exports Non-Slam Nozzle Check Valves, catering to international oil and gas industry needs. The product range spans 1/2" to 72". Nozzle checks ensure high velocity flow without cavitation and surge protection, primarily used to protect pump discharge lines and compressor stations. Compared to Swing or Dual Plate Check Valves, Non-Slam Nozzle Check Valves have a lower pressure drop and higher CV values, making them a preferred choice.

Size : 12-72" (DN15-DN1250)

Body/Door Material : Carbon Steel, Low Temperature Carbon Steel, Alloy Steel, Austenitic Stainless Steel, Duplex Stainless Steel, Supper Duplex Stainless Steel, Nickel Alloy, HASTELLOY, Aluminium Bronze

Spring Material : SS316, INCONEL 718, INCONEL X-750

Design Standard : API 6D, ASME B16.34, ASME B16.25, BS EN 12516-1

Pressure Rating : ASME #150-#2500, ΑΡΙ 2000 PSI-10000 PSI, PN10-PN 40

Seat : Corrosion Resistant Alloys, Hard-facing, EPDM, VITON, PTFE

End Connection : FLANGED, BUTTWELD, HUB, RTJ

Testing Standards : API 598, API 6D, ISO 5208, BS EN 12266-1&2.

Key Features :

Fire Safe Design Valves

Type Test - Validated Design

ETT - Elevated Temperature Tested Valves

FE - Fugitive Emission Tested Valves

Flow Test - CV Value and Pressure Drop

Life Cycle Tested

CRA-Corrosion Resistance Alloy Cladded Valves (Inconel 625, Inconel 825, SS316)

Cryogenic Application

Hydrogen Application

Vacuum Application

Rubber Lined
