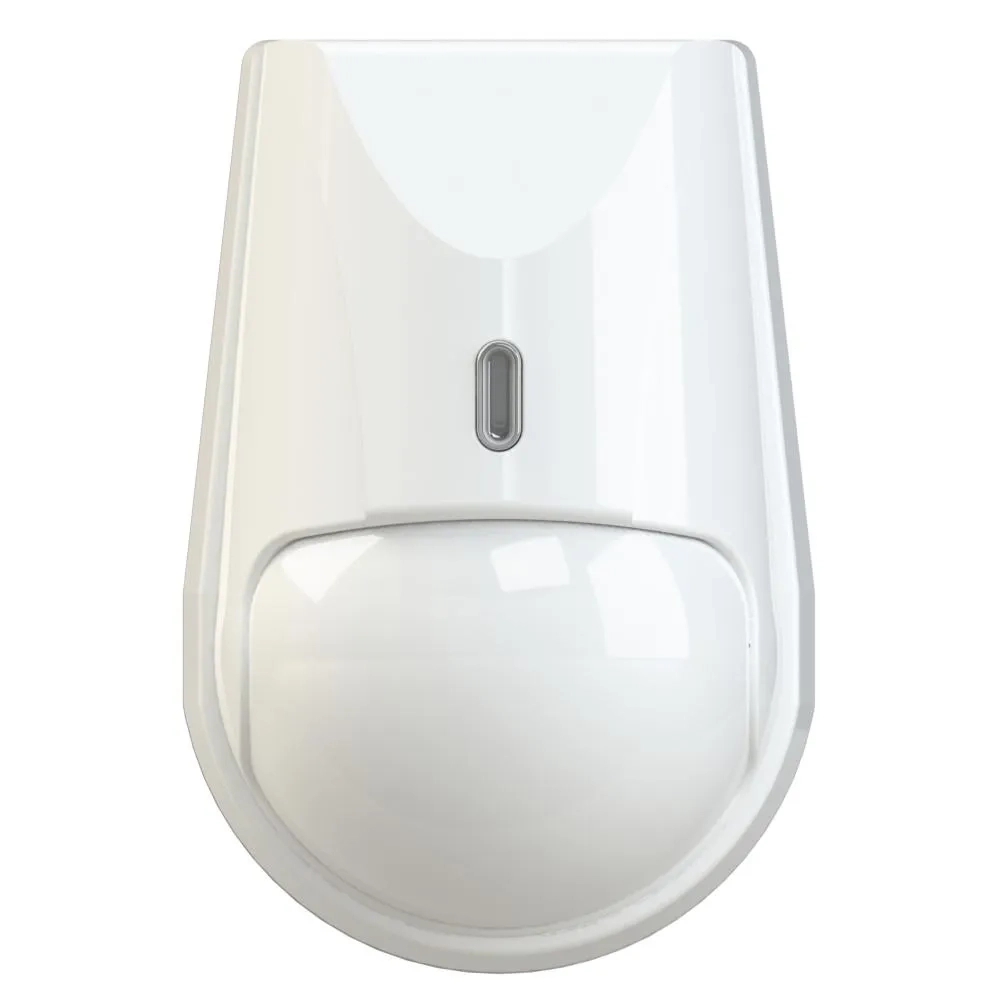

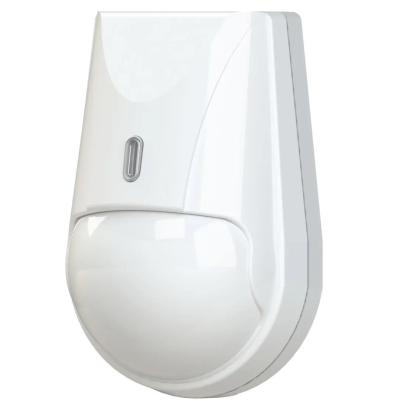

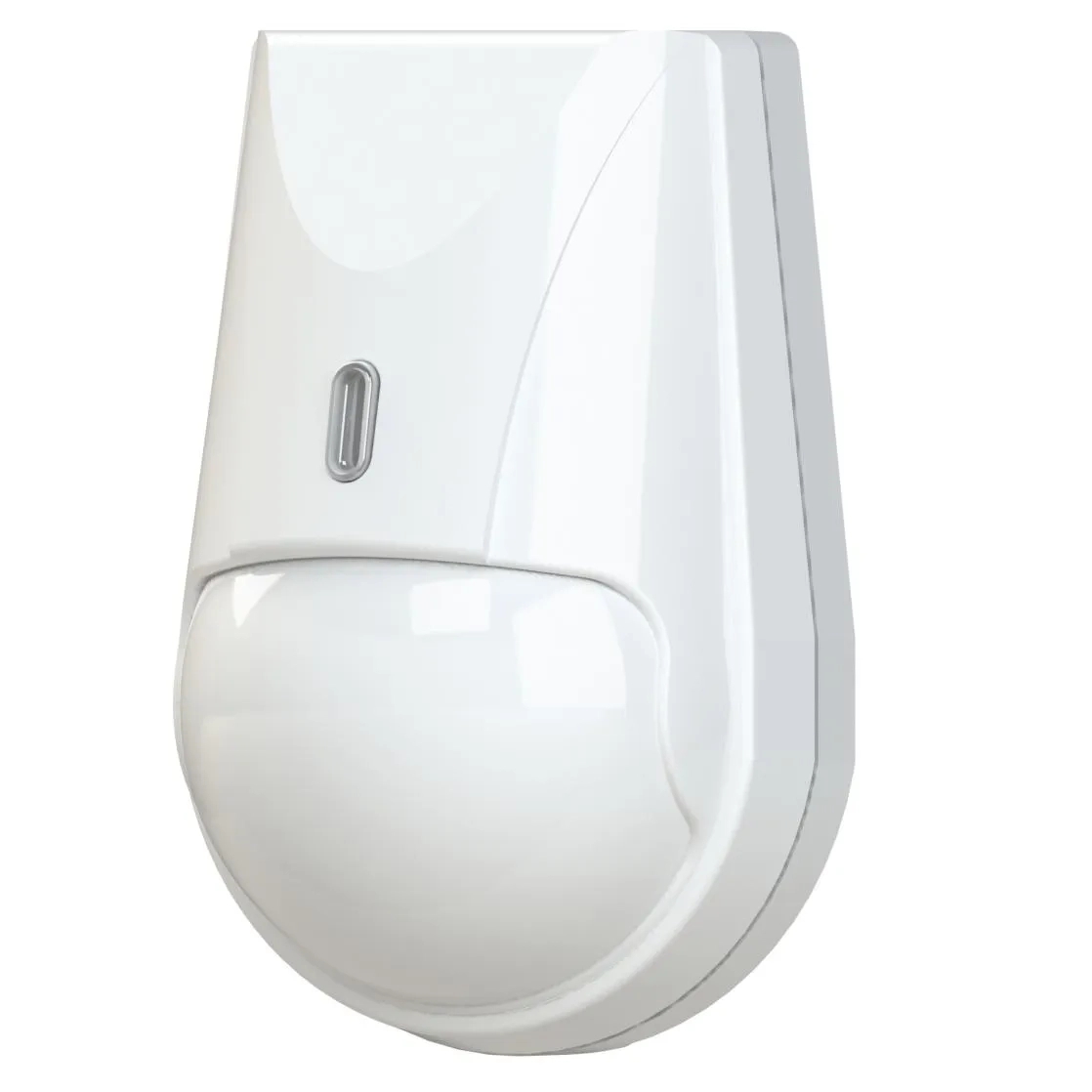

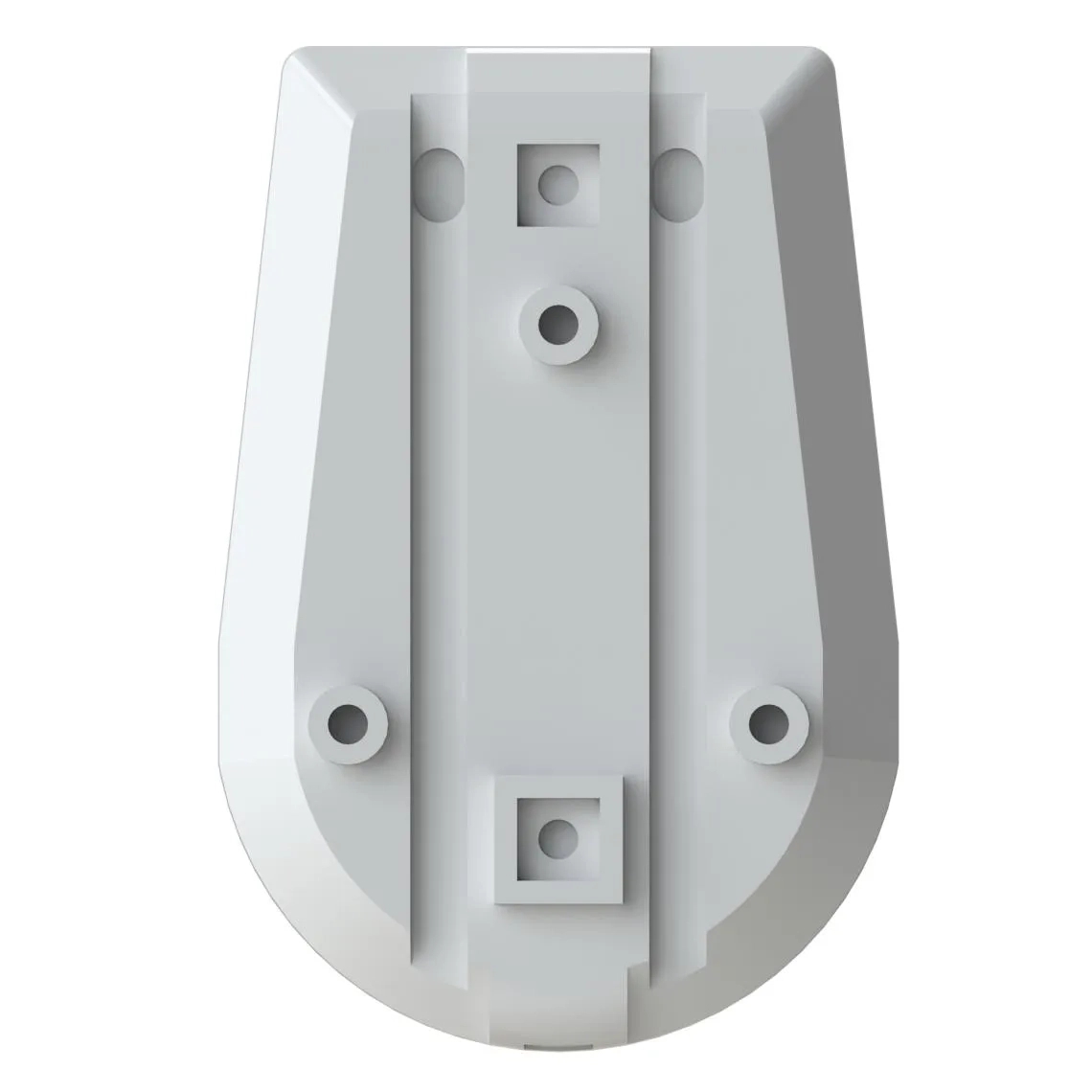

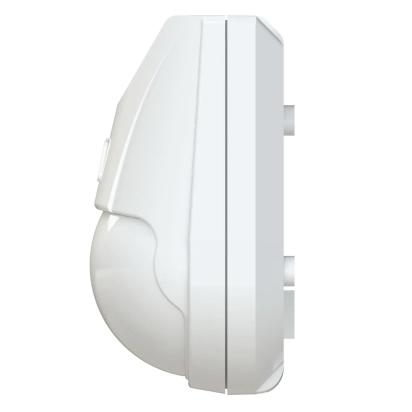

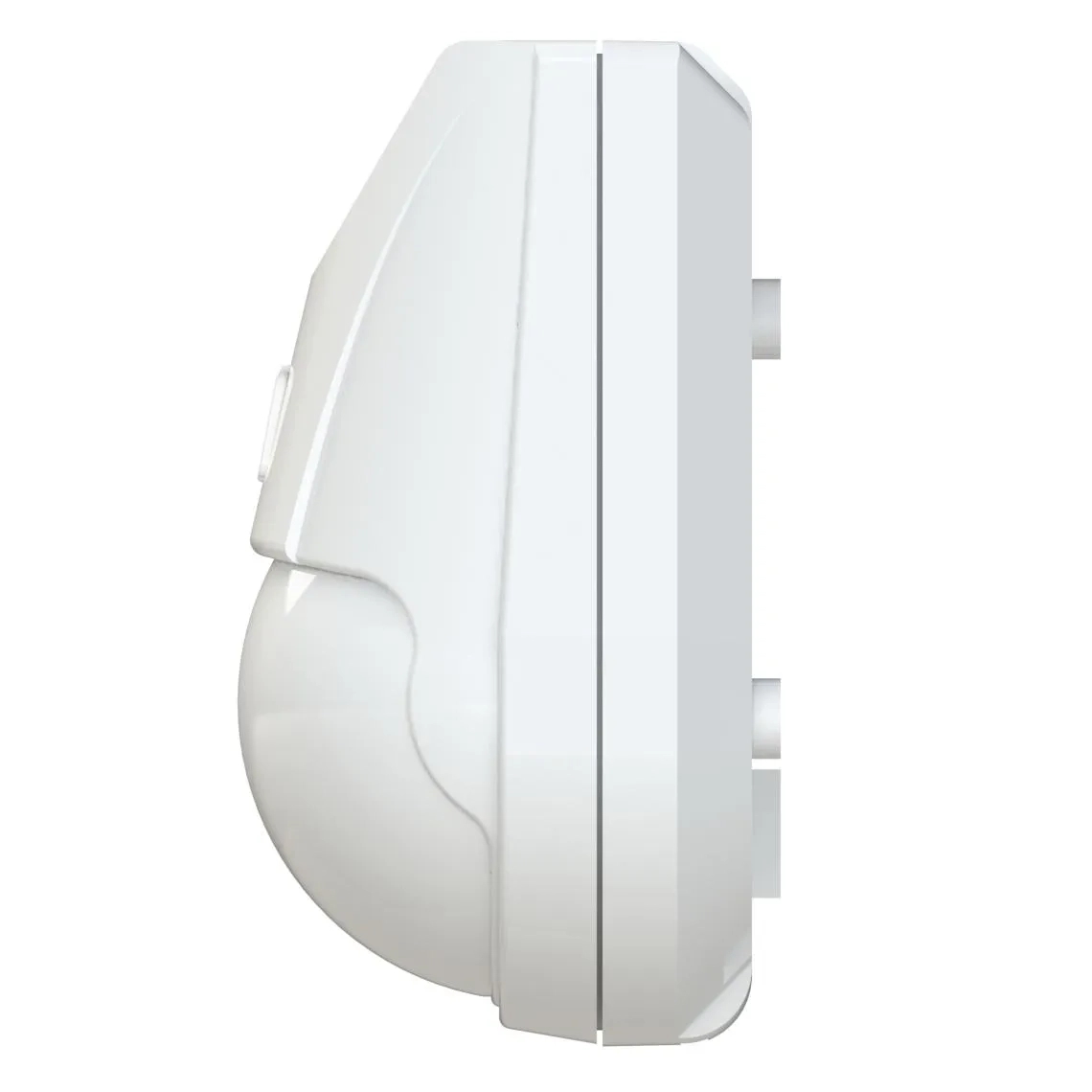

Rielta Pyrone-4D - Passive Infrared Sensor

Pyrone-4D detects an intrusion in the secured indoor area.

Features:

Wide angle with PET immunity up to 20 kg

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive Infrared detector Pyrone-4D - 1 pc.

Operational documentation

Code: sby00002608

Pet immunity: 20 kg

Voltage: from 8 to 30 V

Current consumption: 12 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 88х60х42 mm

Installation height: 2,3 meters

Maximum detection distance: 10 meters

Case opening control: No

Detection zone: Volumetric

Refer Catalogue For More Information
