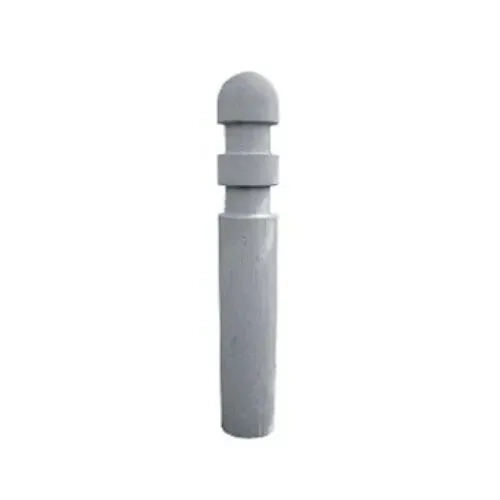

KK Cylindrical Bollard Type I

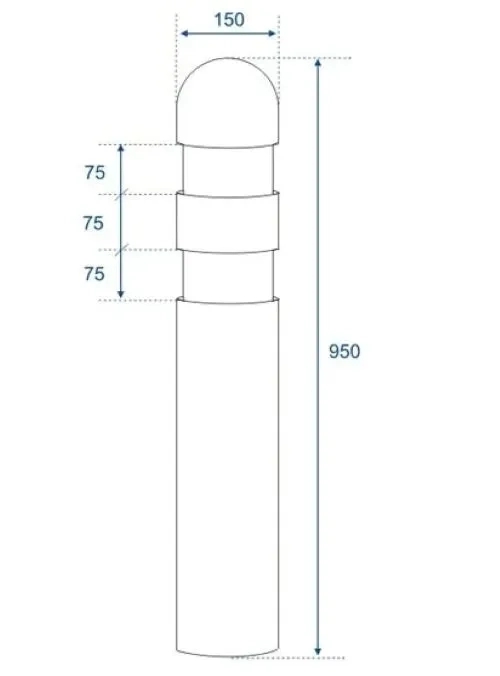

Overall Dimensions: 950 mm Height X 150 mm dia,

The bollard is reinforced with 4 Nos 8 mm dia 950 mm long tor steel bars, 4 Nos 12 mm dia 450 mm long tor steel bars, & 4 Nos 4 mm dia stirrups at 150mm c/c

The bollard is manufactured with cement concrete of M-30 grade by vibro compaction method using FRP/steel moulds, so as to achieve shuttering finish
