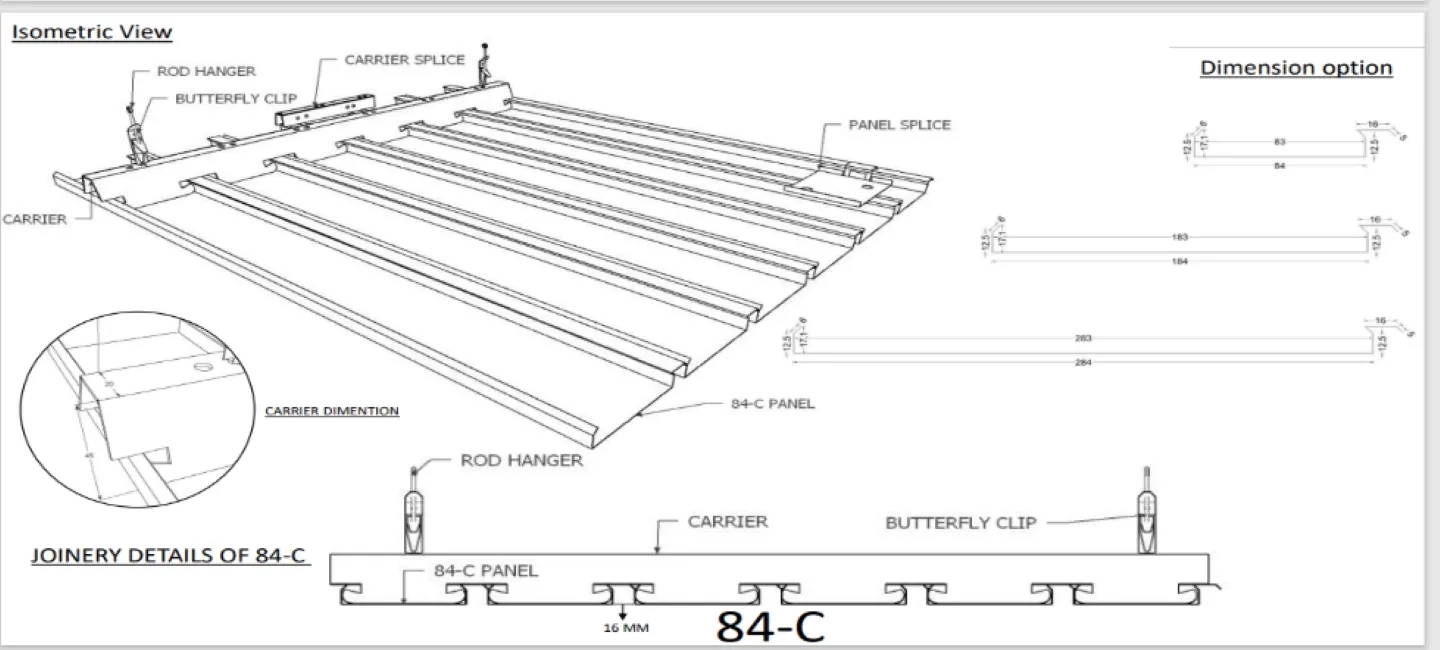

The Oculus 84C/184C/284C ceiling system consist of box shaped panels, panels profile clipped on carrier, consisting a 24mm wide flange that are closes the 16mm joint between the panels, system provides the module of 100mm/200mm/300mm. The material being aluminium/galvanized steel (panels & carrier) are 100% recyclable, Light in weight and strong.
Specification
84C Panel : Width - 84 mm, Length - 500 to 5000 mm, Module - 100 mm
184C Panel : Width - 184 mm, Length - 500 to 3000 mm, Module - 200 mm
284C Panel : Width - 284 mm, Length - 500 to 3000 mm, Module - 300 mm
