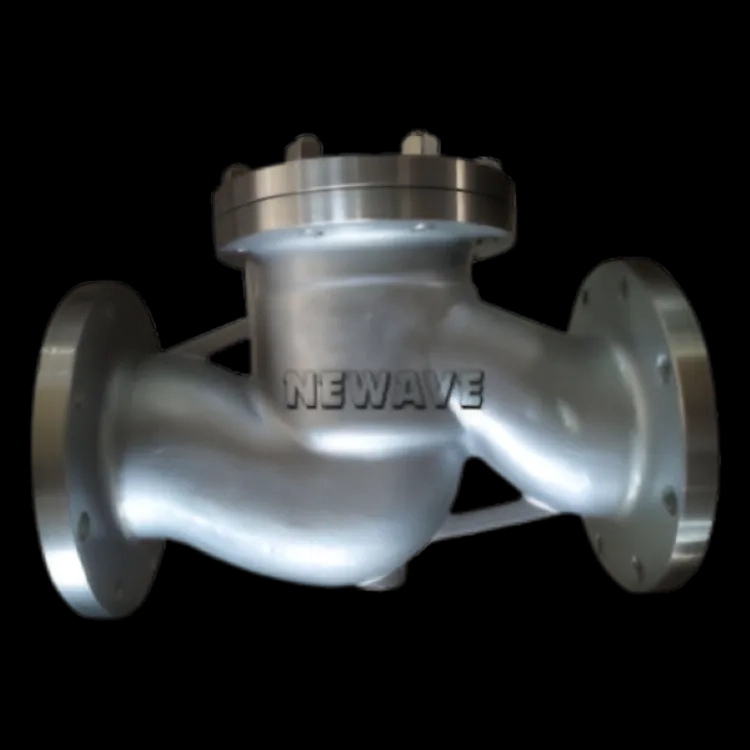

Newave Lift Type Check Valve

Precision Engineering : Built with precision machining and tight tolerances, our Lift Type Check Valve delivers precise operation and dependable sealing. The lift mechanism responds swiftly to changes in flow direction, minimizing pressure drop and ensuring smooth fluid flow in the intended direction.

Corrosion Resistance : Engineered for durability in harsh environments, our Lift Type Check Valve is resistant to corrosion and erosion. Its corrosion-resistant materials and protective coatings provide added protection against corrosive fluids, ensuring reliable performance over time.

Easy Installation and Maintenance : Designed for easy installation and maintenance, our Lift Type Check Valve minimizes downtime and reduces operational costs. Accessible components and straightforward servicing procedures make it simple to keep your valve in top condition, ensuring long-term reliability and efficiency.

Testing Standard : API1598/ BS5 146/BS6755 [BSEN ISO 12266] Face To Face: ASME B.16.10/DIN End Connection : Flanged End - ASME B 16.5 Butt Weld End - ASEM B 16.25 Socket Weld End - ASEM B 16.11 Screwed End - BSP / NPT

ANSI B 1.20.1 / ANSI B 2.1 Pressure Rating : ANSI/BS

ASA 125#, 150#, 300#, 600#,

900#, 1500#, PN16/PN40 Material Of Construction : [Body / End Connector Piece] Cast Iron: IS 210 Gr. FG 200 Carbon Steel: ASTM A 216 Gr. WCB Stainless Steel: ASTM A 351 Gr.CFB/BM/3/3M Forged Carbon Steel: ASTM A 105 Forged Stainless Steel: ASTM A 182 Gr. F 304 Disc: Solid Disc Gasket & Packing: P.T.F.E./Graphite/Asbestos/Spiral Wound/Ring Joint Size: 15mm To 300mm & Above Modes Of Operation : Automatic With Return Pressure
