Nominal sizes : 250, 300, 400, 500, 600, 625
Volume flow rate range : 20 – 700 l/s or 72 – 2520 m³/h
Application :
Type DLQ ceiling diffusers are used as supply air or extract air diffusers for comfort zones
Attractive design element for building owners and architects with demanding aesthetic requirements

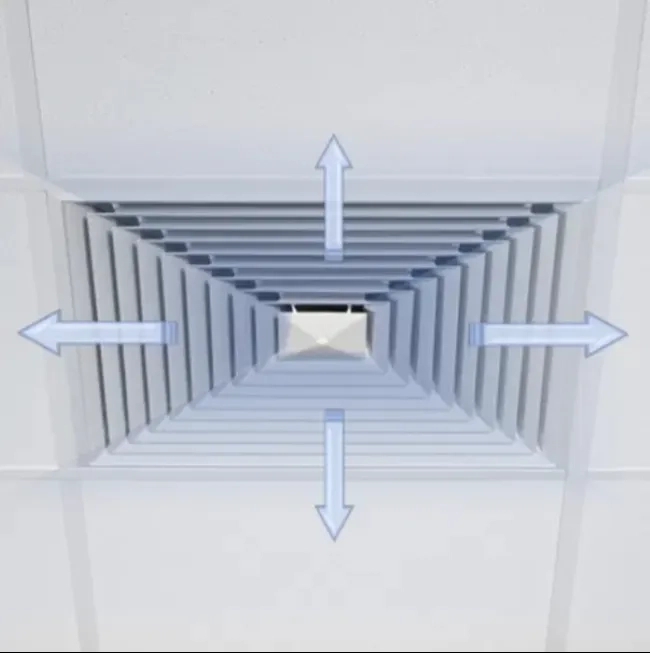

Horizontal four-way supply air discharge for mixed flow ventilation
High induction results in a rapid reduction of the temperature difference and airflow velocity (supply air variant)
For variable and constant volume flows
For supply air to room air temperature differences from –10 to +10 K
For room heights up to 4 m (lower edge of suspended ceiling)
For all types of ceiling systems
Refer catalogue for more information
