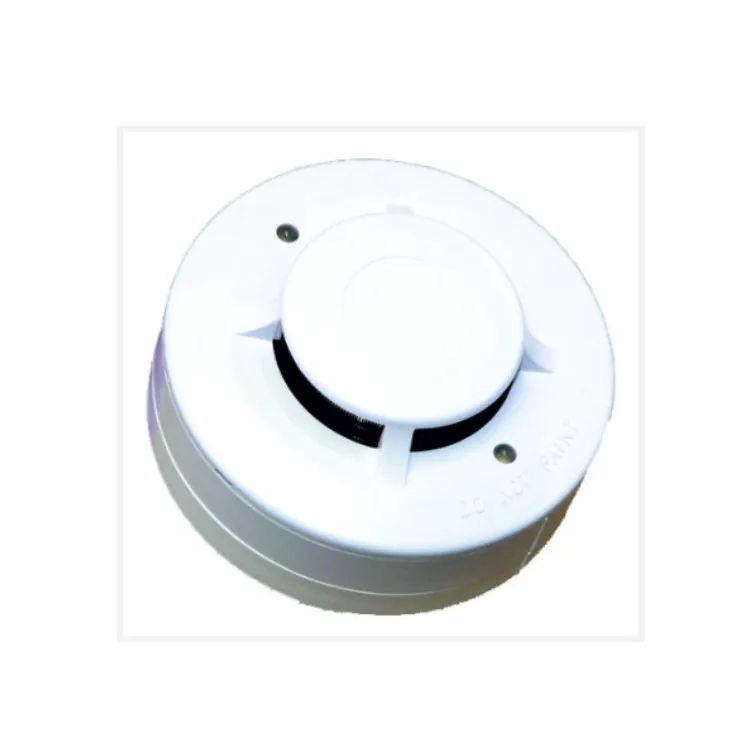

Ravel Fire 4 Wire Smoke Detectoe RE 326Series

Dual LED’s for 360 visibility.

Advanced detection and communication protocol.

Easy installation and maintenance.

Sleek low -profile housing design.

Regular 100mm Base.

EN-54 Standard.

Electrical Specification :

Operating Voltage: 10 ~ 28 V DC

Operating Temperature: 0 °C to 37.8 °C

Relative Humidity: 10% to 90%

Reset Voltage: Less than 1 V

Standby Current: 85 µA

Start-Up Time: 30 Seconds

Cycle Time: 28 – 35 Seconds

Alarm Current: 60 mA (Max.)

Remote Output: 15 mA maximum, open collector

Smoke Sensitivity: 0.10 to 0.16 dB/m

Thermal Rating: 57 °C (135 °F)

Alarm Contact Rating:

C, NO: 1 A @ 30 VDC; 0.5 A @ 125 VAC

C, NC: 1 A @ 30 VDC; 0.5 A @ 125 VAC (Optional, on order basis)

Mechanical Specification

Height: 46 mm with base

Diameter: 100 mm dia

Weight: 130 g with base

IP Rating: IP42

Refer Catalogue for more Information.
