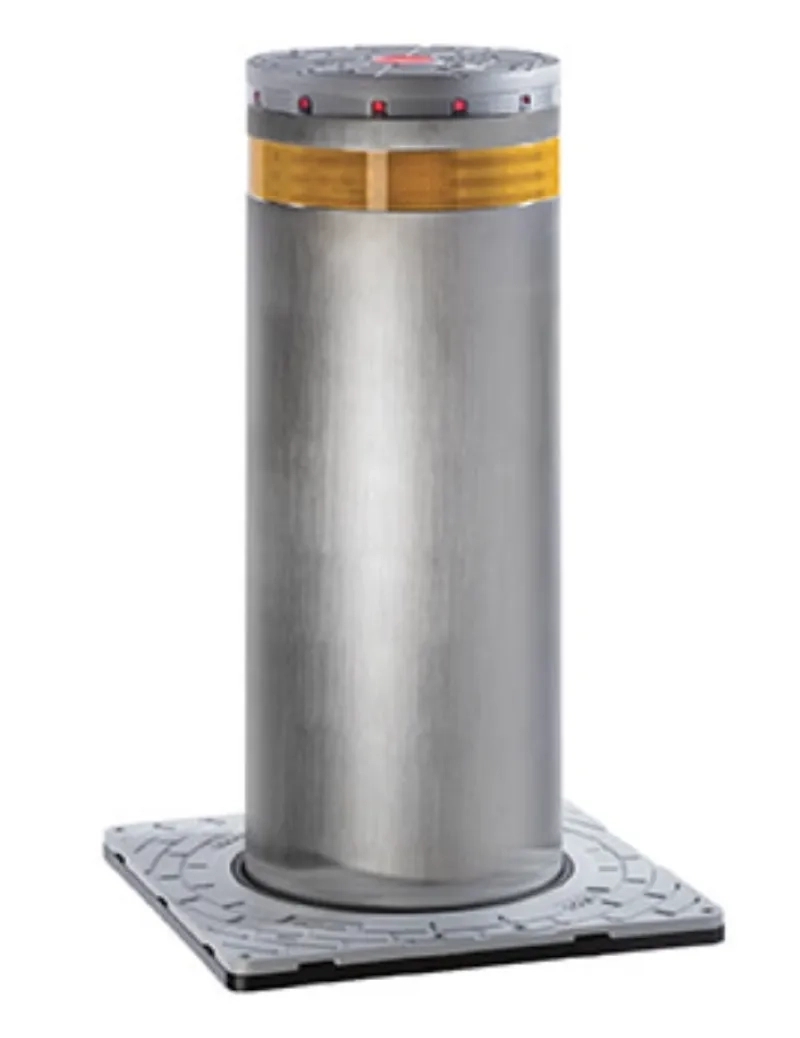

Faac Retractable Security Bollard J275 HA 2K20

Performance certified according to PAS 68 and IWA 14-1 standards. Able to withstand impact with a 7500 kg truck driven at 48 km/h in a double unit configuration

Guaranteed for high frequency use

Simplified maintenance (possible with just one person)

Hydraulic control unit integrated in the bollard

Gentle stop function to ensure a gentle stop on the low limit switch

Anti-tamper head and protected by a security lock with encrypted key to prevent unauthorized lowering

Type of operator: Hydraulic Unit

Cylinder height from ground: 800 mm

Cylinder diameter: 275 mm

Cylinder treatment: Cataphoresis and polyester painting

Aisi 316 satin-finish stainless steel

Reflective strip height: 55 mm

Standard reflecting strip colour: White

Rising time:~8 s

Descent time:~4,5 s

Emergency descent device: YES (OPTIONAL)

Emergency descent time:~2 s

Rising obstacle detection device: YES (OPTIONAL)

Release device: yes

Slow lowering: yes

Power supply voltage:220-240V – 50/60Hz

Max. power: 575 W

Refer Catalogue for more information.
