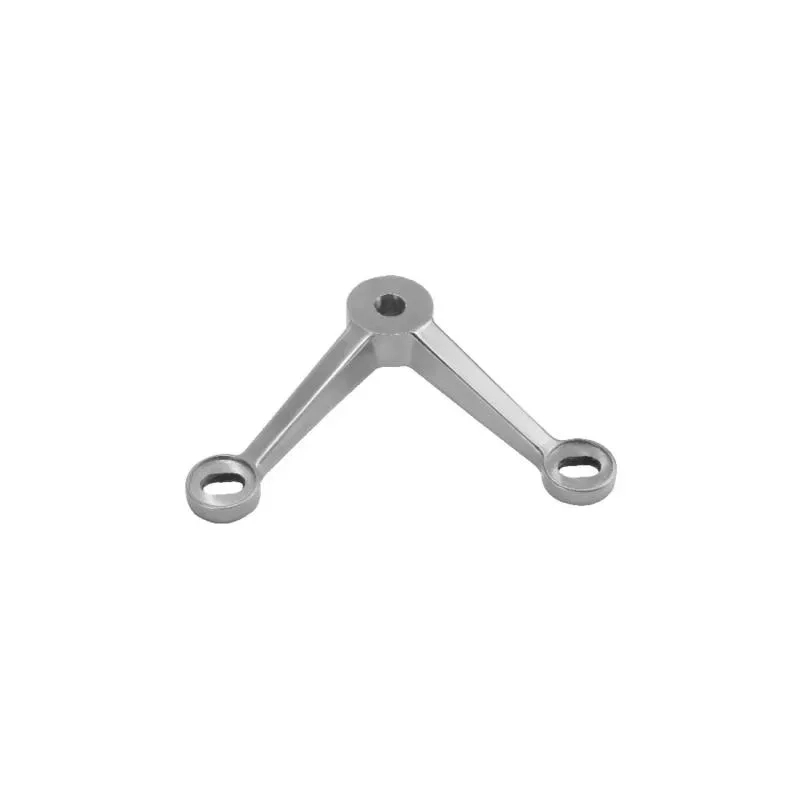

Ozone 2 Way Spider Without Fin 90° | Finish: Polished Stainless Steel

Designed for corner glass installations, this two-arm fitting secures two glass panels at a right angle (90°). Suitable for structural glazing and glass partition systems.

SKU : OSP-B-222A STD PSS

Features :

2 Way Arm Spider fitting (90 Deg)

To hold Glass with Wall/Frame

Compatible Glass Thickness : 10-17mm

Used with type of Routel (Flat Head / Center Sunk Type)

Flexible arm types and mounting options allow use in custom architectural layouts

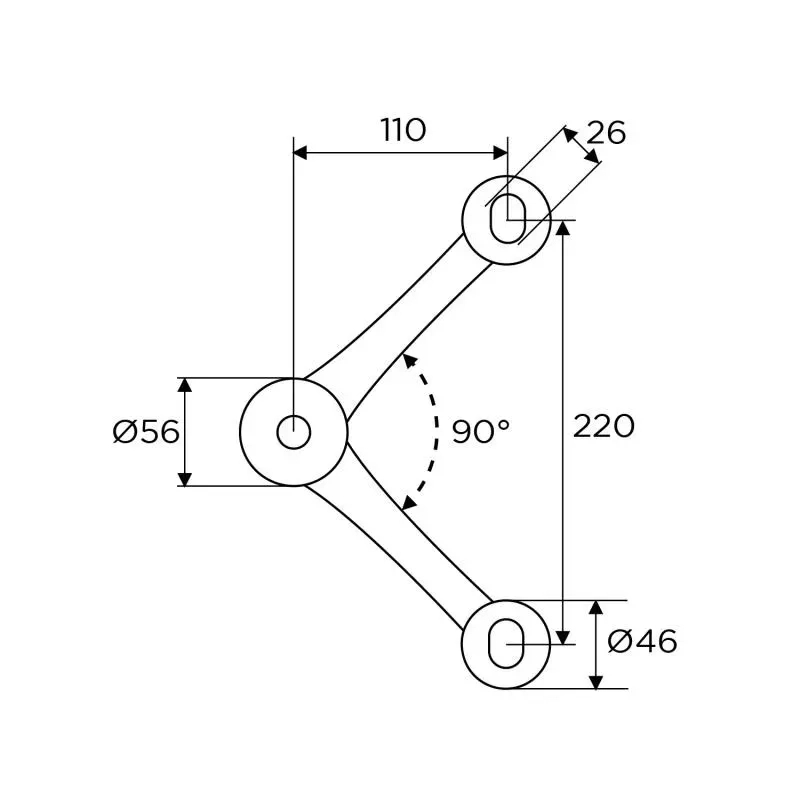

CTC : 220mm

Ease of Installation & Maintenance

Technical Specifications :

Material : SS-316

Finish : PSS & SSS

USP :

Spider fittings without fin support are crucial in applications where aesthetics and unobstructed transparency are a priority.

Applications :

Frameless
