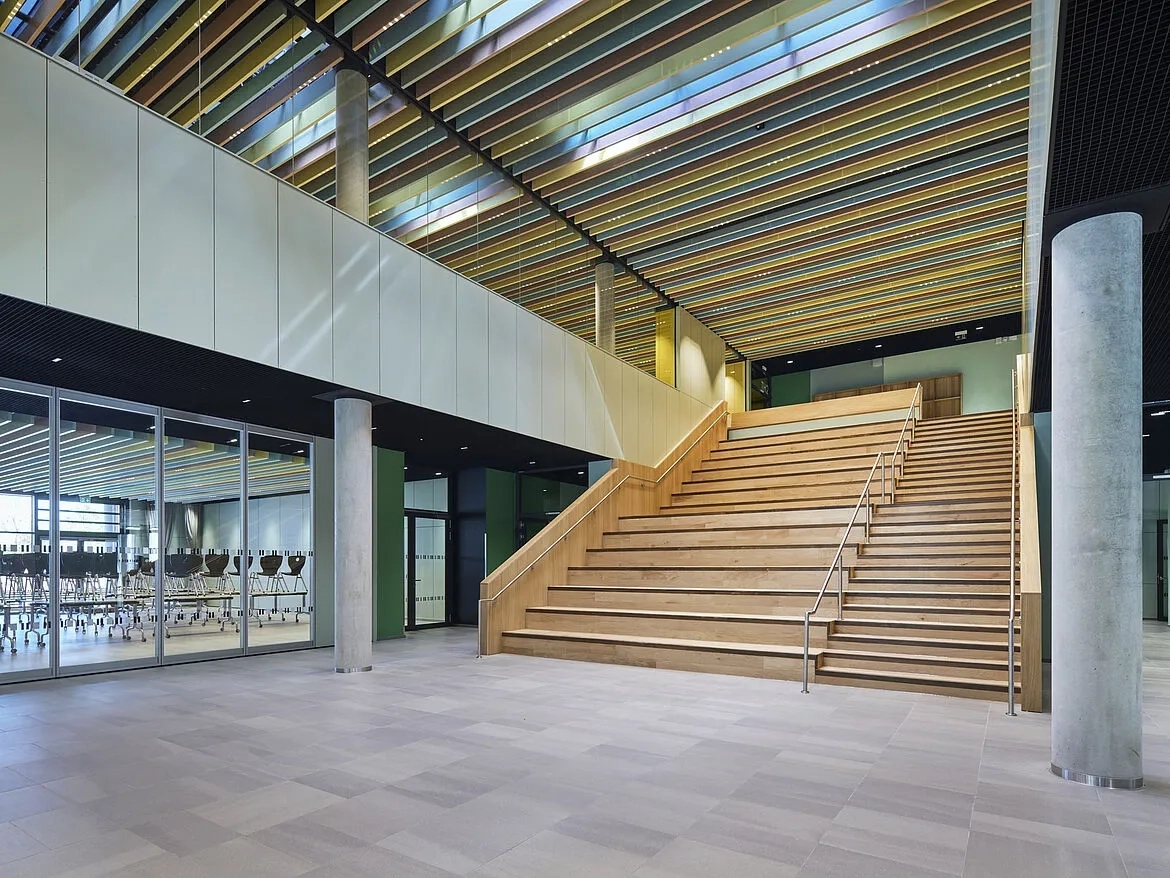

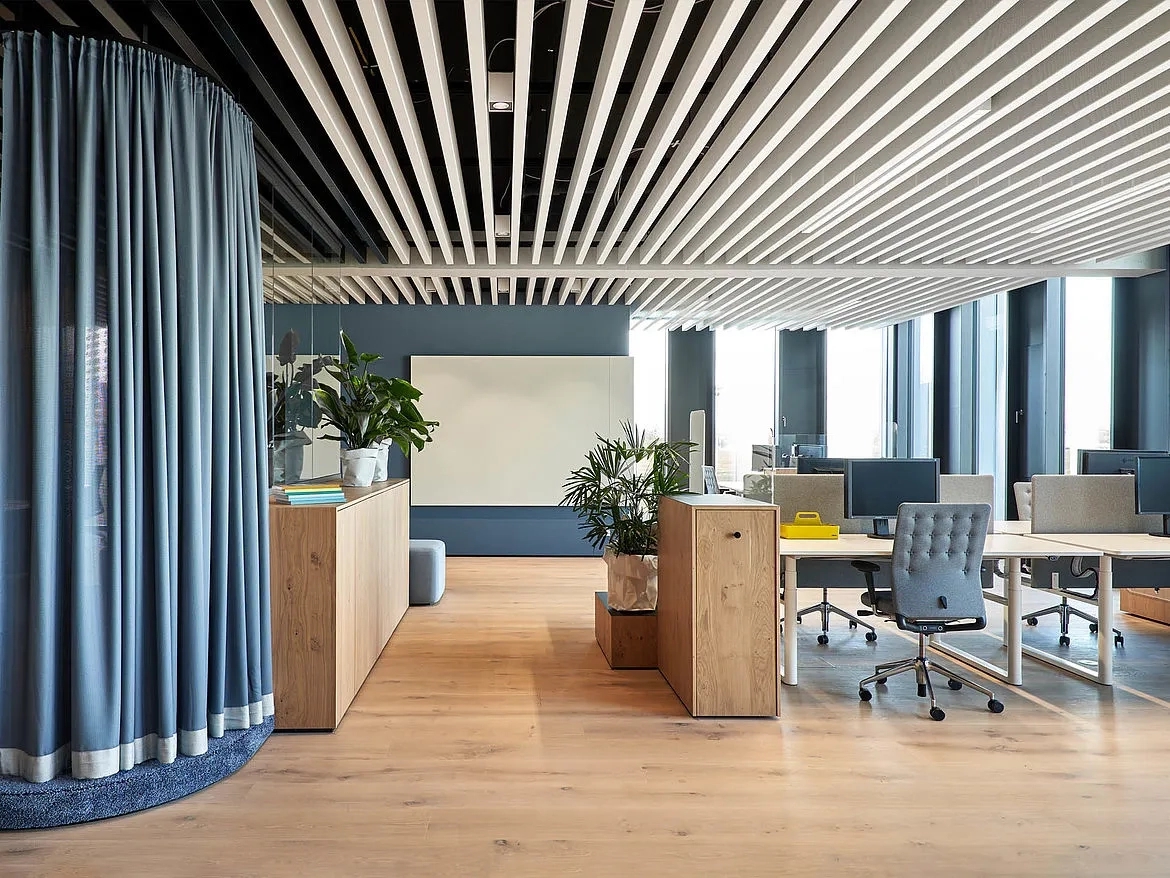

Durlum POLYLAM Vertical Baffle System

This linear, open baffle ceiling offers a versatile range of design options and can be used as a cross pattern or as a cooling ceiling POLYLAM dur-COOLTEC. Through the number, size and perforation of the louvres, and through a range of different fillers, POLYLAM can satisfy demanding acoustic requirements. Printed in a wooden look (dur-GRAPHICS), phenomenal creative options are possible.

Linear lighting and spot-lighting can be integrated perfectly

Also available in a hingeable and/or movable version

Can be used in buildings with activated concrete cores

The open ceiling is acoustically effective

Dimensions:

Width: 40, 63, 100 mm (other widths of 30 – 100 mm on request)

Length: 300 – 3800 mm (special versions also up to 4000 mm)

Height: 100 – 360 mm (special 30 – 800 mm versions also available on request (in two parts))

Total installation height: lamella height + ~ 63 mm (for sub-frame)

Module: free choice

Minimum module spacing of louvres: louvre width + 50 mm

Material and surface:

Baffle ceiling: galvanised steel sheet (standard), white powder-coated (RAL 9016 matt). Other (RAL) colours and surfaces with printing, e.g. wood grain finish (DUROPLAN W), or anodised aluminium (DUROPLAN A050, DUROPLAN A080) on request.

Acoustics and perforation:

Baffles can be perforated along their flanks (standard: RV-L6).

The absorption surfaces can be adapted to suit building requirements using different baffle spacings, heights and widths as well as with different fillings (mineral wool in a PE sack or polyester fleece).

Fire behaviour:

Steel sheet (powder-coated, smooth or perforated): DEFEO with fire protection classification A2-s1.dO (non-combustible)

Refer Catalogue for more Information.
