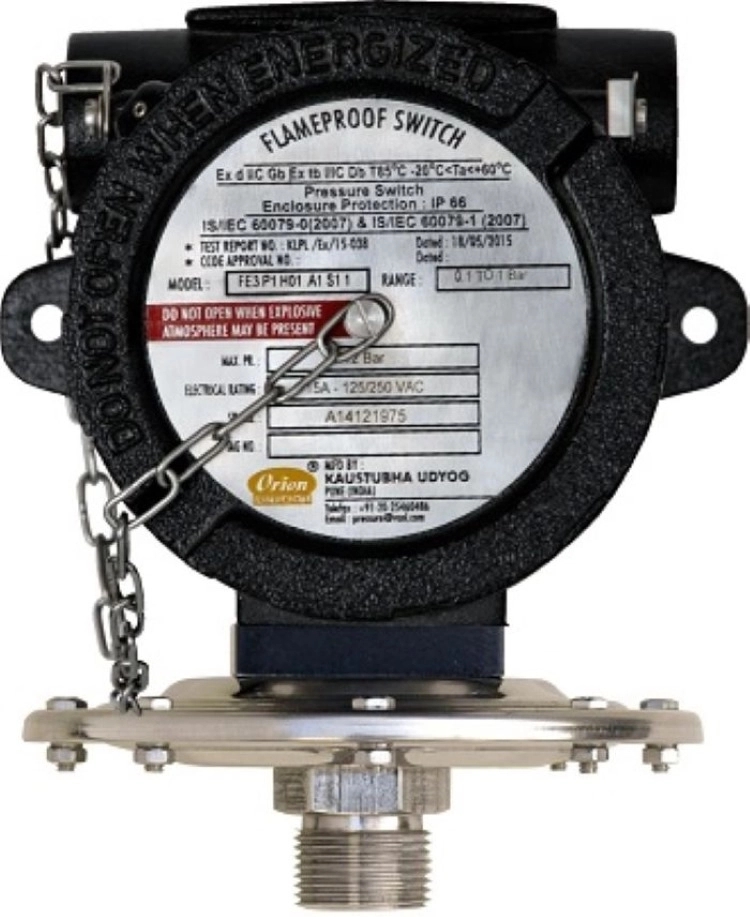

FE Low Range High Proof Pressure Switch

These switches have been designed for use in hazardous areas and for severe applications in the Oil and Gas sectors like oil and gas pipelines, petrochemical plants, refineries and generally in atmospheres which are potentially explosive. All switches are designed for gas group IIC, the most severe of the explosive gases, and hence can be used in lower severity atmospheres, typically in IIA and IIB. With grey cast iron enclosures, these can also be used in mines.

Storage Temp. : Atmospheric temperature

Operating ambient Temp. : 0ºC to 60ºC

Media Temp.:- for non-metallic diaphragms 80ºC max ,higher with metal diaphragms

Set point repeatability : +/- 1% over full range

Enclosure details : Al grade LM6 / Grey Cast Iron / Stainless Steel Casing & Cover

Grey CI enclosure for mines (Group I applications)

Switch output 1 SPDT (2 SPDT on request).

Enclosure Specifications :Ex d IIC T6 Gb; Ex tb IIIC T 85°C Db (-20°C ≤ Ta ≤ +60°C) IP66 Protection : IP66 Standard Complies to :

IS/IEC 60079 - 1: 2007

IS/IC 60079-0:2011, 60079-1: 2007 and 60079-31: 2008.

Grey CI enclosure for mines (Group I applications)

Switch output 1 SPDT (2 SPDT on request).

Applications : Oil & Gas, Petrochemical, Refineries, Mines, Bulk Drug & Pharma, Chemical Industries

Refer Catalogue for more information.
