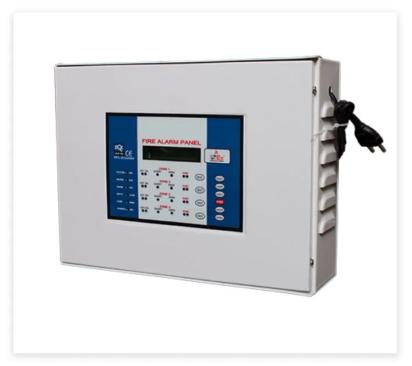

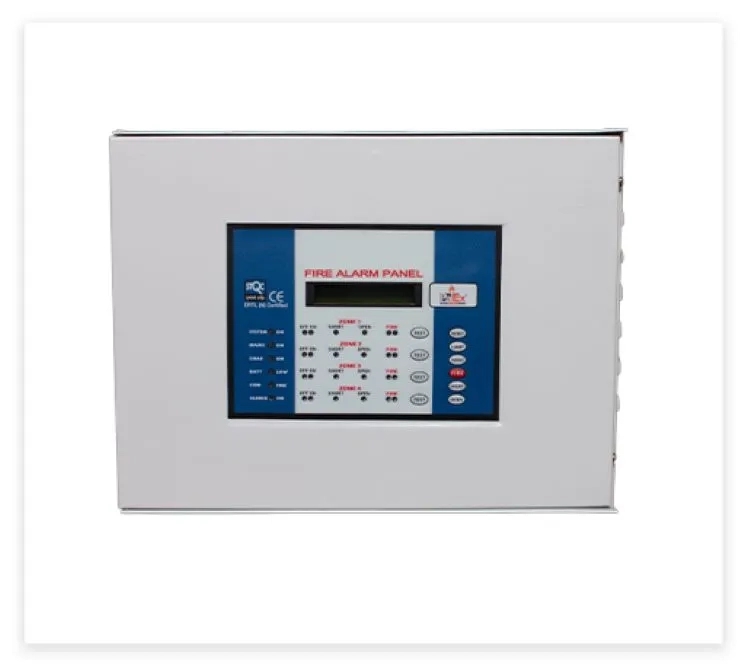

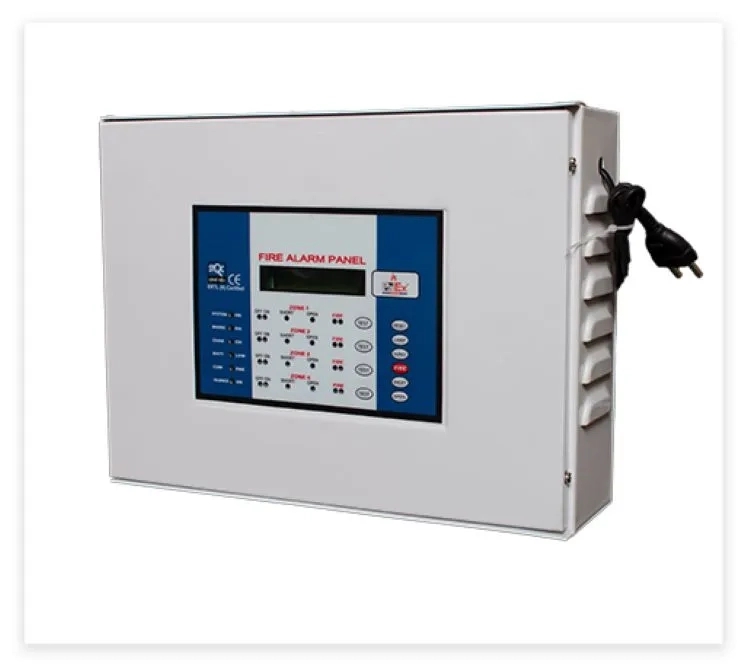

Palladium (04 ZONE) - Control Panel

The PSS-04Z is an 4-Zone control panel. It is indicating equipment forms the central part of a fire detection and alarm system. The 2-wire is compatible with PSS-04Z devices. And it is the central part of conventional fire alarm system, designed for applications requiring gas leak detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button.

Operates on 230 V AC, 50 Hz AC supply

Battery backup with built in charger

Fire, fault status in unambiguous colored LED indications

16 x 2 line dot matrix LCD display

Zone wise fire, open, short LED indications

Model No.: PSS – 04Z

Operating voltage Range: AC 220v 50Hz ± 10%, DC 24 v 1.5 amp

Operating Temperature: -0º C to 50º C

Operating Humidity: 95% (non-condensing)

Hooter Output: 1 A (24v DC)

EOL: 4k7 ohm, 1 per zone

Construction: 1.8 mm CRCA sheet duly power coated

Dimension: H 245mm * W 315mm * D 90mm

Color: Caramel White
