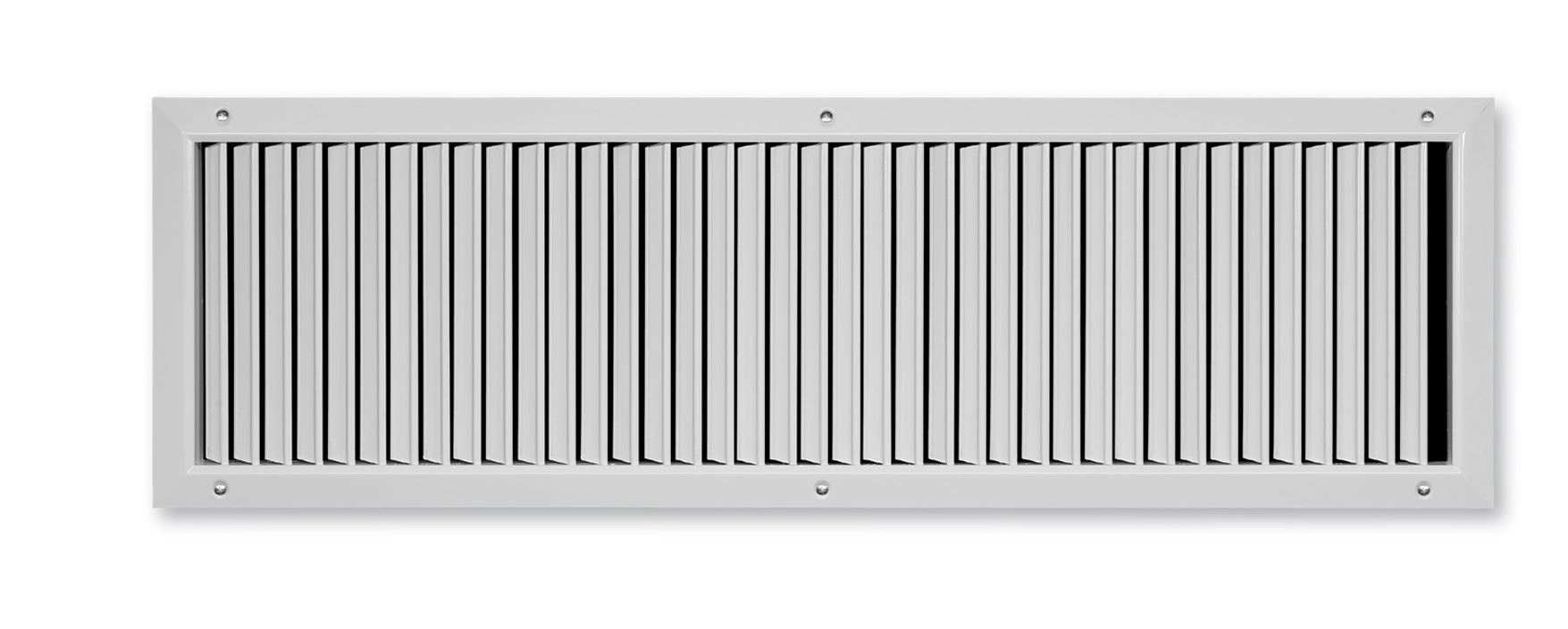

Trox TRS Ventilation grille

Variants -

Fixing :

Countersunk holes

C11: Concealed screw fixing

Parts and characteristics:

Sloped border with chamfered inside edge

Individually adjustable, vertical blades

Factory fitted perimeter seal

Attachments:

AG, AS, D, DG: For volume flow rate balancing and for air direction control

Accessories:

Installation subframe: For the fast and simple installation of ventilation grilles

Filter casing: Frame with filter element and spring clip fixing

Application:

Ventilation grille of Type TRS as supply air or extract air variant for comfort zones and industrial zones

Directed supply air discharge for mixed flow ventilation

Blades are adjustable to meet different local requirements

For variable and constant volume flows

For supply air to room air temperature differences from –12 to +4 K

For installation in walls, sills and rectangular ducts

Special characteristics:

Individually adjustable blades

Countersunk holes or concealed screw fixing

Optional installation subframe and casing for the fitting of filter media

Nominal sizes:

Nominal length: 225, 325, 425, 525, 625, 825, 1025, 1225 mm

Nominal height: 75, 125, 225, 325 mm

Materials and surfaces:

Border and blades made of galvanised sheet steel

Border and blades powder-coated RAL 9010, pure white

P1: Border and blades powder-coated, RAL CLASSIC colour

S7: Border and blades made of galvanised sheet steel, not powder-coated

Refer Catalogue For More Information
