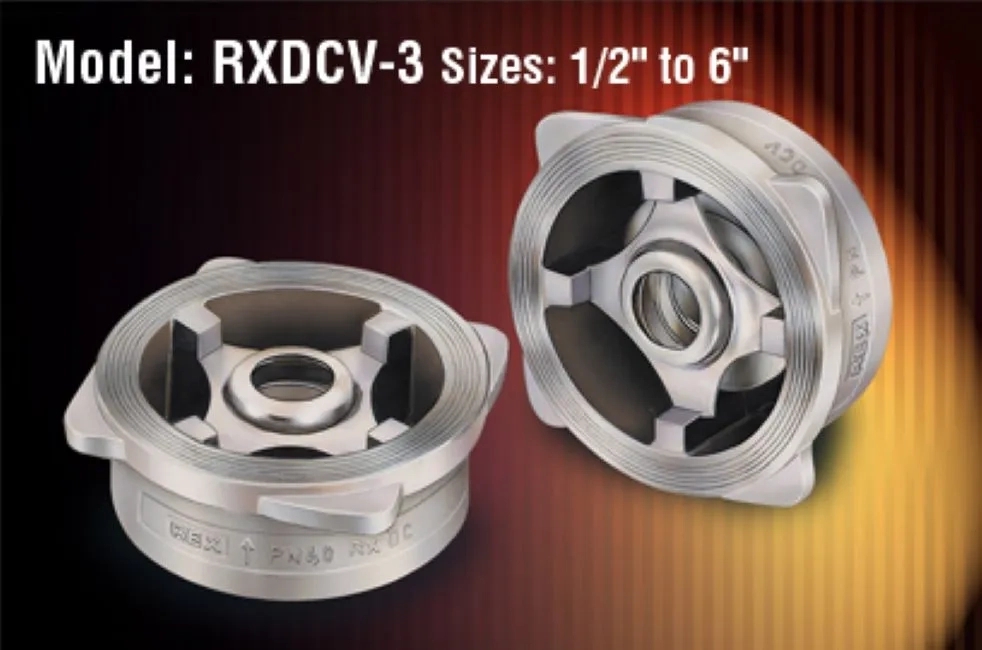

REX Steam Products Disc Wafer - Check Valves

Check valves are self-contained and self-actuating valves that act automatically to prevent flow reversal. REX DCV-Series Disc Check Valves are an excellent alternative to conventional check valves for several reasons. Its design is inherently lighter and more compact, making it less expensive to install and to ship. All valves are seat tested before thery are shipped from the factory. It provides a maintenance free effective solution for preventing reverse flow of condensate discharged from traps. Fit easily between two pipe flanges, can be installed in any direction, with good, tight shut-off. Recommended for all trap installations draining into flooded return lines to prevent return flow especially during a shutdown.

THE BENEFITS : Wide range of uses across a variety of fluids such as, liquids gases & vapours

The unique cam design of the body, enables it to fit between a wide varieties of flanges

The disc is spring assisted. This design is much more efficient in reducing pressure drop, drastically reduces water hammer

Simple & compact design, choice of metal-to-metal or soft seals, use of approved stainless steel materials and quality manufacture, makes it versatile.
