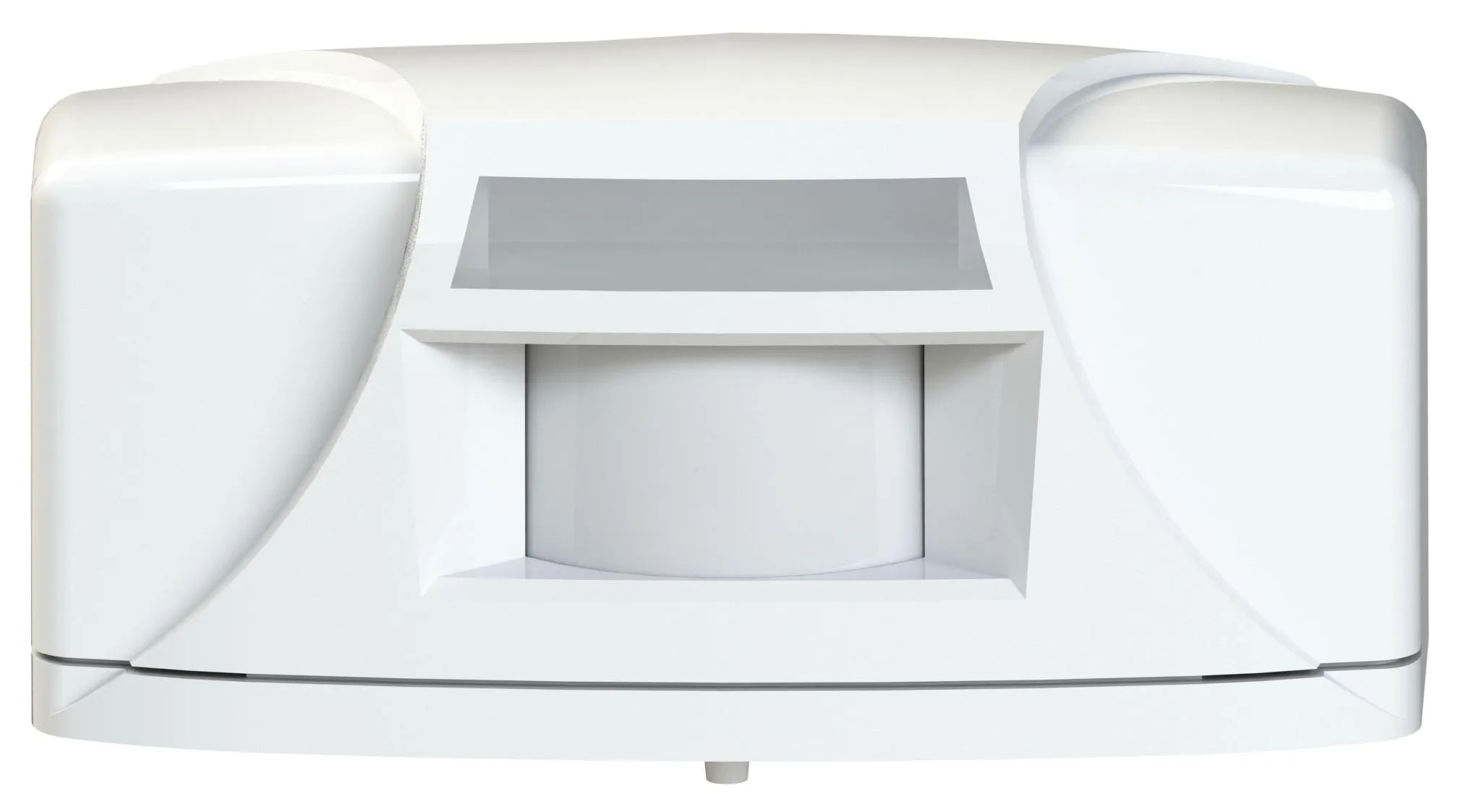

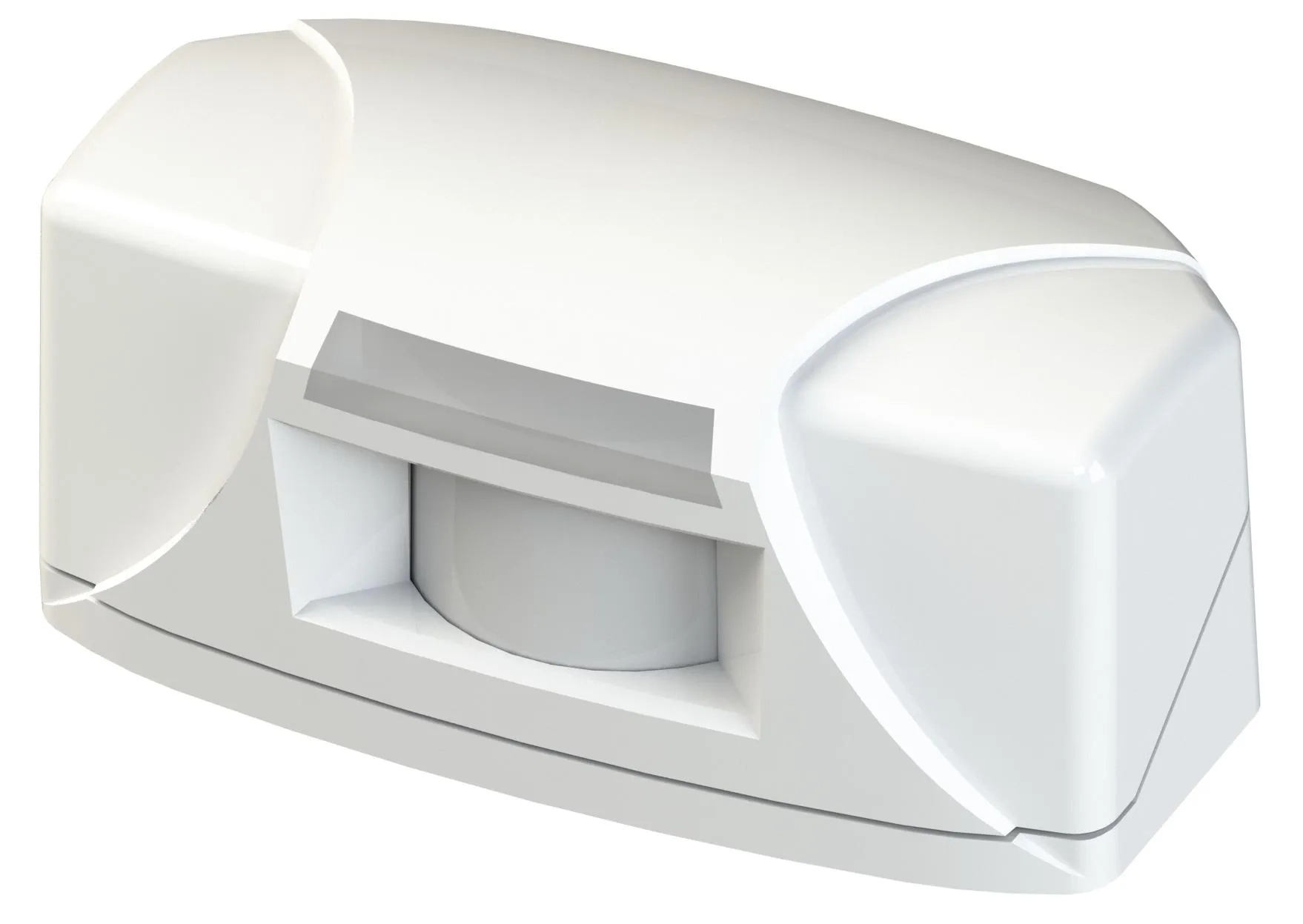

Rielta Pyrone-SH - Passive Infrared Sensor

Passive infrared detector Pyrone-SH.

Features:

Vertical curtain

The detector can be installed above the doorway, as well as directly in the corners of window frames, door frames without any bracket

Alarm output: energized Form A (NC) relay

Contents of the kit:

Passive infrared detector Pyrone-SH - 1 pc.

Operational documentation

Code: 00000009689

Pet immunity: No

Voltage: from 8 to 30 V

Current consumption: 10 mА

Temperature range: from -30 °C to +55 °C

Protection class: IP41

Dimensions: 80х47х40 mm

Installation height: to 5 meters

Maximum detection distance: 8 meters

Case opening control: No

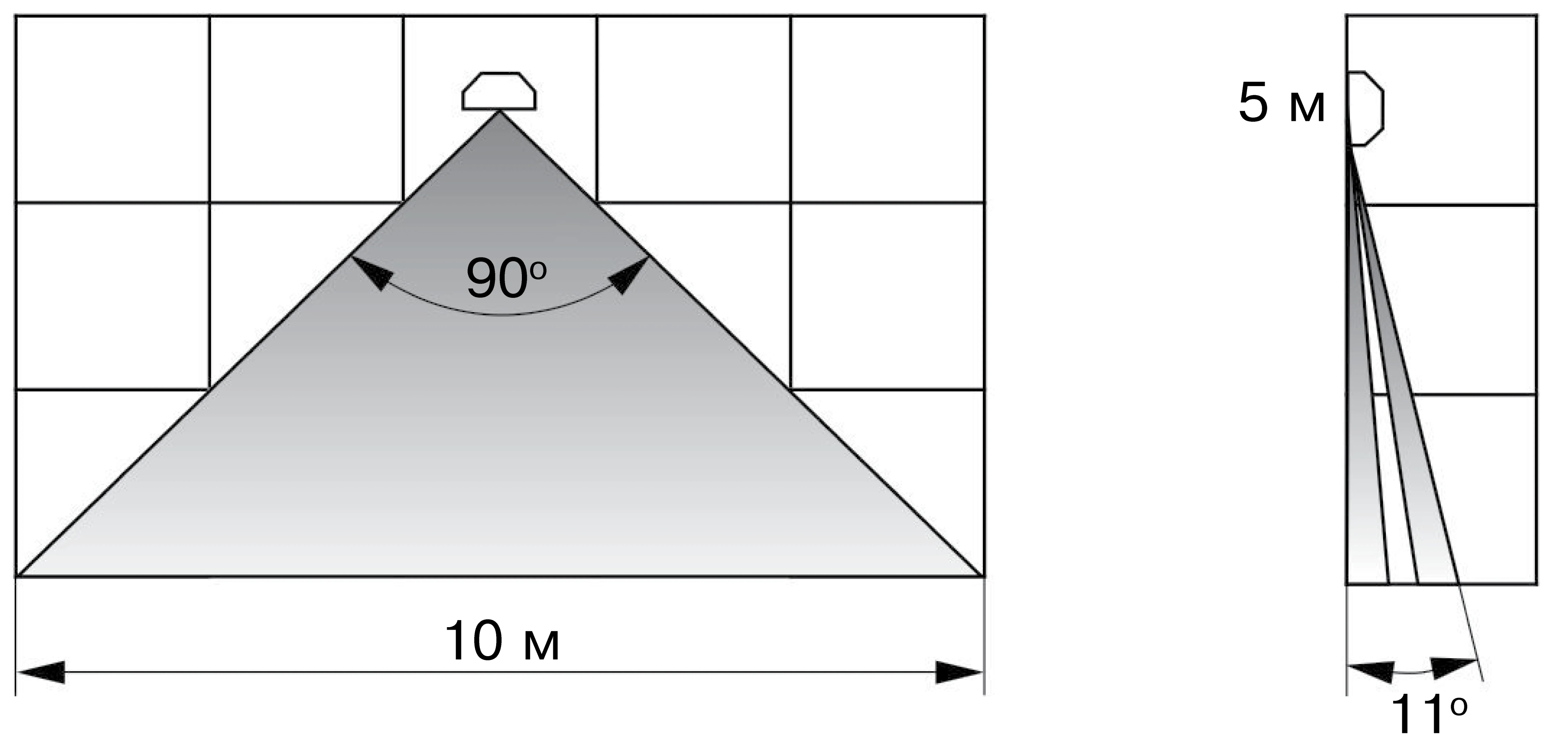

Detection zone: Superficial

Angle of view of the detection zone in the horizontal plane: 90°

Refer Catalogue For More Information
