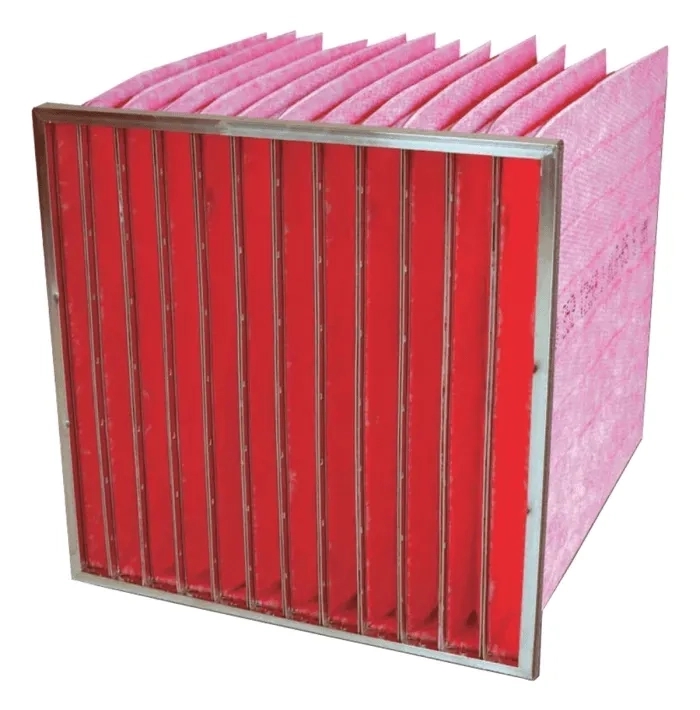

O2Cure Fine Filter EU5/F5 – High Efficiency Air Filter for Clean Rooms & HVAC | O2Cure

Superior Air Filtration for Cleaner, Healthier Spaces:

The EU5/F5 Fine Filter by O2Cure is engineered for high-performance air filtration, capturing particles up to 5 microns with up to 99% efficiency. Designed for use in clean rooms, HVAC systems, and critical industries, this filter ensures superior indoor air quality and system protection.

Crafted for precision air purification, the EU5/F5 Fine Filter is built using deep-pleated synthetic media and a sturdy aluminum frame. It effectively handles medium to fine dust particles, making it suitable for secondary and final filtration across industries like pharmaceuticals, electronics, food processing, and advanced HVAC systems. With optimized airflow, low pressure drop, and easy-clean features, it ensures consistent indoor air quality and system efficiency.

Construction Details:

Filter Media : Non-woven synthetic (optional: synthetic paper media – mini pleat)

Media Support : Aluminium/GI mesh, HOPE mesh, or plastic combs

Frame Material : Aluminium (Flange or Box type)

Sealant : Epoxy resin

Gasket : Synthetic rubber or PE foam

Max Temperature : Up to 60°C

Airflow Direction : Flange to cassette (optional reverse)

Performance Highlights:

Filtration Efficiency : Up to 99% at 5μm (equivalent to MERV 10 – ASHRAE 52.2)

Pressure Drop : Initial 6.5 mm, Final 20 mm (WG)

Tested As Per : ASHRAE 52.2 / EN 779 / ISO 16890

Lifespan : Approx. 12 months

Dedusting Option : Clean using compressed air jet or vacuum (no brush)

Available Sizes:

Wide range of standard panel and pocket sizes available from 305x305x305 mm to 610x610x500 mm with airflow capacities ranging from 500 to 2000 CFM.

Applications:

Secondary filtration in clean room industries (Electronics, Pharma, Medical Devices)

Final filtration for BOPP film, telecom, food, and tobacco industries

Ideal for superior commercial & residential air conditioning systems
