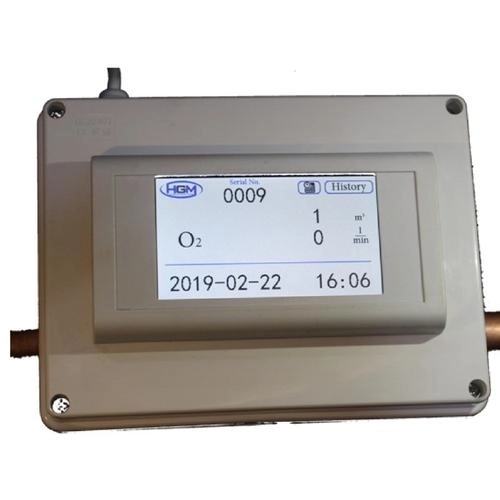

Helix Medical Gas Monitoring Systems - Gas Consumption Counter by HGM

To measure the real time gas consumption of Gases in lpm and cumulative gas consumed in cubic meters

Ideal to measure the gas consumption by Individual Departments and Total Gas Consumption by entire Hospitals / Institutes

Accurate evaluation is the first step for greater productivity – We bring you easy to use , high efficiency devices to improve the output from your compressed air systems in a significant manner

This equipment is mainly designed to measure gas consumption at each ward

Gas is measured proportionally and displayed in liters per minute

Precision of measurement is in range of +/- 5% within set measuring range

This unit also memorizes consumption for the past 6 months

Features:

Color touch screen 4.3 “

Pressure measurement measured gas

Current flow

Aggregation of gas consumption

History of consumption for the last six months

Ball valves to cut off the gas supply

Ball valves to cut off the gas supply

Accuracy of + / – 3%

Salient Features:

Measuring Range from 0 – 500 lpm or as per request

Gas Consumption Counter is equipped with Pressure Monitor and with Alarm Function

Can also measure the consumption of Gases and retrieve data on Daily, weekly, monthly basis for 6 months from History log

Real-time Gas flow is displayed in LPM and cumulative gas consumption is displayed in cubic meters

Green LED indicator for System OK

Red LED indicator for Alarm condition

It is a Class IIb Medical Device

12 V DC operated

WorkingPressure: 0 – 7 bar

Dimensions: (WxHxD) 350x460x90mm

Possible ranges:

0 – 100 gallons per minute

0 – 200 gallons per minute

0 – 500 liters per minute
