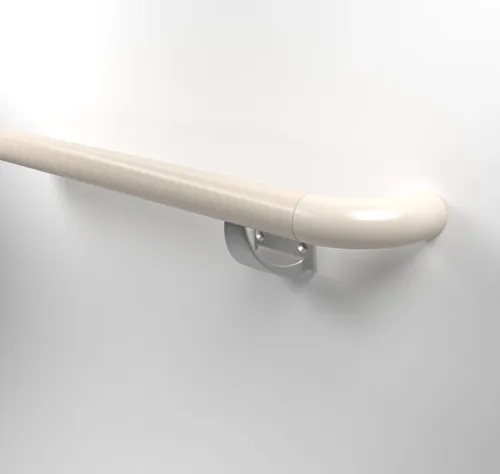

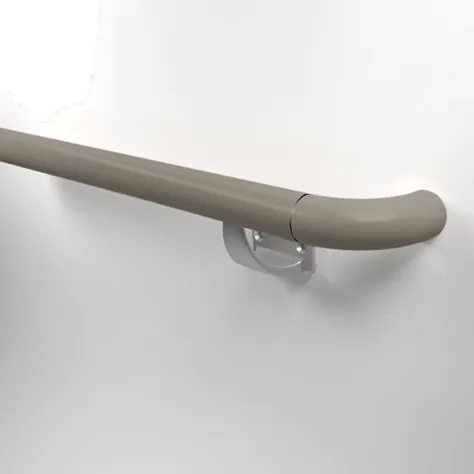

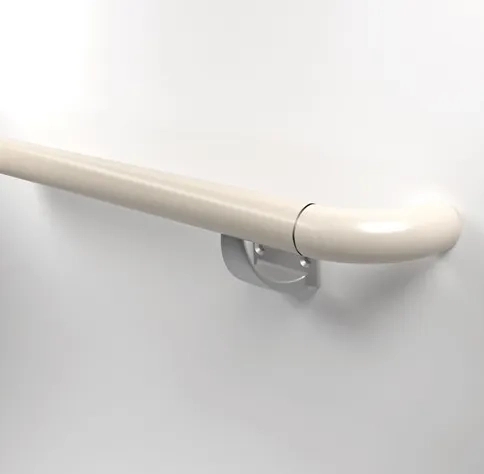

940 series smooth Handrail (MAKE IN INDIA)

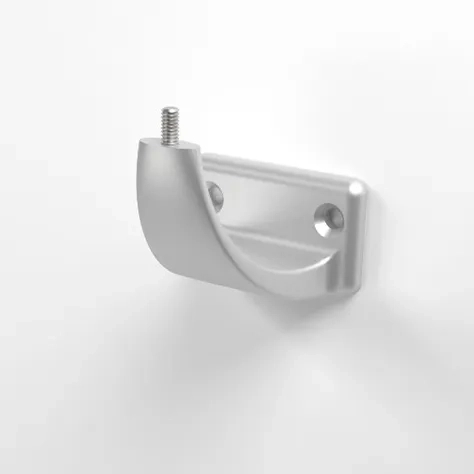

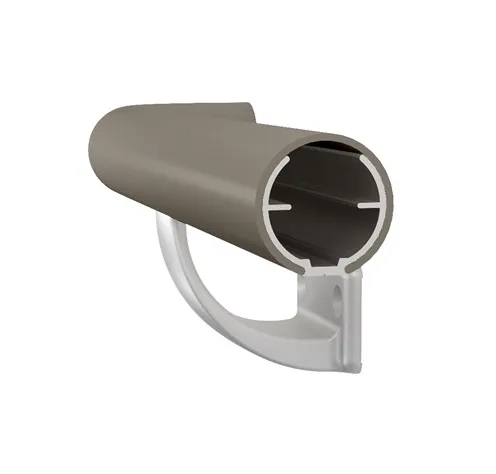

having Vinyl: Snap-on covers of .080" (2mm) thickness shall be extruded from chemical and stain resistant unplasticized polyvinyl chloride (uPVC) with the addition of impact modifiers. No plasticizers shall be added (plasticizers may aid in bacterial growth) and Continuous aluminum retainer of 2mm (.080) thickness shall be fabricated from 6063-T5 aluminum, with a mill fi nish. Dimensions to be of 40mm (1.57") gripping diameter, extends 90mm (3.54") from wall. The system shall resist an Impact Strength of 30.2 ft-lbs/inch of thickness as tested in accordance with the procedures specified in ASTM D-256-90b, Impact Resistance of Plastics. The rigid vinyl shall not support fungal or bacterial growth inaccordance with ASTM G-21 and G-22. The system shall also conform to class A fire rating and ASTM D-543 for chemical and stain resistance. It includes Cast Aluminum Mounting Bracket with anodized finish and molded end returns with black reveal strip.
