Fg Glass Digitecture®

Possibly our most revolutionary product, Fg’s Digitecture® is a range of digital printed glass. You have the power and flexibility to create architectural beauties that capture your imagination on glass. You can print virtually anything on-demand in real-time. With Digitecture®, the future is now!

Product Family :

Digitecture® First : Digitally Printed Clear Glass

Digitecture® Clarity : Digitally Printed Ultra-Clear Glass

Digitecture® Tone : Digitally Printed Tinted Glass

Digitecture® Solar : Digitally Printed Solar Control Coated Glass (Pyrolytic or MSVD Coated)

Digitecture® Pro-1 : Digitally Printed Low-E Coated Glass (Pyrolytic or MSVD Coated)

Digitecture® Pro-2, Pro-3, Pro-4 : Digitally Printed Silver Low-E Glasses (MSVD)*

Technical Specifications :

Process Type : Digitally printed glass through precise electromagnetic controlled drives

Glass Type : Clear, ultra clear, tinted, solar-control coated, low-E coated

Glass Thickness : 3.5 mm to 19 mm (80 mm glass blocks also printable)

Ink Type : Ceramic based inks

Colour Types : Standard RAL shades, metallic (silver, gold), acid-etched, anti-skid

Maximum Resolution : 1440 dpi (dots per inch)

Minimum Printable : Dot Diameter 0.40 mm

Edge Finish : Arissed, rough ground or super polished

Inks Make : Tecglass, Spain

Compressive Stress (Surface) : 30 MPa to 52 MPa (4,300 Psi to 7,500 Psi) - Heat-Strengthened

Compressive Stress (Surface) : 69 MPa (10,500 Psi) minimum - Fully Toughened

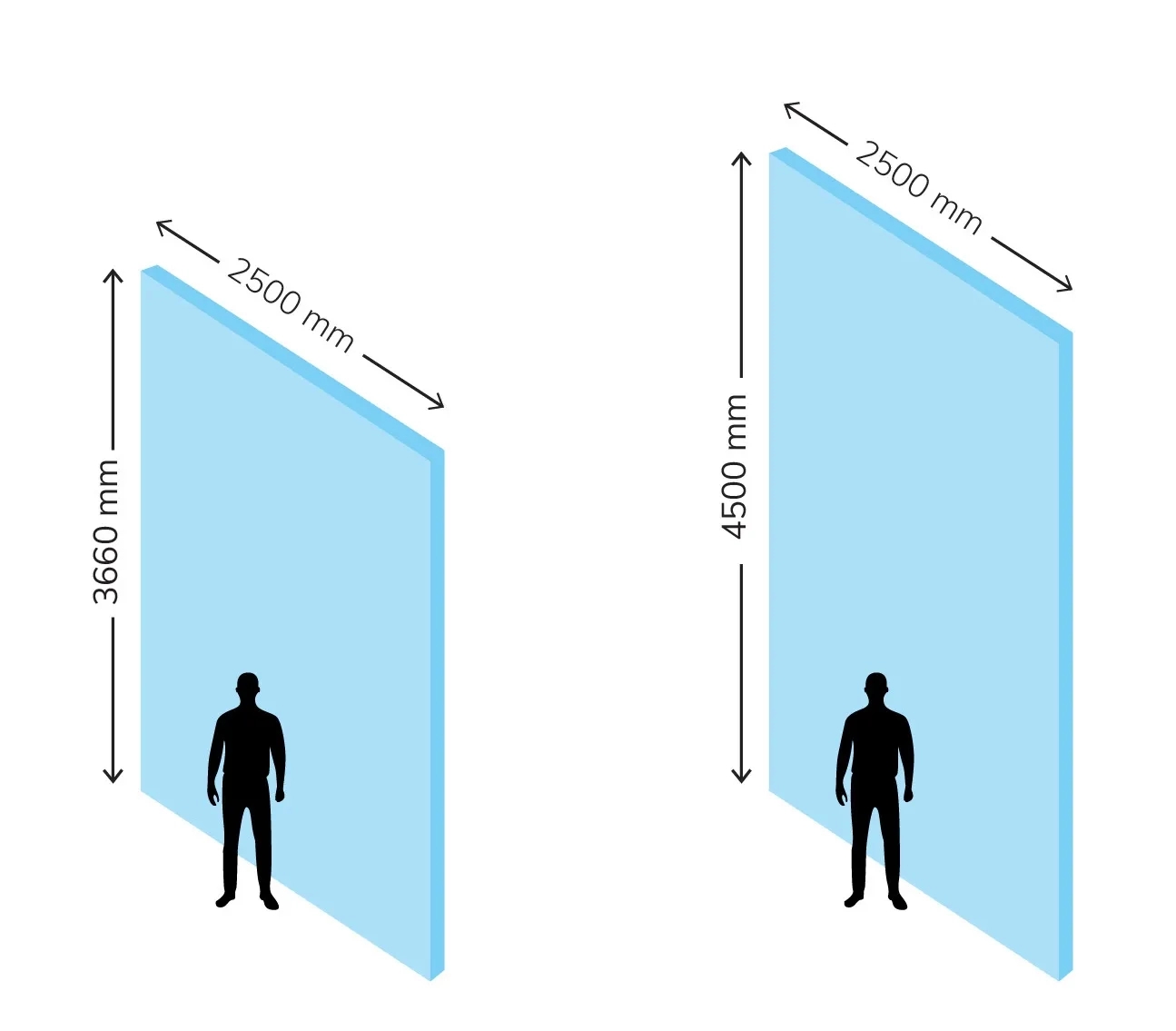

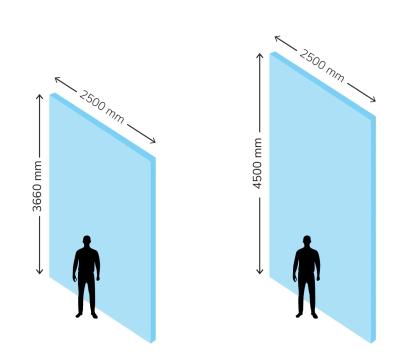

Dimensions :

Minimum Size : 200 mm x 300 mm

Maximum Size : 2500 mm X 3660 mm (4 mm and 5 mm)

2500 mm X 4500 mm (6 mm and above)*

Refer Catalogue for more Information
