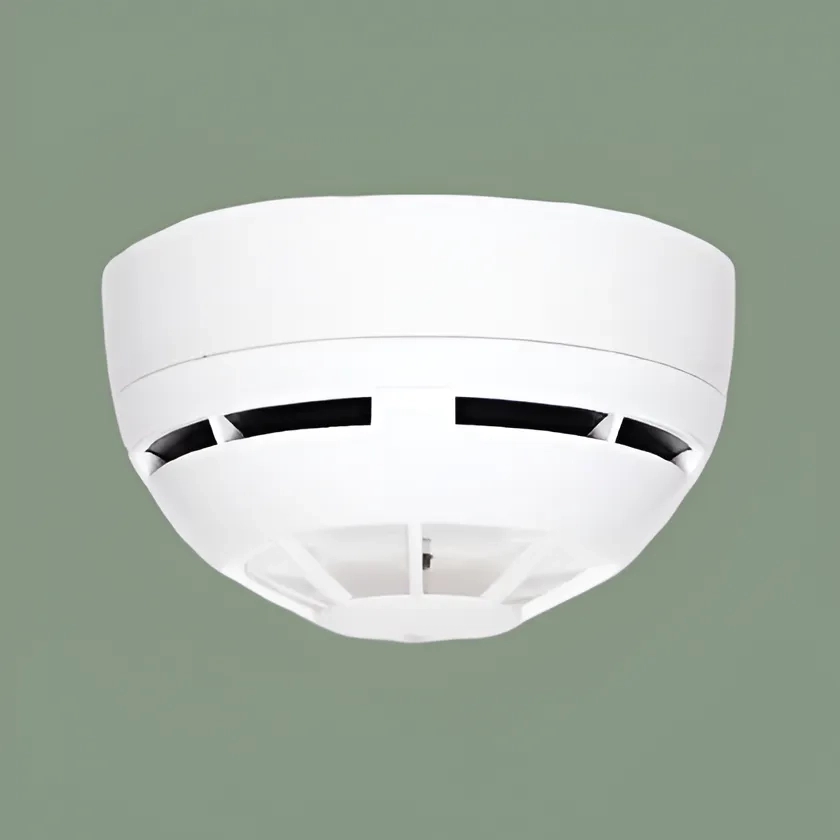

Ceasefire Class-B-Heat-Detector-(TI-002267)

Key Features :

Designed and tested as per EN54-5, Certified by LPCB

Colour options available

1 year product warranty

Central LED for 360° visibility

Low profile design

Programmable flashing LED function

Type : Conventional

Model : TI-002267

Alarm Temperature : 78oC (Class BS)

Operating Voltage : 10-30V DC

Standby Current Consumption at 24V : 90µA @ 24V DC

Max. Alarm Current Consumption : 40mA

Max. Remote Output Current : 18mA

Ambient Temperature : -10°C to +55°C

Relative Humidity : 95% (non condensing)

Dimensions (Diameter x Height) : 110mm (Ø) x 54mm (depth)

Standard : EN 54-5

Certification/Approval Authority : LPCB

Protection Class : IP40

Product Warranty : 1 Year Warranty
