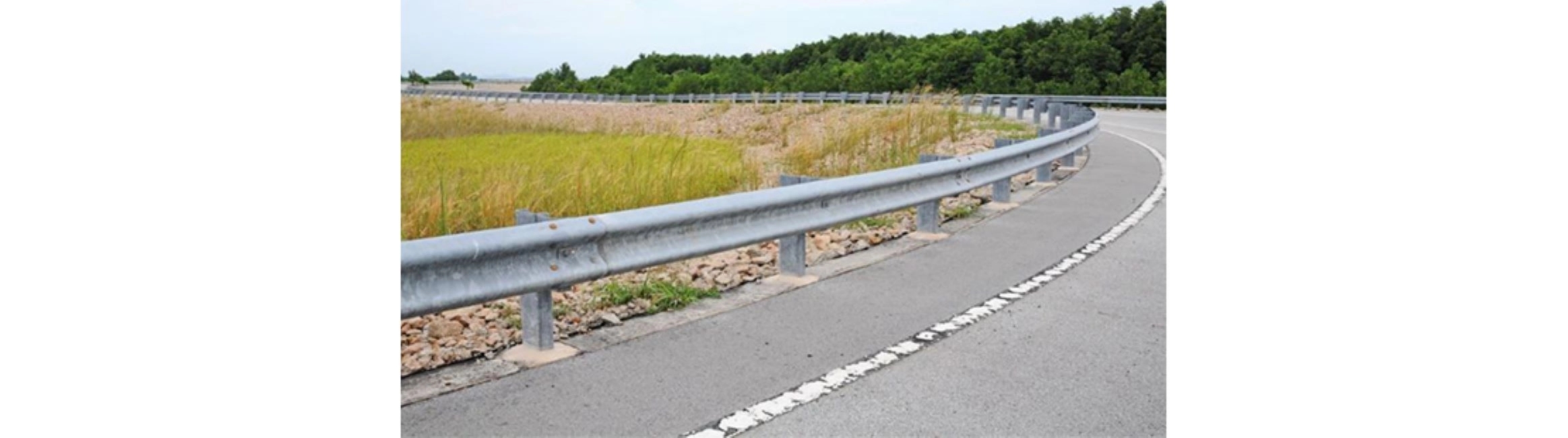

Kismat W-Beam Road Barriers

Metal Crash barriers are road safety systems that ensure high resistance to impact through flexible beam action, minimizing vehicle speed and boosting driver confidence. Kismat EngiTech LLP is a leading manufacturer and supplier of Metal Beam Crash Barriers (MBCB), offering W-Beam and Thrie-Beam types. Our products are manufactured using Cold Roll Forming Technology with multiple roll forming stations, enabling high productivity, quality, and accuracy.

W-Beam Structural Elements :

Process Methods: Cold Roll Forming, Piercing, Shearing, Profile Bending, Hot Dip Galvanizing

Sizes/Ranges:

W-Beam : L 4318 x W 312 x H 81 x T 2.50 to 3.0 mm

End Section : L 736 x W 312 x H 81 x T 2.50 to 3.0 mm

Post : L 1100 to 1800 x W 150 x H 75 x T 4.50 to 5.0 mm

Spacer : L 330 to 360 x W 150 x H 75 x T 4.50 to 5.0 mm

Bolts & Nuts : M16 x P 2.5 x L 40m (Hex/Button head)

Raw Materials Specifications:

W-Beam/End Section: HR Sheet T 2.50 to 3.0 mm as per IS:1079 HR3 / IS:2062 E-355 A

Post & Spacer: HR Sheet T 4.50 to 5.0 mm as per IS:2062 E-355 A

Bolts & Nuts: M16 as per IS:1367 / 136 (Hex/Button head)

Hot Dip Galvanized: As per IS:2629 (550 g/m²)

Note: Specification of raw materials and surface finishing can be customized to client's needs.
