FG Glass Curveshield

Aesthetically superior to straight glasses, our Curveshield™ panels are manufactured on a state-of-the-art cylindrical bending system that is controlled by a millimetre-precise integrated gear system. Our process ensures an even radius through the width of the glass. The heating process is controlled by our high-powered top-and-bottom convection heating system that can treat even the most advanced coatings available. These curved panels are available in fully tempered, heat-strengthened, and heat-soaked variants. They can also be insulated and laminated, offering phenomenal flexibility in design and form.

Product Family :

Curveshield™ First : Clear Glass

Curveshield™ Clarity : Ultra Clear Glass

Curveshield™ Tone : Tinted Glass

Curveshield™ Solar : Solar-Control Coated Glass (Pyrolytic or MSVD Coated)

Curveshield™ Pro-1 : Low-E Coated Glass (Pyrolytic Coated)

Curveshield™ Pro-2, Pro-3, Pro-4 : Silver Low-E Glasses (MSVD)*

Technical Specifications :

Process Type : Horizontal Roller-Hearth Convection Furnace

Glass Types : Clear, Extra Clear, Ultra Clear, Tinted, Solar-Control Coated, Low-E Coated

Additional Process Compatibility : Ceramic-Frit, Digitecture™ Digital Printing, Sand-Blasting, Acid Etching, Holes, Cutouts, and Notches

Product Enhancement : Can Be Converted To Climacool™ (Insulated Glass), Lamisecure™ (Laminated Glass), Bulletshield™ (Bullet-Resistant Glass), And Burglarshield™ (Burglar-Resistant Glass)

Glass Thickness : 5 mm to 19 mm

Edge Types : Rough Grind, Arrissed, Super Polished

Compressive Stress (Surface) : 30 MPa to 52 MPa (4,300 psi to 7,500 psi) – Heat Strengthened; 69 MPa (10,000 psi) minimum – Fully Toughened

Emissivity : Minimum 0.01**

Dimensions :

Minimum Size : 800 mm (W) X 600 mm (H)

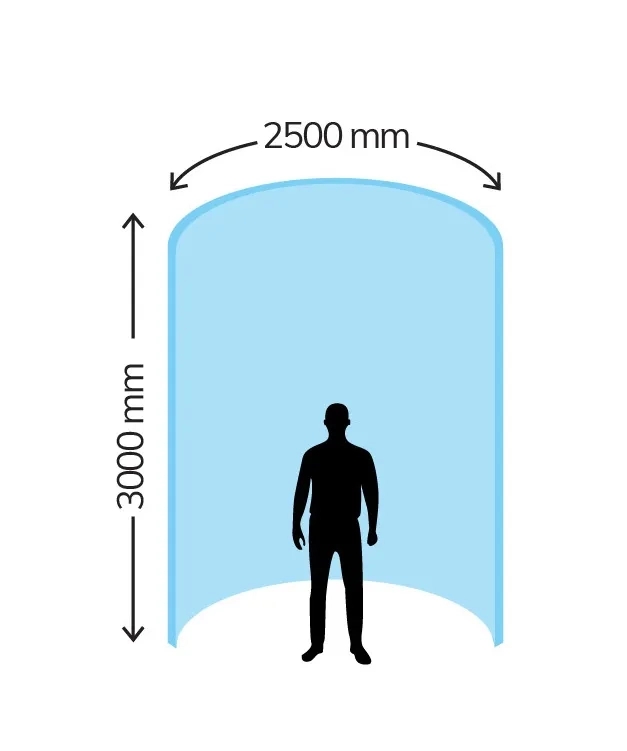

Maximum Size : 2500 mm (W) X 3000 mm (H)

Minimum Bending Radius : 1000 mm (5 mm to 8 mm)

1800 mm (10 mm)

2500 mm (12 mm and 15 mm)

3000 mm (19 mm)

Refer Catalogue for more Information
