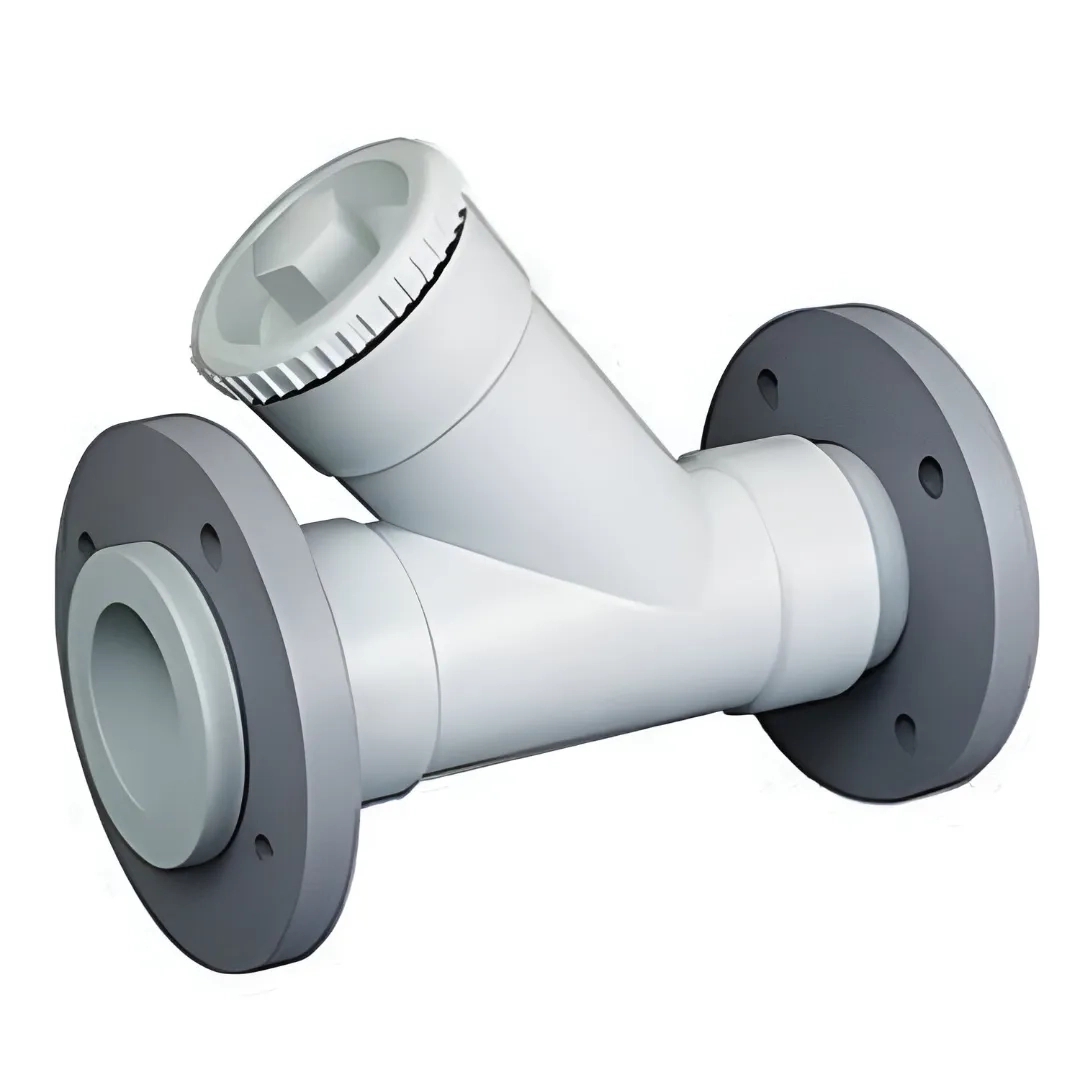

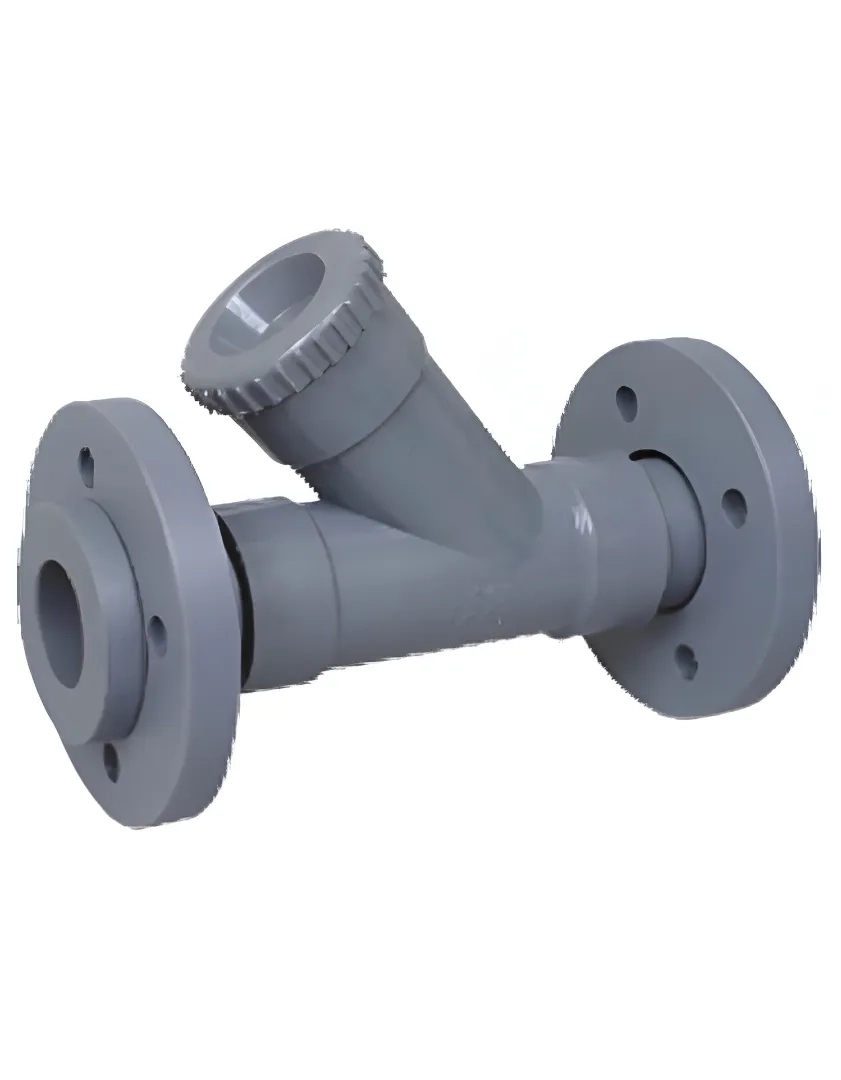

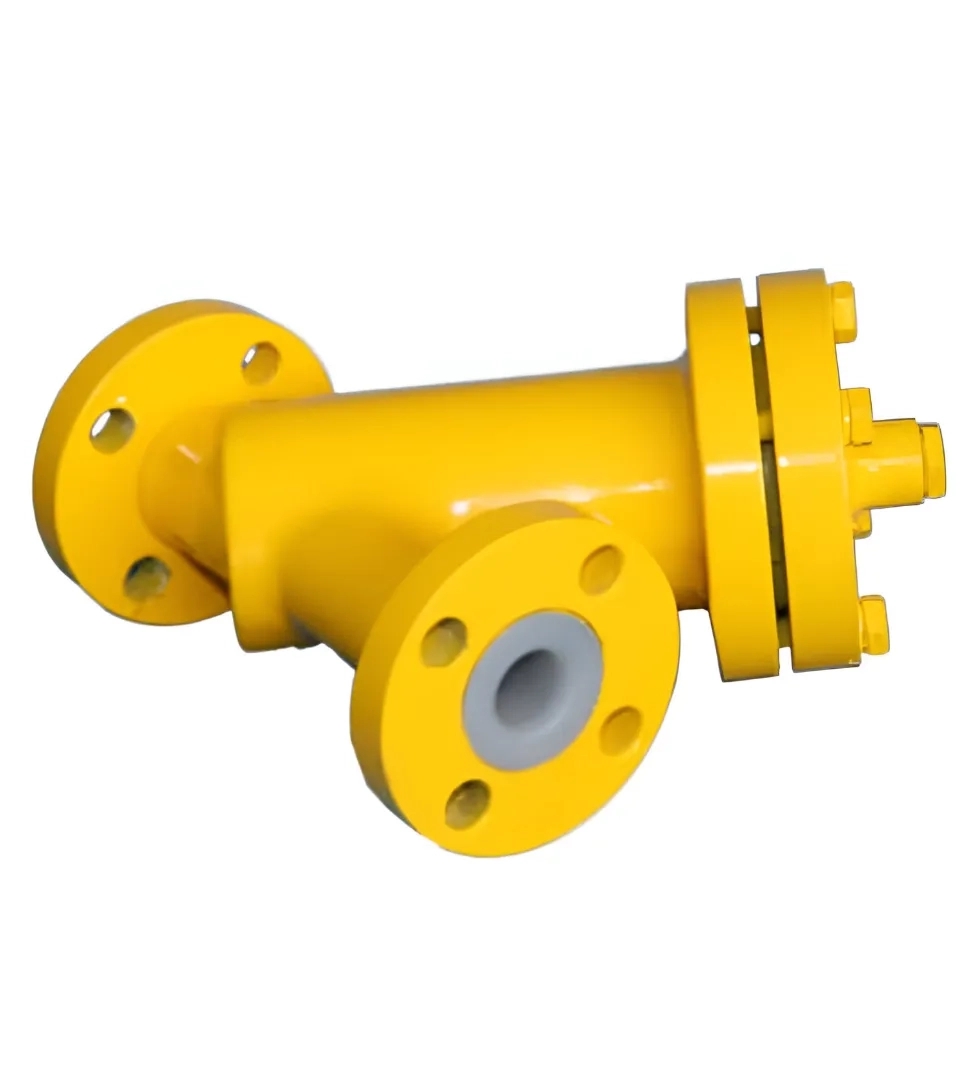

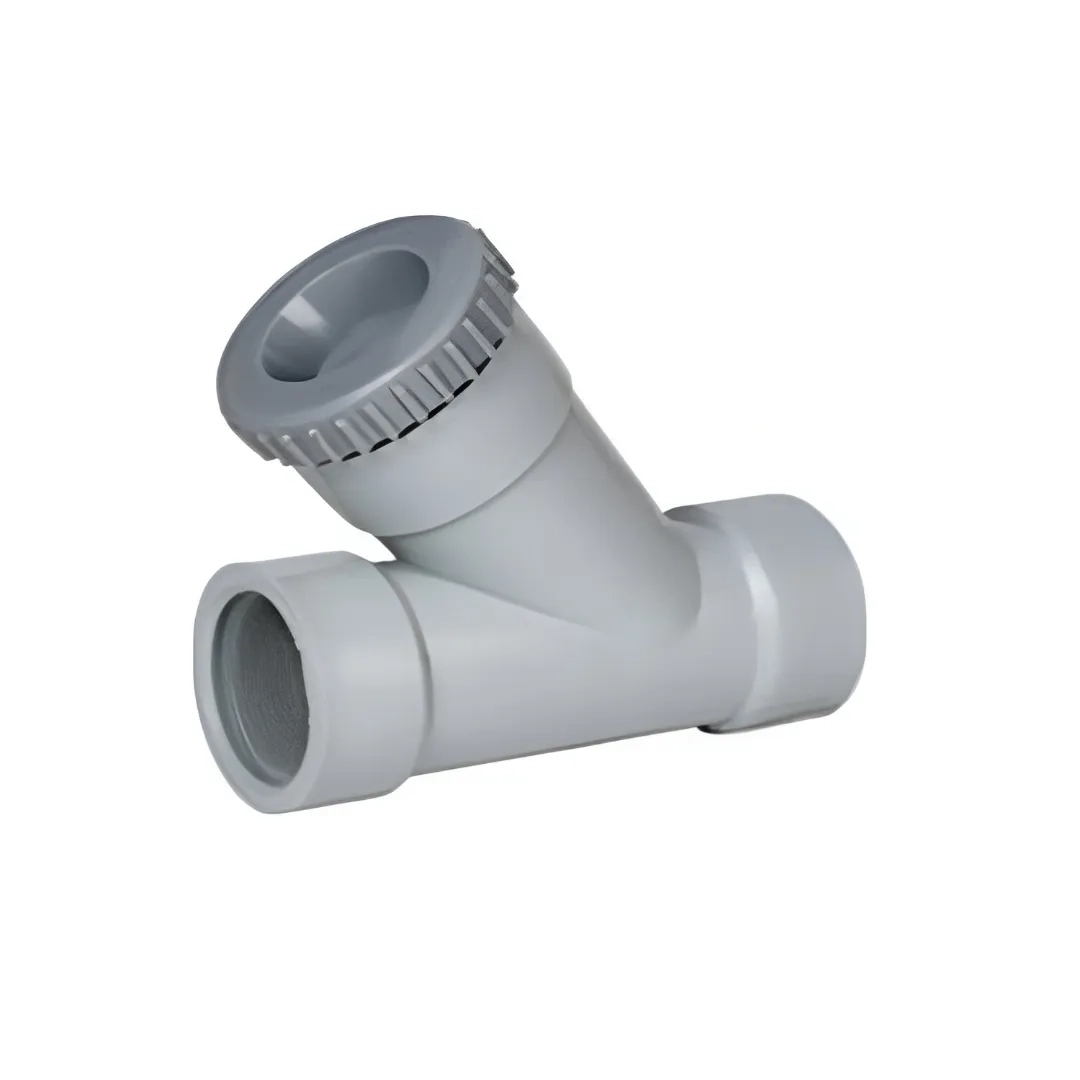

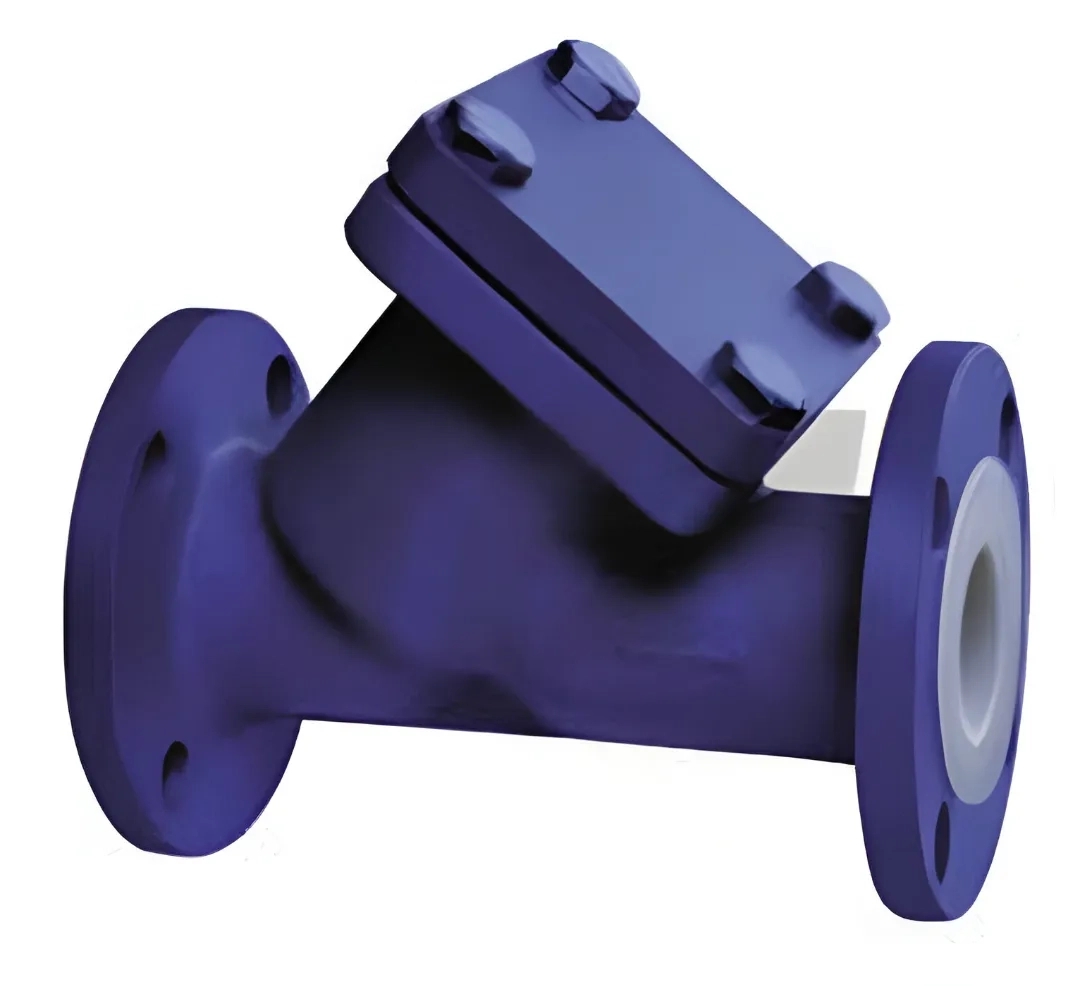

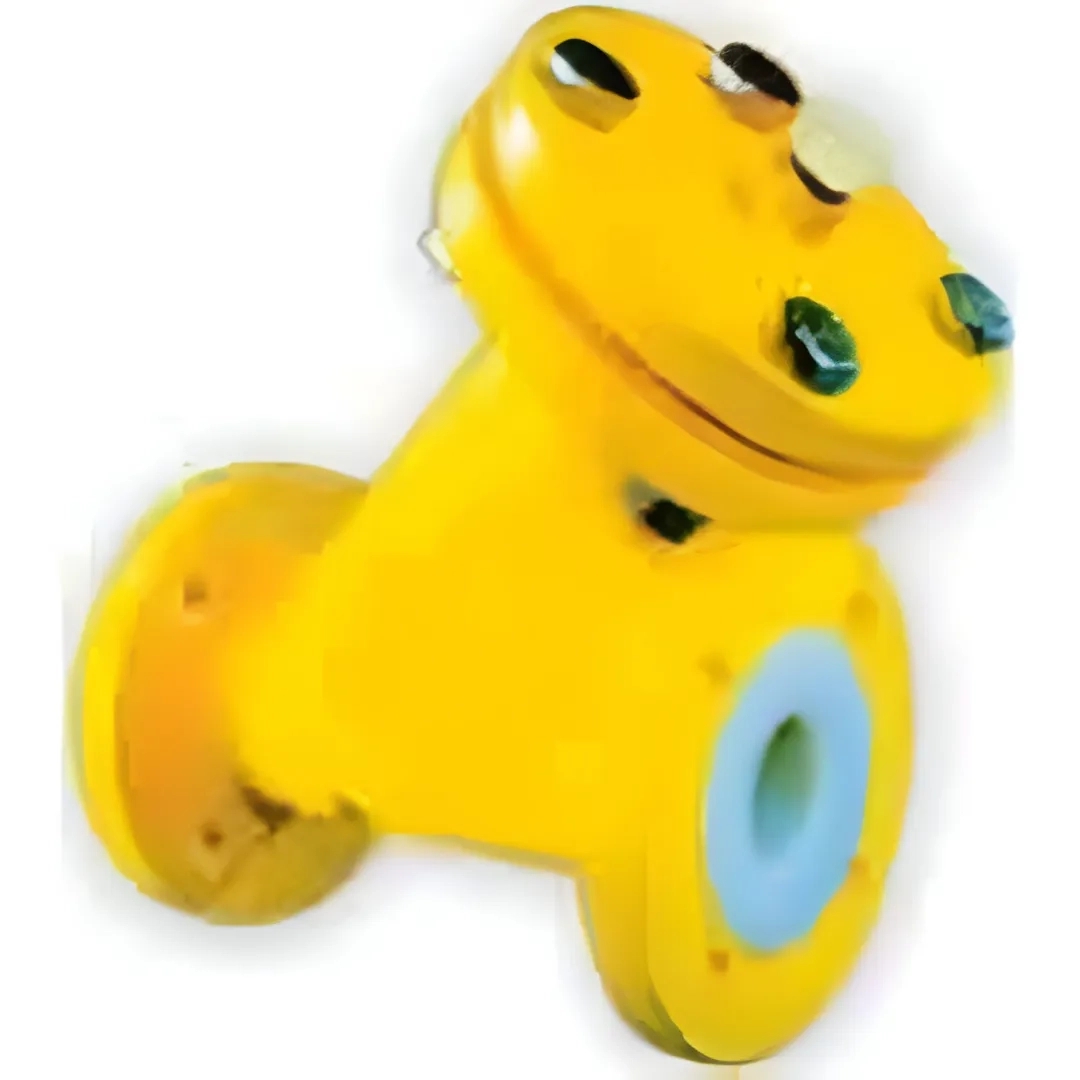

Swami Plast Industries Y Type Stainer

Y Type Stainers are devices for mechanically Removing solids from Folllowing Liquids or gases by means of a perforated or wire mesh straining element . They are used in pipe lines to protect equipment such as pumps , meters , control valves , stream straps ,& regulators.

Feature : Low pressure drop streamlined design

Large strainer screens

Compact end to end dimension

Fabricated Construction

Applications: Steam, liquid, gas and oil service

Power industry

Pulp and paper

Chemical industry

Process Equipment

Metal & Mining

Water & Waste Water

Standard Size of Y Type Stainer :½" ( Inch ) to 24 " ( Inch ) Fabricated - Custom sizes to meet any Requirements.

End Connections: Flange Type , Thread Type , Socket Type , But weld Type

Screen Opening: 3 Mesh to 100 Mesh.

Temperature Range: 20° C to 250° C

Range of Material: Polypropylene , Polyethylene , FRP , PVC , CPVC , PVDF , MS FRP Lined , MS PP Lined , MS HDPE Lined ,MS PVDF Lined , PTFE Lined.
