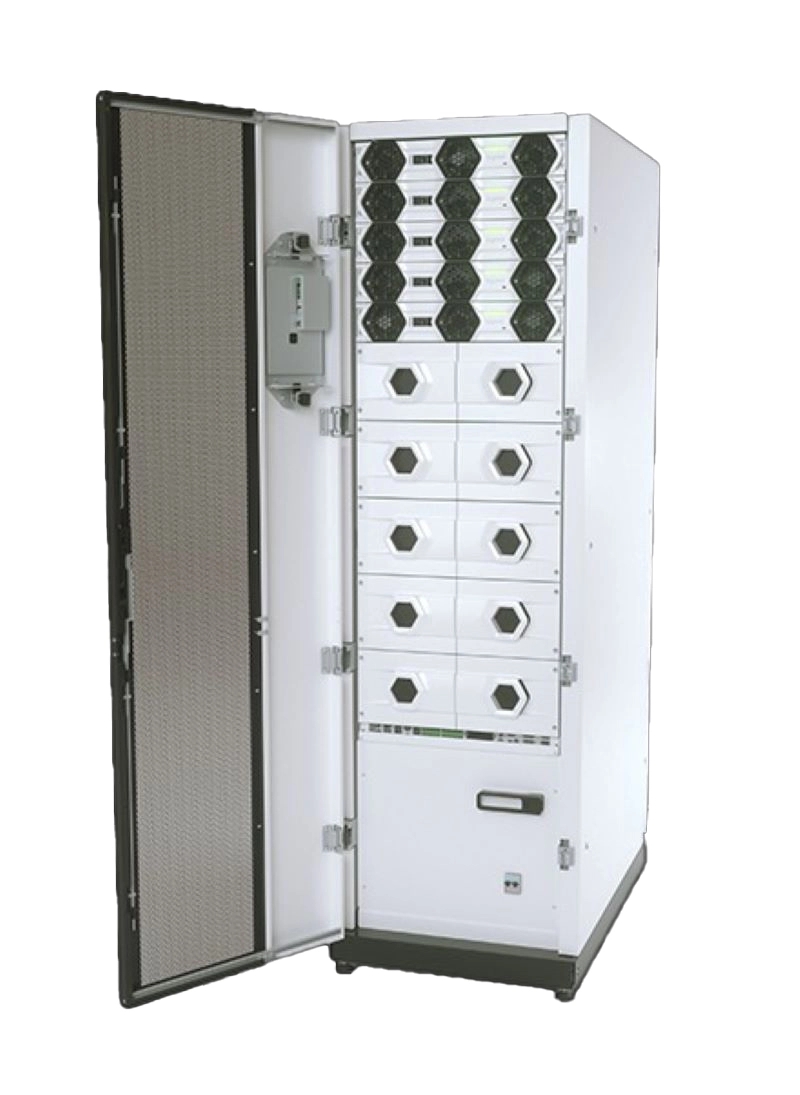

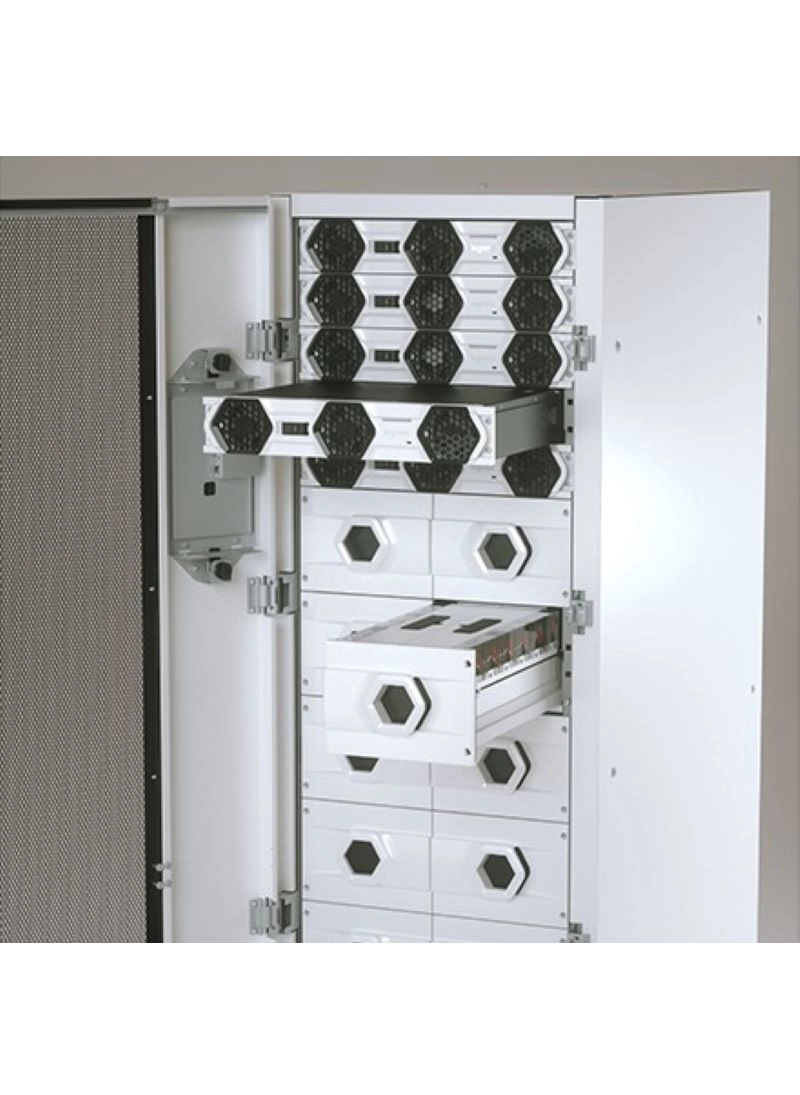

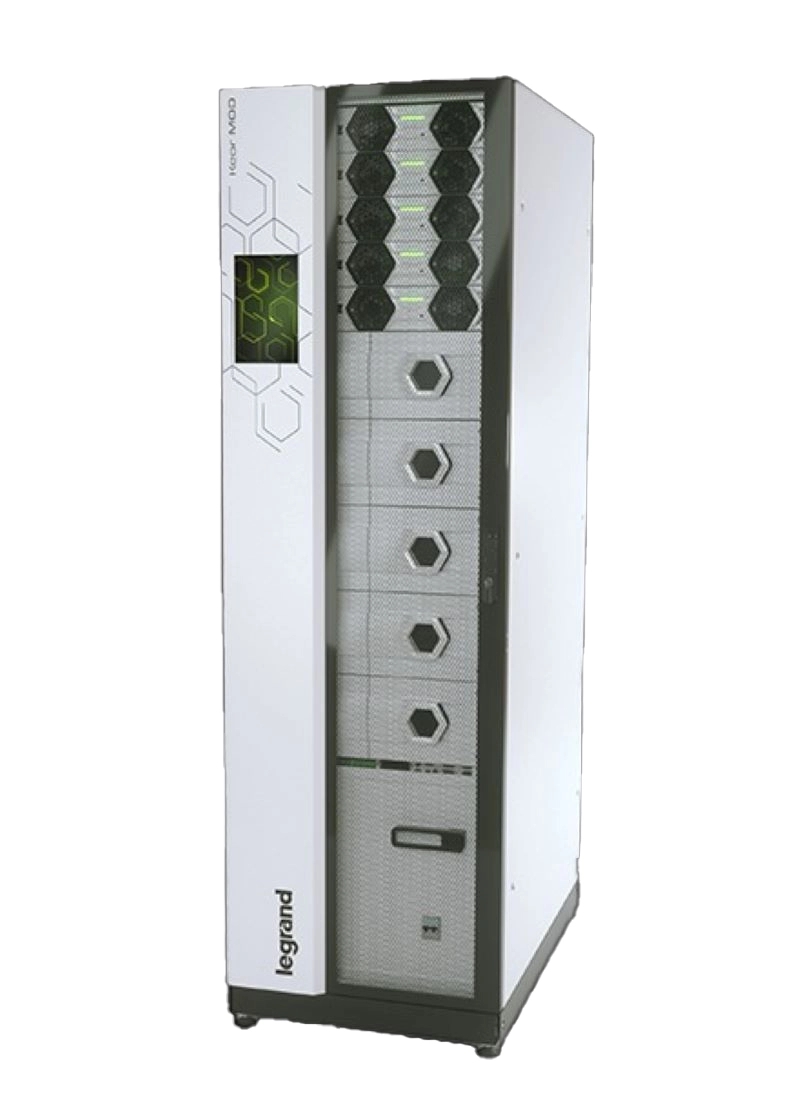

Numeric Modular Three Phase UPS Keor MOD 125 kW

Keor MOD is a Three Phase UPS with a scalable modular architecture that provides N+X redundancy. Each unit can be connected in parallel to identical or different units upto 600 kW. The 10” touch screen display that can rotate inwards by 180° is equipped with interactive icons to provide a simplified control panel. Keor MOD features complete front electrical access and wide selection of communication interfaces for enhanced UPS management

Model:Keor MOD

Rating:125 kW

DC Volts:528 - 624 V

Dimension (mm):600 x 970 x 1990 (W x D x H)

Cabinet weight (kgs):256

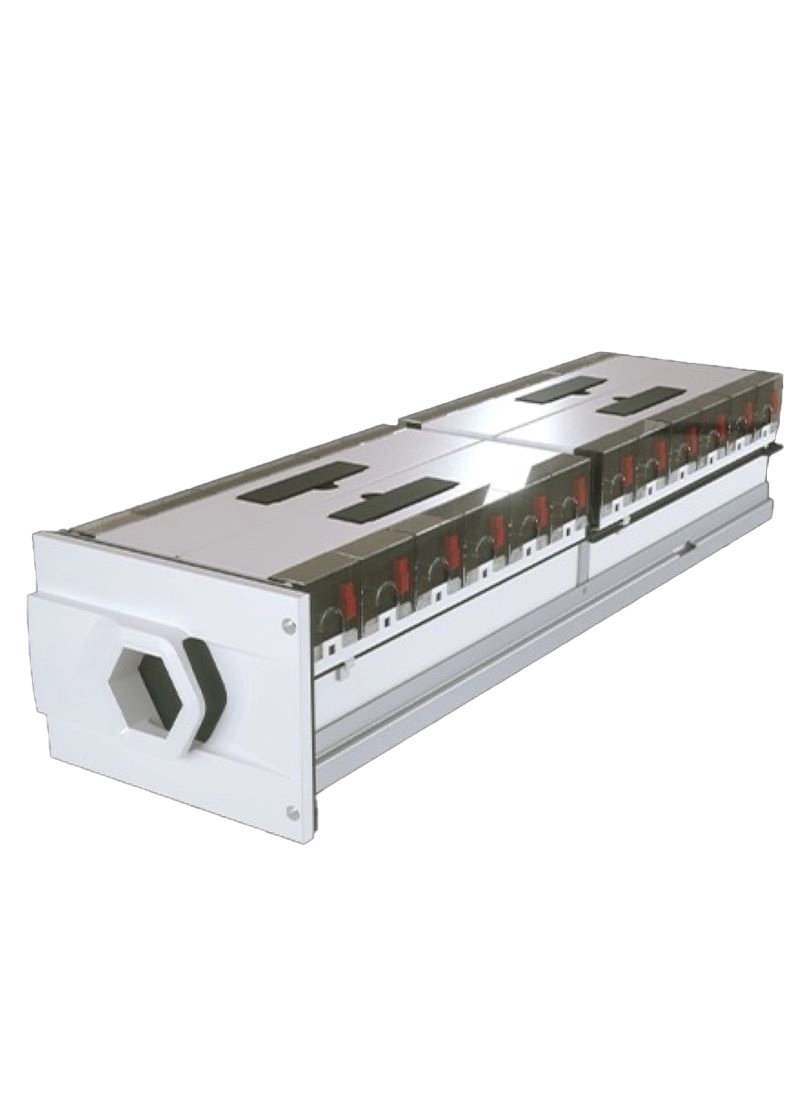

Power module (kgs):

Segments:Healthcare

Retail

BFSI

Office

Education

IT & Ites

Warehouse & logistics

Small & Medium Data Center

Generic Features:

Just two cabinet configurations (125 kW & 250 kW)

Parallelable upto 600 kW

Internal battery backup option in 125 KW

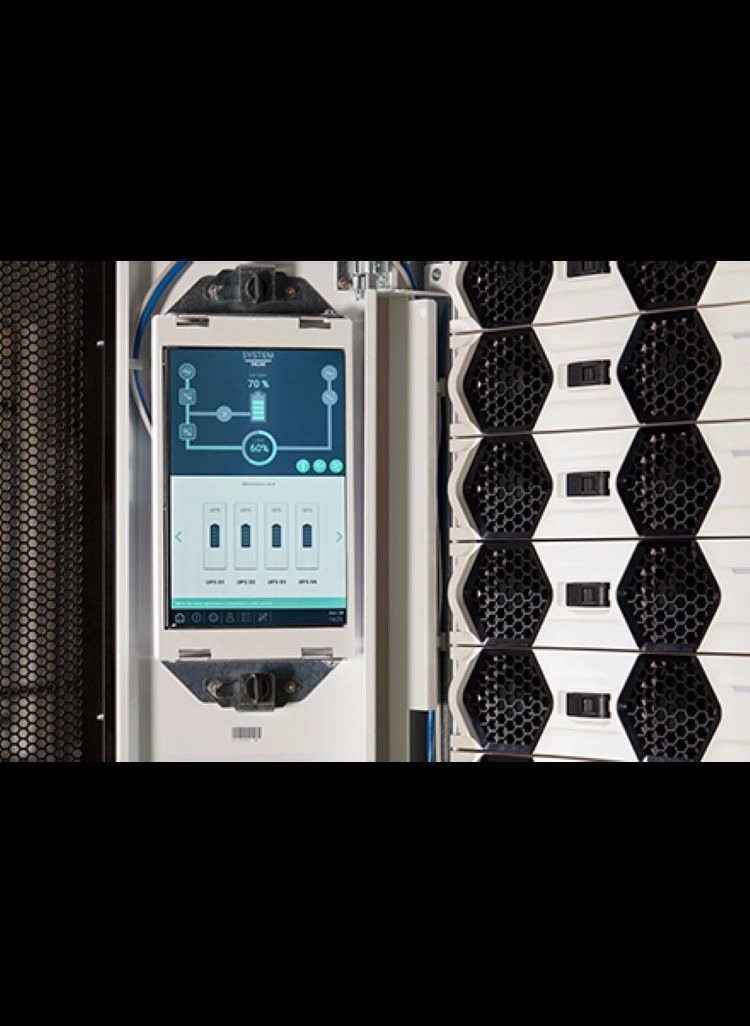

Rotating 10" touch screen display

Quick battery recharge

Double conversion efficiency up to 96.8% (power module efficiency)

Efficiency in ECO mode > 98%

Output power factor = 1

Modular redundancy in N+1 configuration

Refer Catalogue for more information
