SI Surgical X-ray & Digital Radiography - Image Intensifier

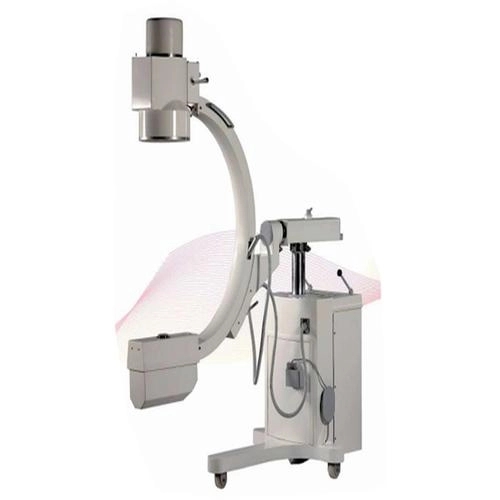

High Efficiency C-Arm Machine

Technical Specifications :

Anode Type : Stationery, Rotating

Frequency : 40 Khz, 40 Khz

Power : 3.5 Kw,6.3 Kw

Radiography Mode :

Kvp Output : 40 to 100 Kvp,40 to 110 Kvp

mA Output : upto 50 mA, upto 80 mA

mAs Range : 0.5 to 250 mAs, 0.5 to 250 mAs

Fluoroscopy Mode :

Kvp Output : 40 to 100 Kvp,40 to 110 Kvp

mA Output : 0.5-3 mA , 0.5-4 mA

Fluoro Timer : 0 to 5 min cumulative timer with buzzer, 0 to 5 min cumulative timer with buzzer.

X-Ray Tube :

Focal Spot : 0.6/1.0 mm, 0.3/0.6 mm

Image Intensifier : 9" Triple field, high gain, low dose image intensifier tube

Camera : High sensitivity, low noise CCD camera

Monitor : Two 17" imported Monochrome monitors with high density & low noise

Memory : 100 frames image storage memory, with full function remote control. Digital rotation throughout 360°.

Safety Precaution : Temperature sensor to cut off exposer after over heating of X-ray Tube head

Power Requirement : Single Phase, 230 VAC 10% 50 Hz, Standard 15 Amp plug socket

Optional : IMS Image Management System with PC with 1 kX1k Camera
