Calculated physical quantities:
Dew point temperature
Frost point temperature
Absolute humidity
Mixing ratio
Wet bulb temperature
Water vapor partial pressure
Specific enthalpy

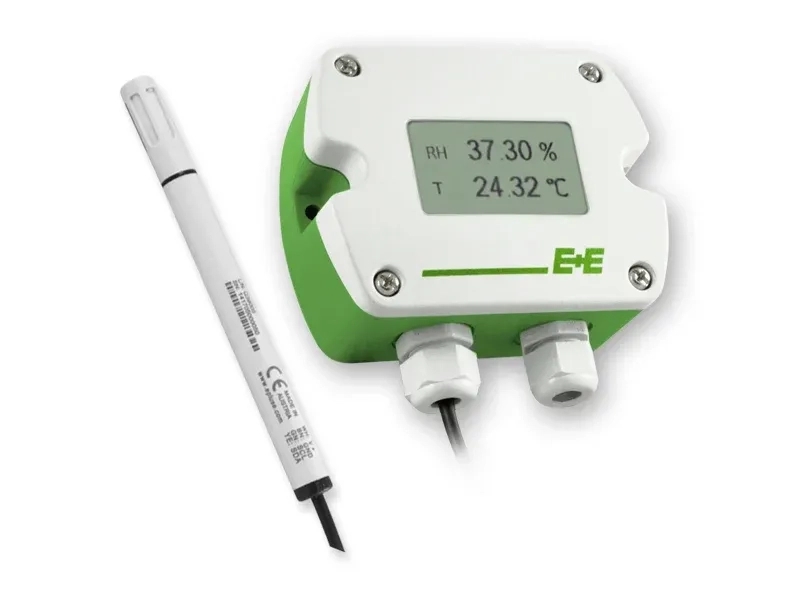

Wall, duct and remote probe versions
Voltage and current analogue outputs freely configurable by the user
BACnet MS/TP or Modbus RTU Interface
Optional Display
High accuracy
Measuring range Humdity : 0...100% RH
Accuracy Humdity : -15...40 °C <90% RH ±(1.3+0.003*mv)% RH
-15...40 °C >90% RH ±2.3% RH -40...60 °C ±(1.5+0.015*mv)% RH
Measuring range Temperature : -40...80 °C (-40...176 °F)
Accuracy Temperature : ±0.2 °C (0.34°F)
Analogue outputs : 0-5/10 V or 4-20 mA
Digital output : BACnet MS/TP or Modbus RTU
Supply : 24V AC/DC
Typical Applications :
Agriculture
Stables, hatchers, incubators
Greenhouses
Storage rooms, cooling chambers
Swimming halls
Refer Catalogue for more information
