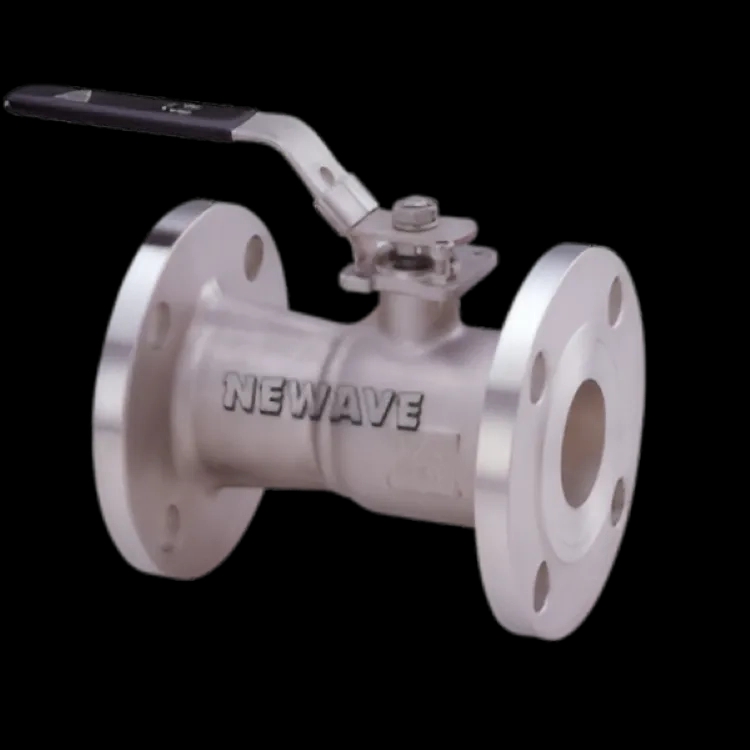

Newave 1-Piece Ball Valve

Engineered for simplicity and efficiency, our 1-Piece Ball Valve feature a compact design with the ball and body integrated into a single piece. This streamlined construction minimizes potential leak points and enhances structural integrity, making these Valve ideal for applications where space is limited or weight considerations are critical. With easy installation and maintenance, our 1-Piece Ball Valve offer reliable performance and cost-effective solutions for a wide range of industrial applications.

Testing Standard : API 598/ BS 6755 [BSEN ISO 12266] Face To Face : ASME B.16.10 / API6D /DN End Connection : Flanged End - ASME B 16.5 Butt Weld End - ASEM B 16.25 Socket Weld End - ASEM B 16.11 Screwed End - BSP / NPT

ANSI B 1.20.1 / ANSI B 2.1 Pressure Rating: ASA 150#, 300#, 600#, 800#, 1500# Material Of Construction: [Body / End Connector Piece]

Cast Iron: IS 2 10 Gr. FG 200

Ductile Iron: ASTM A 536 Grade 65-45-12

Carbon Steel: ASTM A 216 Gr. WCB

Stainless Steel: ASTM A 351 Gr.CFB/BM/3/3M Material Of Construction: [Ball & Pin]

ASTM A 351 Gr. CF8/8M/3/3M

Material Of Construction:

[Stem]

AISI 410 [S.S. 410-13% Cr.Steel]

AISI 304 [S.S. 304]

AISI 316 [S.S. 316]

AISI 304L [S.S. 304L]

AISI 316L [S.S. 316L] Material Of Construction: [Ball Seat/Gland Seal/Stem Seal]

P.T.F.E. Virgin

P.T.F.E. Glass Filled

P.T.F.E. Carbon Filled

Grafoil Size: 15mm To 300mm & Above Modes Of Operation: Manual [Lever/Wheel Operated] Gearing Operated Pneumatically Operated
