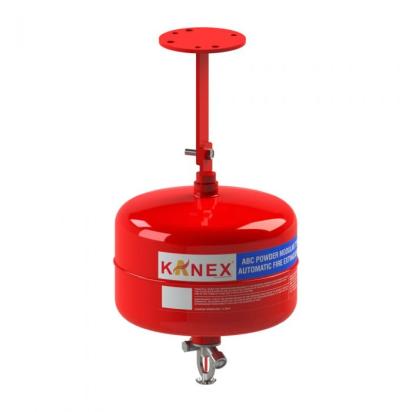

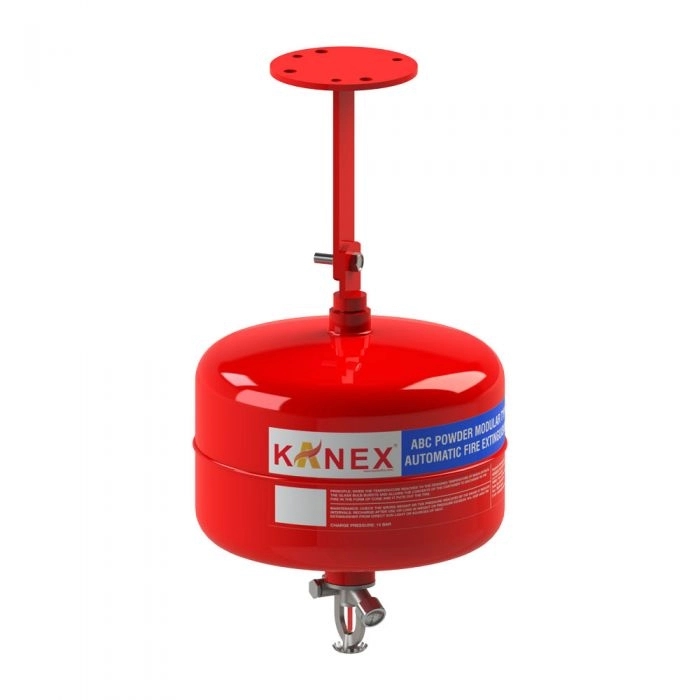

Kanex 5 Kg Automatic Modular Fire Extinguisher (Map 90 Based)

High quality MAP 90% Powder.

Unique gauge testing system (UGTS) mechanism.

Brass chrome plated discharge sprinkler.

Tough Exterior and interior Coating with Pure Polyester (PP) powder.

Automatic Detection and Suppression in a single unit.

Extinguisher shells are 100% factory hydro tested to excess of 35 bar.

Expelling Agent UHP (Ultra High Pure) Grade Nitrogen.

Anti-corrosive Phosphate treated modules.

Provides securities in case of emergencies and power failure without power backup.

Easy as well more economical to maintain, service and re chargeable.

Bar Code labeling for better traceability.

MODEL: KMPRQ-5-90

Capacity: 5 kg

Design: Ceiling Mounted

Height (Approx.): 3754 mm

Diameter (Approx.): 230±10 mm

Average Discharge Time: 6-8 Sec.

Average Discharge: 98%

Operating Temperature: -30 °C to +55 °C

Service/Max. service/Test Pressure: 15 / 35 bar

Expelling Agent: Nitrogen (UHP Grade)

Full Weight (Approx.): 7.6 kg

Empty Weight (Approx.): 2.6 kg

Mounting Bracket: Ceiling mounting stand

Approvals: Any Government approved Lab

Volume Protection: 2-2.5 m 3

Area Protection: 1.5-2 m2

Hanging Height Above Risk: 2 m

Warranty: 5 Years

Refer Catalogue For More Information
