Sumit Surgical N10 Series

N11 Series Electric O.T Table .

N12 Series Hydraulic OT Table(C-Arm).

N13 Series Motorized O.T Table

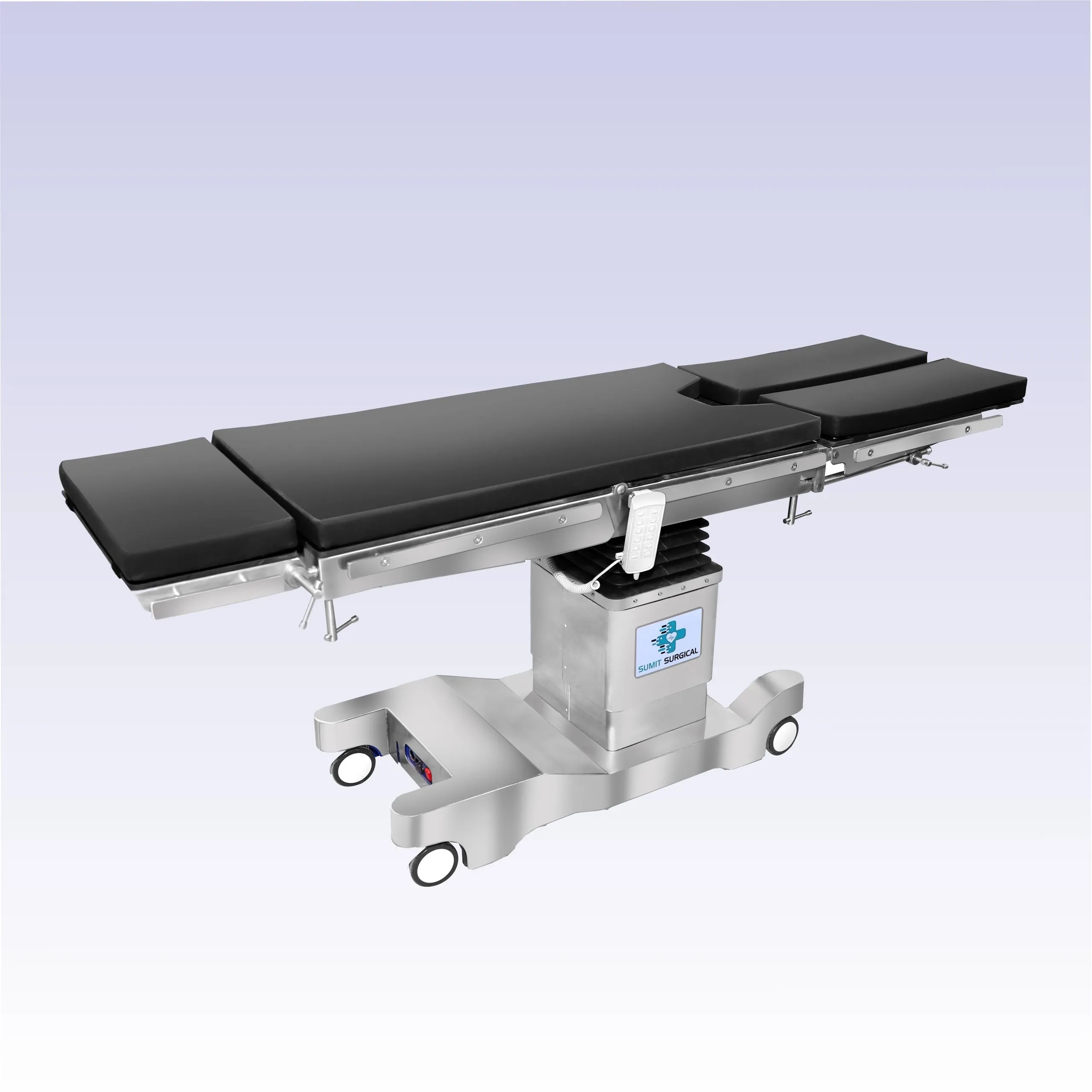

N10 Series

Features :

Fully electrically operated table, five sections, radio-translucent table top with eccentric pillars and Die Compressed base.

Interchangeable head and leg sections (manually).

All positions operated through cable remote.

Inbuilt kidney bridge.

Auto leveling (zero function).

Indication of Battery Back provided in the hand set.

Technical Specification :

Top Dimension : L 1900 mm x W 530 mm

Height Adjustment : 750 mm - 1050 mm

Trendelenburg/Reverse : 30° / 25°

Lateral Tilt : 20° / 20°

Kidney Elevator : 125 mm

Back Rest (up/down) : 80° / 20°

Leg Rest (up/down) : 15° / 90°

Head Rest : 45° / 90°

Power Supply : 24 V DC

Battery Backup : 2-3 Hours (Optional)

Mains Voltage Capacity : AC 220V±10%50Hz

Patient Weight Capacity : 200 Kgs
