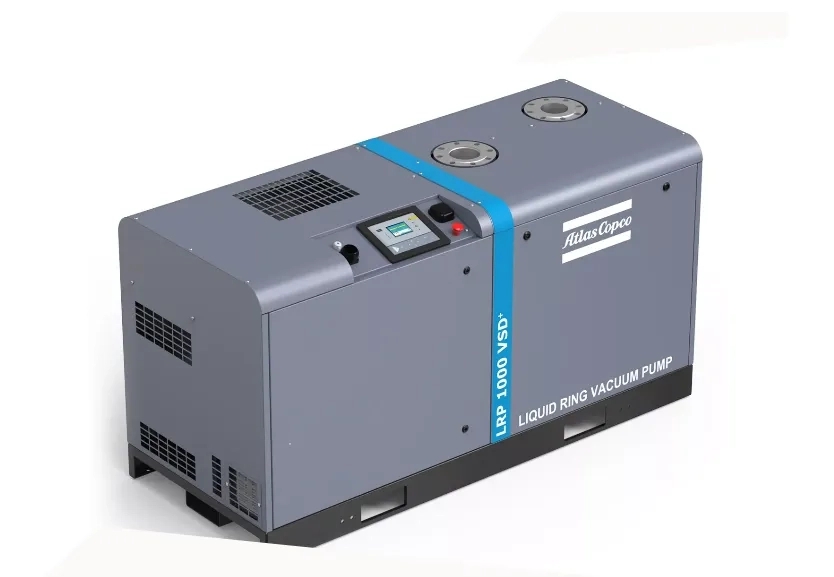

Atlas Copco Intelligent Liquid Ring Vacuum Pumps With Variable Speed Drive

Energy-efficient, low-maintenance vacuum solutions for wet and humid applications

he LRP VSD+ intelligent liquid ring vacuum offers superior vacuum performance and connectivity. It provides optimum energy efficiency along with low operational and maintenance costs. Its ease of use, integration into existing processes and centralization capabilities make this a truly unique liquid ring vacuum pump.

With a small footprint, the LRP VSD+ is delivered in a single neat enclosure.

Equipped with Atlas Copco’s MkV Elektronikon® controller as standard, the LRP VSD+ has a comprehensive in-built vacuum management system. Elektronikon® is a user-friendly monitoring system that can integrate to your plant management system for full pump and vacuum process control and provides feedback on pump operating status, operating history, set point control and inlet conditions.

Total Recovery (Standard)

A closed loop system that can also be of benefit when the seal fluid is in short supply or when contamination may be a problem.

Total Recovery (Stainless Steel)

Suitable for applications involving chemicals or more corrosive agents and is ideal for deal for harsher applications.

Once-through with Proportional Valve

Proportional valve allows the service liquid supply to be perfectly matched to the process with minimum service liquid consumption.

Once-through with Centrifugal Pump

Centrifugal pump with VSD control brings reliable supply of sealing water flow under required service liquid pressure without extra pressure from external piping system.

Shell & Tube

More resilient against contamination and allowing the vacuum system to operate in more challenging conditions such as poor water quality

Weather Resistant

Intended for use in outdoor and semi-outdoor installations, the weather resistant variant offers higher pump protection against moisture and rainwater.

The LRP 700-1000 VSD+ is ideally suited for tough, wet and humid applications with liquid and solid carry over:

Food processing :

Cheese

Milk evaporation

Bottling

Fruit processing

Poultry and meat evisceration

Plastic extrusion :

Sterilization

Evaporation

Filtration

Drying

Conveying

Rubber vulcanization and forming

Expanded polystyrene forming

Refer Catalogue for More Infomation.
