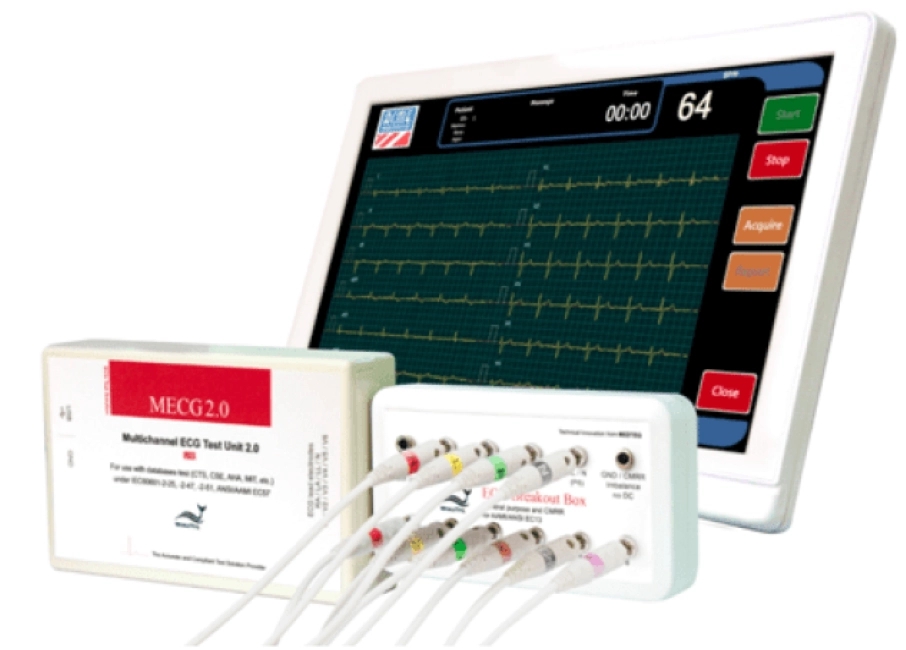

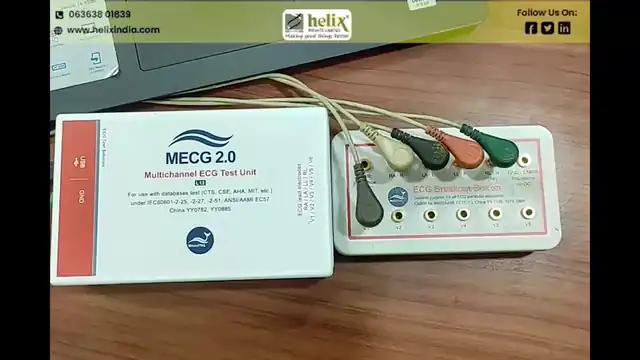

Helix MECG 2.0 - Multichannel ECG Test System

ECG database generator for Diagnostic and Ambulatory ECG – Support IEC60601-2-25, -2-47 and AAMI EC57 database tests – Embedded CAL, ANE, Biological, NST waveforms – Allows to upload and playback AHA, MIT, and CU format directly

Key Specification: Compact design

Test circuits meeting the standards' requirements

Superior shielding and grounding designs

Custom built transformer to supply the required 20Vrms

Double shield construction built

Other Functions: Sine, triangle, 100ms pulse waveforms, variable frequency up to 150Hz (sample rate 1kHz)

Calibration mode (0.1Hz squarewave

Physionet compatibility: Format 16 and 212 (without oversampling such as Format 212×4)

Direct download from Physionet website (user does not need seperately work with the Physionet files)

Built in test waveforms: CAL waveforms (16x)

ANE waveforms (3X)

Biological waveforms (100x)

Noise waveforms (as requires by IEC 60601-2-51:2003)

Refer brochure for more information
