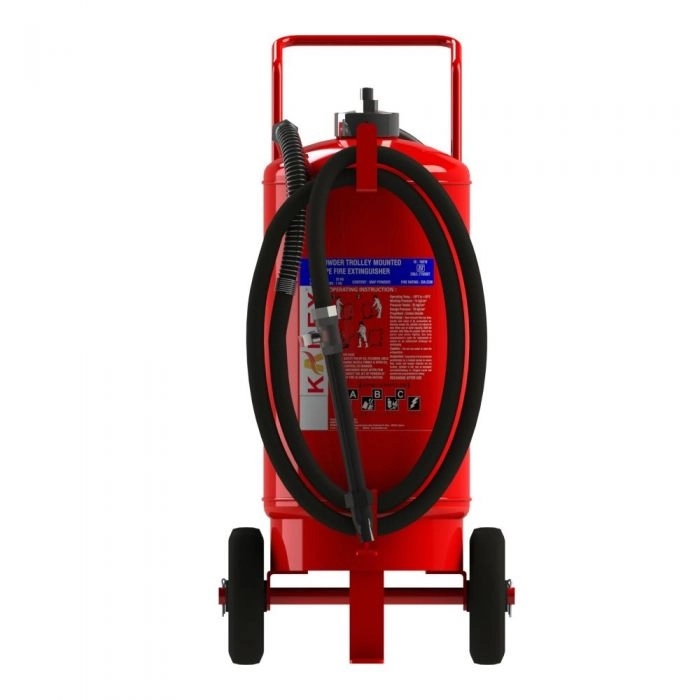

Kanex 75 Kg Abc Fire Extinguisher (Map 50 Based Mobile)

l Conformity to IS 16018:2012

l BIS Approved and ISI marked

l Hydraulically tested as per standard and passed through anti-corrosive treatment

l High quality Pure Polyester (PP) powder coating (UV Resistant)

l Brass caps, drain plugs, ball valve conforms to IS:319

l Aluminum alloy nozzle conforms to IS:617

l Controllable discharge

l Easy to maintain, recharge & service

l PVC braided discharge hose

l MAP Mono Ammonium Phosphate 50% dry chemical powder confronts to IS 14609 capable of fighting against class A, B, C & Electrically started fires.

MODEL: KFDRQ-75-50%

Capacity: 75 kg

Design: Hose & Nozzle

Fire Rating: 20A:233B

Height (Approx.): 1030 mm

Diameter (Approx.): 400 ±10 mm

Average Discharge Time: 51 Sec

Average Range of throw: 8 m

Average Discharge: 93.5%

Operating Temperature: -30 °C to +55 °C

Service/Max. service/Test Pressure: 15 / 18 / 35 bar

Expelling Agent: Co2

Full Weight (Approx.): 150 kg

Empty Weight (Approx.): 75 kg

Approvals: BIS

Warranty: 5 Years Warranty

Refer Catalogue For More Information
